AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

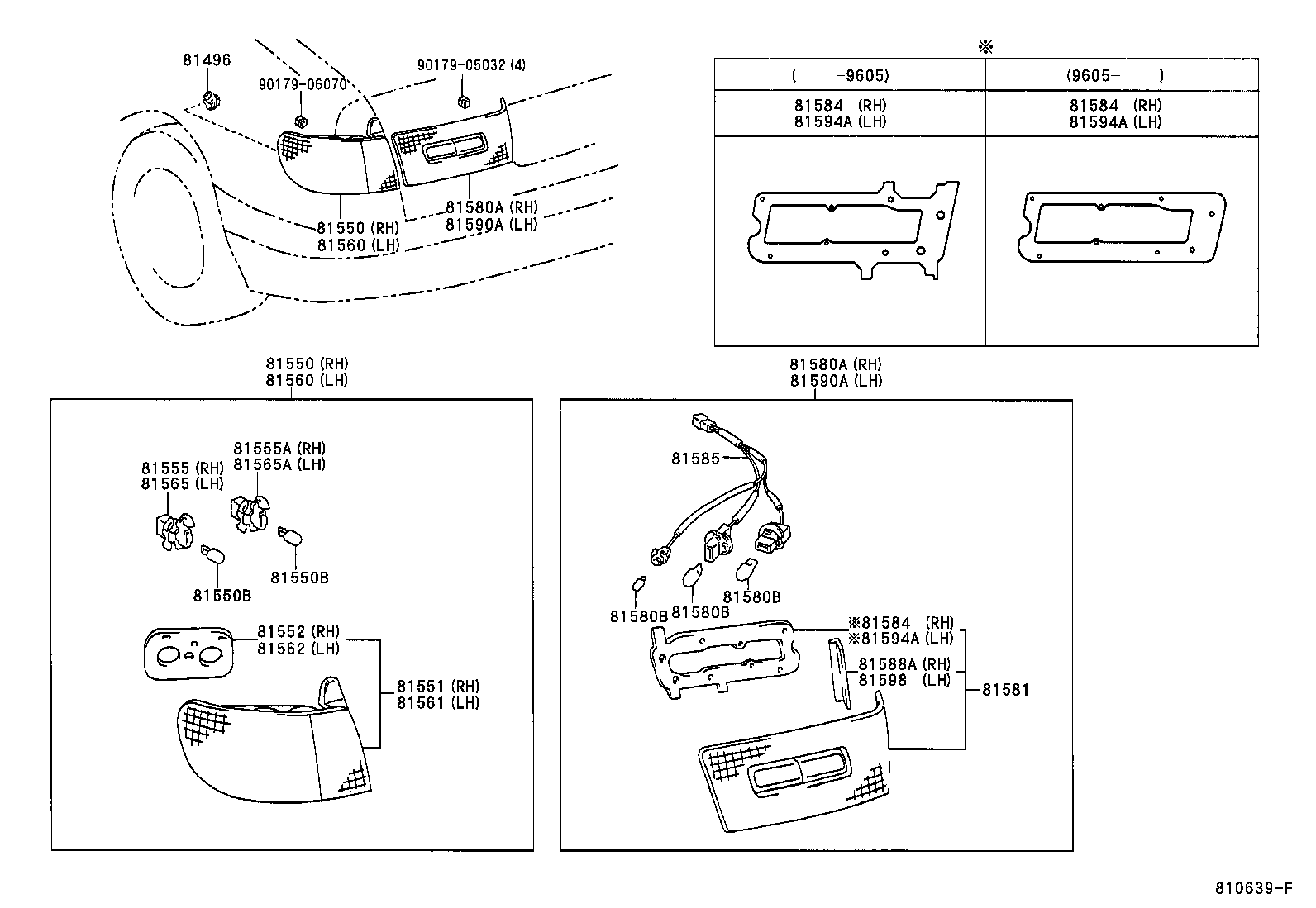

Click highlighted areas on diagram

diagram 81496 81550 81550 81550B 81550B 81551 81552 81555 81555A 81560 81560 81561 81562 81565 81565A 81580A 81580A 81580B 81580B 81580B 81581 81584 81584 81584 81585 81588A 81590A 81590A 81594A 81594A 81594A 81598 9017905032 9017906070
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-20020

AT21#,CT21#,ST21#

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B330

AT21#,CT21#,ST21#

 1
81550-2B490

AT21#,CT21#,ST21#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B330

AT21#,CT21#,ST21#

 1
81550-2B490

AT21#,CT21#,ST21#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

AT21#,CT21#,ST21#

12V 21/5W

 2
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

AT21#,CT21#,ST21#

12V 21/5W

 2
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B490

AT21#,CT21#,ST21#

 1
81551-2B330

AT21#,CT21#,ST21#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-2B330

AT21#,CT21#,ST21#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60003

AT21#,CT21#,ST21#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60002

AT21#,CT21#,ST21#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B270

AT21#,CT21#,ST21#

 1
81560-2B360

AT21#,CT21#,ST21#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B270

AT21#,CT21#,ST21#

 1
81560-2B360

AT21#,CT21#,ST21#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B270

AT21#,CT21#,ST21#

 1
81561-2B360

AT21#,CT21#,ST21#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-2B330

AT21#,CT21#,ST21#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60003

AT21#,CT21#,ST21#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60002

AT21#,CT21#,ST21#

 1
81580A - LAMP ASSY, REAR
81580-20130

AT21#,CT21#,ST21#

 1
81580-20131

AT21#,CT21#,ST21#

 1
81580-20141

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20200

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20140

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20190

AT21#,CT21#,ST21#

 1
81580A - LAMP ASSY, REAR
81580-20130

AT21#,CT21#,ST21#

 1
81580-20131

AT21#,CT21#,ST21#

 1
81580-20141

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20200

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20140

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81580-20190

AT21#,CT21#,ST21#

 1
81580B - BULB (FOR REAR LAMP)
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 4
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
90981-11059

AT21#,CT21#,ST21#

12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
99132-12050

AT21#,CT21#,ST21#

12V 5W

 2
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
90981-15009

AT21#,CT21#,ST21#

12V 21W,ｱﾝﾊﾞｰ

 2
81580B - BULB (FOR REAR LAMP)
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 4
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
90981-11059

AT21#,CT21#,ST21#

12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
99132-12050

AT21#,CT21#,ST21#

12V 5W

 2
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
90981-15009

AT21#,CT21#,ST21#

12V 21W,ｱﾝﾊﾞｰ

 2
81580B - BULB (FOR REAR LAMP)
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 4
90981-13043

AT21#,CT21#,ST21#

12V 21W

 2
90981-11059

AT21#,CT21#,ST21#

12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
99132-12050

AT21#,CT21#,ST21#

12V 5W

 2
90981-13043

AT21#,CT21#,ST21#

12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ)

 2
90981-15009

AT21#,CT21#,ST21#

12V 21W,ｱﾝﾊﾞｰ

 2
81581 - LENS, REAR LAMP
81581-20130

AT21#,CT21#,ST21#

右側

 1
81581-20140

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81581-20190

AT21#,CT21#,ST21#

右側

 1
81591-20150

AT21#,CT21#,ST21#

左側

 1
81581-20131

AT21#,CT21#,ST21#

右側

 1
81581-20141

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81581-20200

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81591-20170

AT21#,CT21#,ST21#

左側

 1
81591-20151

AT21#,CT21#,ST21#

左側

 1
81591-20161

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81591-20160

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81591-20180

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81584 - PACKING, REAR LAMP RH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81584-20130

AT21#,CT21#,ST21#

 1
81584 - PACKING, REAR LAMP RH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81584-20130

AT21#,CT21#,ST21#

 1
81584 - PACKING, REAR LAMP RH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81584-20130

AT21#,CT21#,ST21#

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-20190

AT21#,CT21#,ST21#

 2
81585-20200

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
81585-20130

AT21#,CT21#,ST21#

 2
81585-20140

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 2
81588A - PROTECTOR, REAR LAMP, RH
81588-20131

AT21#,CT21#,ST21#

 1
81590A - LAMP ASSY, REAR, LH
81590-20160

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20161

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20180

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20151

AT21#,CT21#,ST21#

 1
81590-20150

AT21#,CT21#,ST21#

 1
81590-20170

AT21#,CT21#,ST21#

 1
81590A - LAMP ASSY, REAR, LH
81590-20160

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20161

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20180

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 1
81590-20151

AT21#,CT21#,ST21#

 1
81590-20150

AT21#,CT21#,ST21#

 1
81590-20170

AT21#,CT21#,ST21#

 1
81594A - GASKET, REAR LAMP LH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81594-20150

AT21#,CT21#,ST21#

 1
81594-20151

AT21#,CT21#,ST21#

 1
81594A - GASKET, REAR LAMP LH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81594-20150

AT21#,CT21#,ST21#

 1
81594-20151

AT21#,CT21#,ST21#

 1
81594A - GASKET, REAR LAMP LH
81584-20131

AT21#,CT21#,ST21#

 1
81584-20190

AT21#,CT21#,ST21#

 1
81594-20150

AT21#,CT21#,ST21#

 1
81594-20151

AT21#,CT21#,ST21#

 1
81598 - PROTECTOR, REAR LAMP, LH
81598-20151

AT21#,CT21#,ST21#

 1
81598-20151

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)

 2
Common parts
90179-05032
90179-06070
