AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT21#

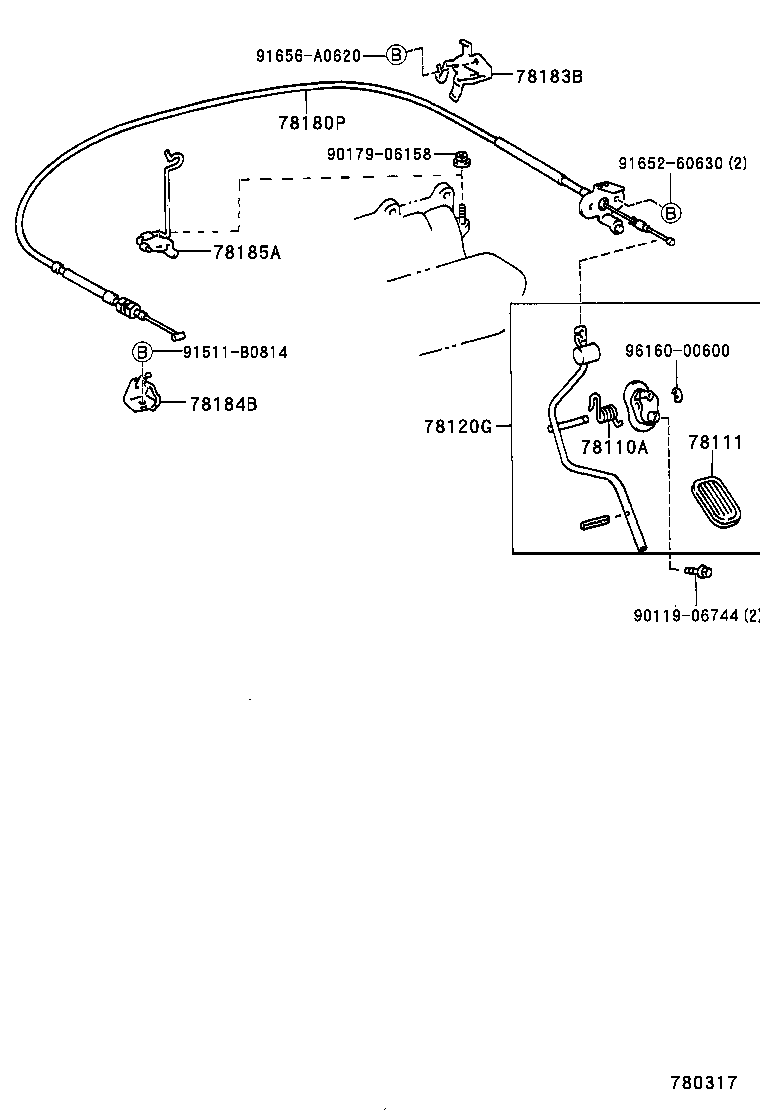

Click highlighted areas on diagram

diagram 78110A 78111 78120G 78180P 78183B 78184B 78185A 9011906744 9017906158 91511B0814 9165260630 91656A0620 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03102

ST215..ATM;AT21#,ST210

 1
78111 - PEDAL, ACCELERATOR
78111-33020

ST215..ATM;AT21#,ST210

 1
78111-20060

ST215..ATM;AT21#,CT21#,ST210

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20690

ST215..ATM;AT21#,ST210

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D540

AT21#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

CT211..ATM;AT21#,CT210,215,216,ST21#..EFI,TD,TDEFI

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-20290

AT21#

 1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78183-20220

AT21#

 1
Common parts
90119-06744
90179-06158
91511-B0814
91652-60630
91656-A0620
96160-00600
