AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

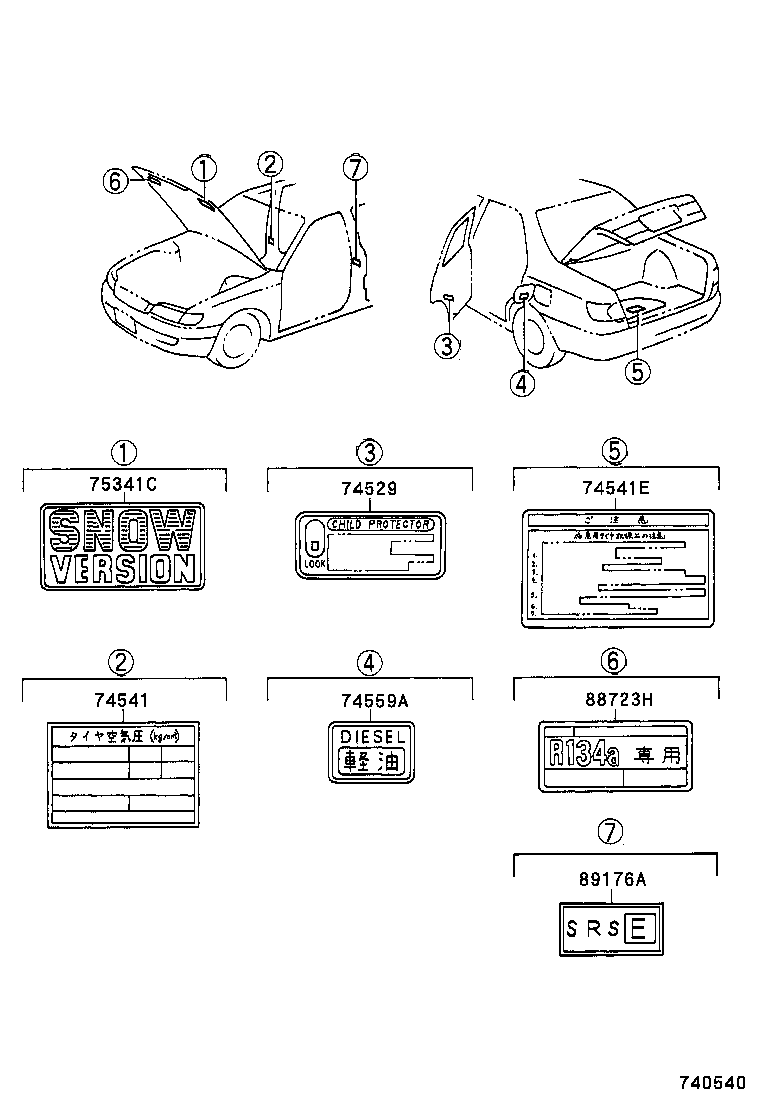

Click highlighted areas on diagram

diagram 74529 74541 74541E 74559A 75341C 88723H 89176A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

AT21#,CT21#,ST21#

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-2B322

AT210,CT210

 1
42661-2B324

AT210,CT211

 1
42661-2B323

AT210,CT210,211

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

AT21#,CT21#,ST21#

 1
42668-28060

AT21#,CT21#,ST21#

 1
75341C - PLATE, HOOD NAME
75341-20060

AT21#,CT21#,ST21#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-20030

AT21#,CT21#,ST21#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-20010

AT21#,CT21#,ST21#

 1
