AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

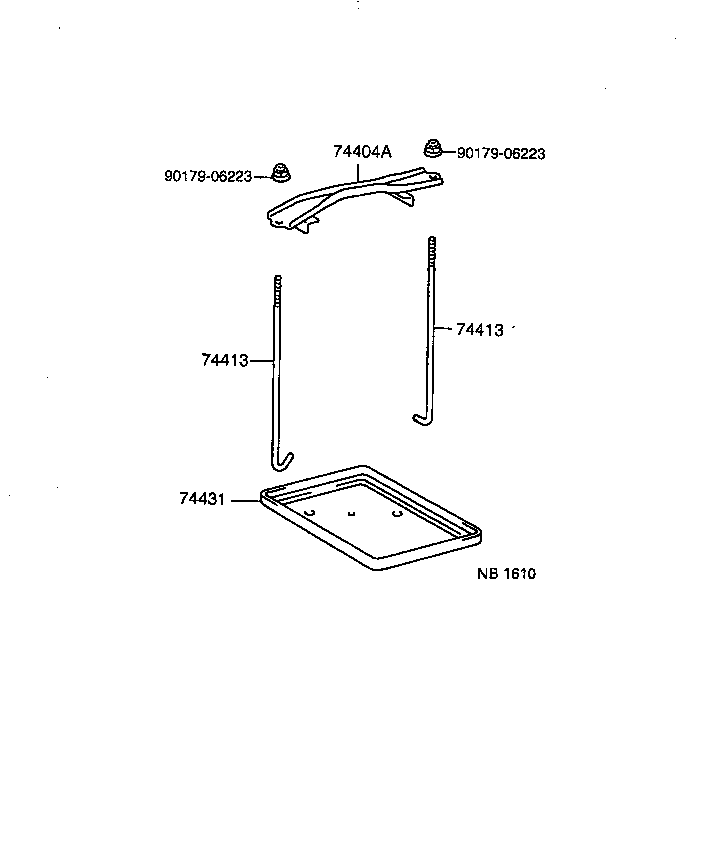

Click highlighted areas on diagram

diagram 74404A 74413 74413 74431 9017906223 9017906223
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-20490

AT21#,ST21#

 1
74413 - BOLT, BATTERY CLAMP
74451-32071

AT21#,CT21#,ST21#

 2
74451-32070

AT21#,ST21#

 2
74413 - BOLT, BATTERY CLAMP
74451-32071

AT21#,CT21#,ST21#

 2
74451-32070

AT21#,ST21#

 2
74431 - TRAY, BATTERY
74431-20080

AT21#;ST215..MTM

 1
74431-20080

ST215..MTM;AT21#,ST210

 1
74431-20090

AT21#,ST21#

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L) OR ｱﾘ(ﾊﾞﾂﾃﾘ=95D31L)

 1
Common parts
90179-06223
