AT210-AEPMK (1996)
Toyota Corona

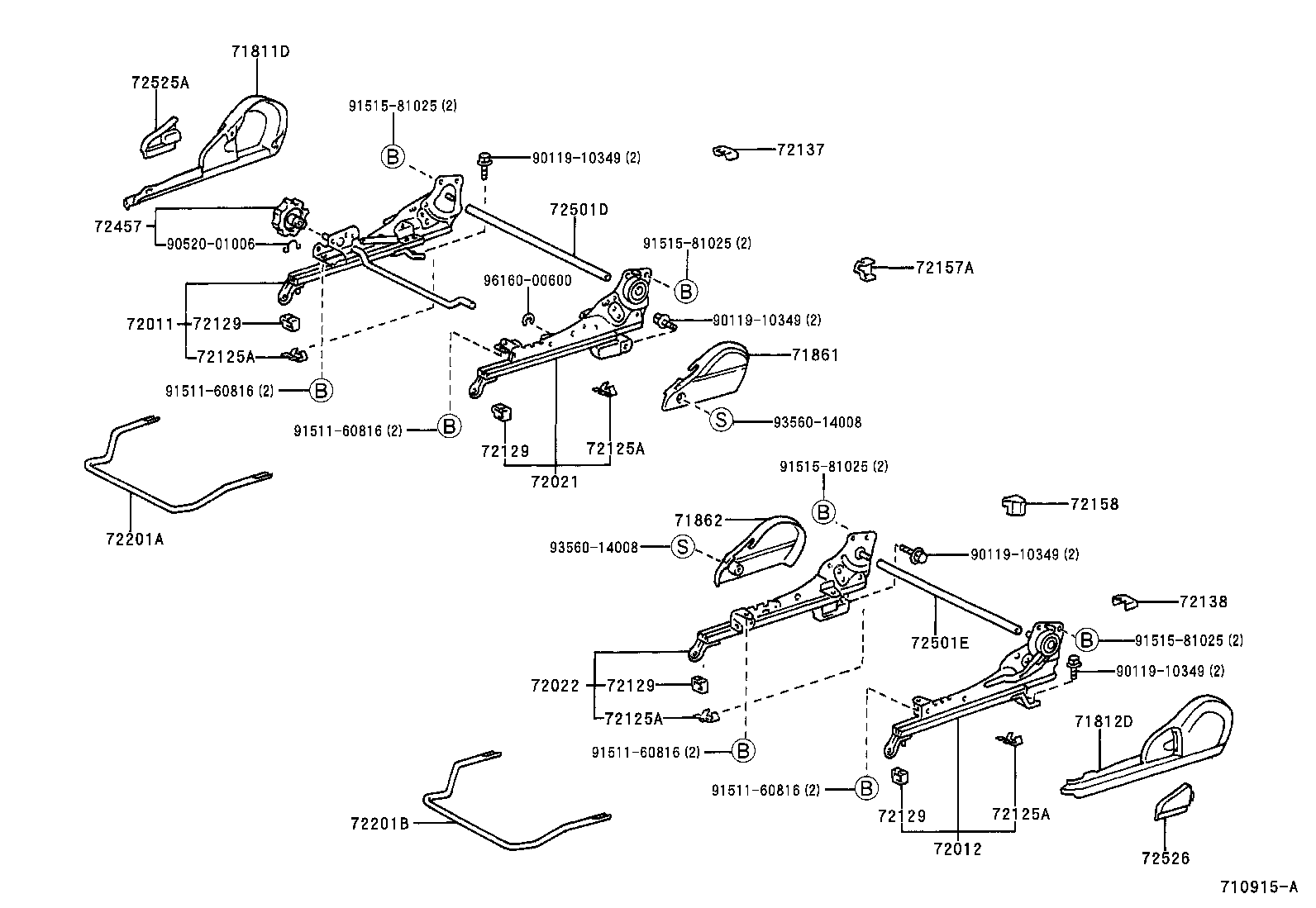

ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300B7 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 71811-20300B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 71811-20300E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20270B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 71812-20270B7 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 71812-20270E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 71861-20130B7 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 71861-20130B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 71862-20130B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 71862-20130B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B7 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20250 |
AT21#,CT21#,ST21# |
1 | ||
| 72011-21030 |
AT21#,CT21#,ST21# |
1 | ||
| 72011-21031 |
AT21#,CT21#,ST21# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20310 |
AT21#,CT21#,ST21# |
1 | ||
| 72012-21020 |
AT21#,CT21#,ST21# |
1 | ||
| 72012-21021 |
AT21#,CT21#,ST21# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-21030 |
AT21#,CT21#,ST21# |
1 | ||
| 72021-21031 |
AT21#,CT21#,ST21# |
1 | ||
| 72021-20220 |
AT21#,CT21#,ST21# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-21020 |
AT21#,CT21#,ST21# |
1 | ||
| 72022-21021 |
AT21#,CT21#,ST21# |
1 | ||
| 72022-20280 |
AT21#,CT21#,ST21# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST21# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST21# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST21# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
AT21#,CT21#,ST21# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST21# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST21# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST21# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
AT21#,CT21#,ST21# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20080C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 72137-20080C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 72137-20080C0 |
AT21#,CT21#,ST21# BLACK,TRIM11,17 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-20080C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 72137-20080C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 72137-20080C0 |
AT21#,CT21#,ST21# BLACK,TRIM11,17 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 72157-20020C0 |
AT21#,CT21#,ST21# BLACK,TRIM11,17 |
1 | ||
| 72157-20020C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
AT21#,CT21#,ST21#..EFI,TD BLACK,TRIM1#,4# |
1 | ||
| 72158-20010C0 |
AT21#,CT21#,ST21# BLACK,TRIM1#,4# |
1 | ||
| 72158-20010C0 |
AT21#,CT21#,ST21# BLACK,TRIM11,17 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20110 |
AT21#,CT21#,ST21# |
1 | ||
| 72201-21010 |
AT21#,CT21#,ST21# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-21010 |
AT21#,CT21#,ST21# |
1 | ||
| 72201-20110 |
AT21#,CT21#,ST21# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010B3 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010B3 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 72457-18010B3 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010P3 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 72457-18010E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
AT21#,CT21#,ST21# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AT21#,CT21#,ST21# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 72525-16010P2 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| 72525-16010E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 72525-16010B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
AT21#,CT21#,ST21#..EFI,TD SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010E0 |
AT21#,CT21#,ST21# ANTELOPE,TRIM4# |
1 | ||
| 72526-16010B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM11 |
1 | ||
| 72526-16010B0 |
AT21#,CT21#,ST21# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010P2 |
AT21#,CT21#,ST21# DK.CHARCOAL,TRIM17 |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||

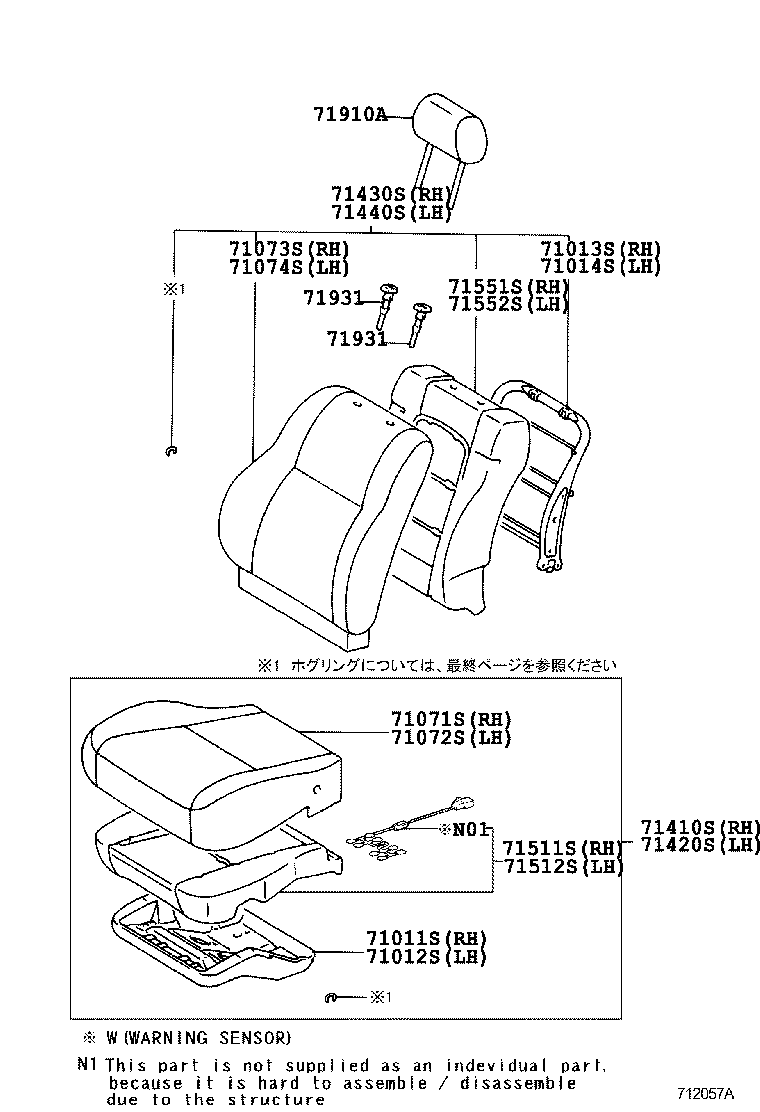

ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20430 |
AT21#,CT21#,ST21# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AT21#,CT21#,ST21# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-21060 |
AT21#,CT21#,ST21# |
1 | ||
| 71013-20680 |
AT21#,CT21#,ST21# |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-21060 |
AT21#,CT21#,ST21# |
1 | ||
| 71013-20680 |
AT21#,CT21#,ST21# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G790B0 |
AT210,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G790E0 |
AT210,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71071-2G791B3 |
AT210,CT21# DARK CHARCOAL,TRIM17 |
1 | ||
| 71071-2G791B2 |
AT210,CT21# SHADOW GRAY,TRIM11 |
1 | ||
| 71071-2H390B0 |
AT21#,ST21# ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2G210E0 |
AT210,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71072-2G211B3 |
AT210,CT21# DARK CHARCOAL,TRIM17 |
1 | ||
| 71072-2G210B0 |
AT210,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2G680B0 |
AT21#,ST21# ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71072-2G211B2 |
AT210,CT21# SHADOW GRAY,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G690E0 |
AT210,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71073-2G690B0 |
AT210,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2G691B2 |
AT210,CT21# DARK CHARCOAL,TRIM17 |
1 | ||
| 71073-2G691B1 |
AT210,CT21# SHADOW GRAY,TRIM11 |
1 | ||
| 71027-20030B0 |
AT210 ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2G120B0 |
AT210,CT21# SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2G120E0 |
AT210,CT21# ANTELOPE,TRIM4# |
1 | ||
| 71027-20020B0 |
AT21#,ST21# ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71074-2G121B2 |
AT210,CT21# DARK CHARCOAL,TRIM17 |
1 | ||
| 71074-2G121B1 |
AT210,CT21# SHADOW GRAY,TRIM11 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2H460B3 |
AT210,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2H460E1 |
AT210,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71410-2H461B7 |
AT210,CT21# ***,DARK CHARCOAL,TRIM17 |
1 | ||
| 71410-2H461B6 |
AT210,CT21# ***,SHADOW GRAY,TRIM11 |
1 | ||
| 71410-2H890B0 |
AT21#,ST21# ***,ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2H121B6 |
AT210,CT21# ***,SHADOW GRAY,TRIM11 |
1 | ||
| 71420-2H120E1 |
AT210,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71420-2H120B3 |
AT210,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2H520B0 |
AT21#,ST21# ***,ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
1 | ||
| 71420-2H121B7 |
AT210,CT21# ***,DARK CHARCOAL,TRIM17 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2H440B2 |
AT210,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2H441B5 |
AT210,CT21# ***,SHADOW GRAY,TRIM11 |
1 | ||
| 71430-2H440E1 |
AT210,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71430-2H441B6 |
AT210,CT21# ***,DARK CHARCOAL,TRIM17 |
1 | ||
| 71040-20310B0 |
AT210 ***,ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK. CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G660E0 |
AT210,CT21# ***,ANTELOPE,TRIM4# |
1 | ||
| 71440-2G660B0 |
AT210,CT21# ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G661B3 |
AT210,CT21# ***,SHADOW GRAY,TRIM11 |
1 | ||
| 71440-2G661B4 |
AT210,CT21# ***,DARK CHARCOAL,TRIM17 |
1 | ||
| 71040-20300B0 |
AT21#,ST21# ***,ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK.CHARCOAL,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20760 |
AT21#,CT21#,ST21#..EFI,TD |
1 | ||
| 71511-20760 |
AT21#,CT21#,ST21# |
1 | ||
| 71511-21040 |
AT21#,CT21#,ST21# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20160 |
AT21#,CT21#,ST21#..EFI,TD |
1 | ||
| 71052-21030 |
AT21#,CT21#,ST21# |
1 | ||
| 71512-20160 |
AT21#,CT21#,ST21# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20460 |
AT21#,CT21#,ST21# |
1 | ||
| 71551-21050 |
AT21#,CT21#,ST21# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-21050 |
AT21#,CT21#,ST21# ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 71551-21050 |
AT21#,CT21#,ST21# |
2 | ||
| 71551-20460 |
AT21#,CT21#,ST21# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2D190E0 |
AT210,CT21# ANTELOPE,TRIM4# |
2 | ||
| 71910-2D190B0 |
AT210,CT21# SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2D330B0 |
AT21#,ST21# ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DARK CHARCOAL,TRIM1# |
2 | ||
| 71910-2D191B2 |
AT210,CT21# DARK CHARCOAL,TRIM17 |
2 | ||
| 71910-2D191B1 |
AT210,CT21# SHADOW GRAY,TRIM11 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-20120E1 |
AT21#,CT21#,ST21# ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050E0 |
AT21#,CT21#,ST21# ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST21#..EFI,TD ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21060B0 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM11 |
2 | ||
| 71931-21010B1 |
AT21#,CT21#,ST21# ﾛｯｸ無,DK.CHARCOAL,TRIM17 |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST21# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST21#..EFI,TD ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010B0 |
AT21#,CT21#,ST21# ﾛｯｸ無,SHADOW GRAY,TRIM11 |
2 | ||
| 71930-20120B2 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080E1 |
AT21#,CT21#,ST21# ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-21060B1 |
AT21#,CT21#,ST21# ﾛｯｸ付,DK.CHARCOAL,TRIM17 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-20120E1 |
AT21#,CT21#,ST21# ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050E0 |
AT21#,CT21#,ST21# ﾛｯｸ付,ANTELOPE,TRIM4# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT21#,CT21#,ST21#..EFI,TD ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21060B0 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM11 |
2 | ||
| 71931-21010B1 |
AT21#,CT21#,ST21# ﾛｯｸ無,DK.CHARCOAL,TRIM17 |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST21# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080B0 |
AT21#,CT21#,ST21#..EFI,TD ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-21010B0 |
AT21#,CT21#,ST21# ﾛｯｸ無,SHADOW GRAY,TRIM11 |
2 | ||
| 71930-20120B2 |
AT21#,CT21#,ST21# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-20080E1 |
AT21#,CT21#,ST21# ﾛｯｸ無,ANTELOPE,TRIM4# |
2 | ||
| 71930-21060B1 |
AT21#,CT21#,ST21# ﾛｯｸ付,DK.CHARCOAL,TRIM17 |
2 | ||
(9601- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
