AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

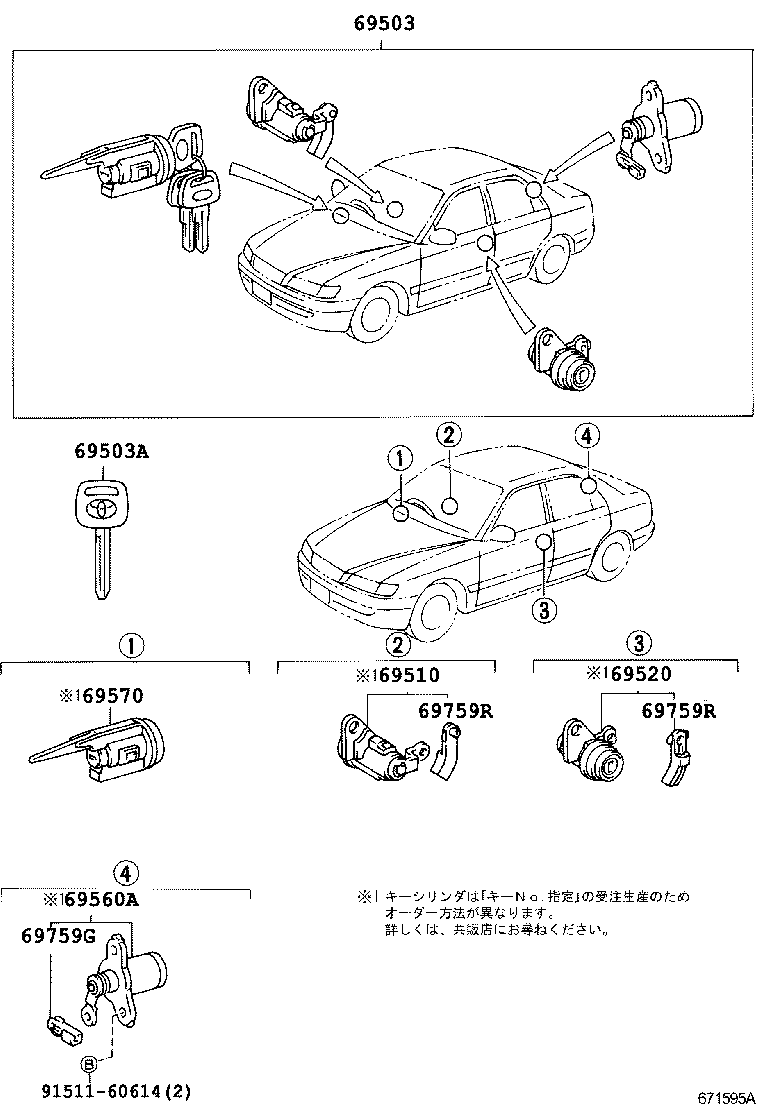

Click highlighted areas on diagram

diagram 69503 69503A 69510 69520 69560A 69570 69759G 69759R 69759R 9151160614
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-2B480

AT210,CT21#

 1
69503A - KEY, BLANK
90999-00185

AT21#,CT21#,ST21#

ﾏｽﾀｰｷｰ,*68付き

 3
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-20210

AT21#,CT21#,ST21#

 1
69510-20210

AT21#,CT21#,ST21#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-20200

AT21#,CT21#,ST21#

 1
69520-20200

AT21#,CT21#,ST21#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-20390

AT21#,CT21#,ST21#

 1
69560-20390

AT21#,CT21#,ST21#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12150

AT210,CT21#

 1
69570-12150

AT210,CT21#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-20080

AT21#,CT21#,ST21#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AT21#,CT21#,ST21#

左側

 1
69759-12080

AT21#,CT21#,ST21#

右側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AT21#,CT21#,ST21#

左側

 1
69759-12080

AT21#,CT21#,ST21#

右側

 1
Common parts
91511-60614
