AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

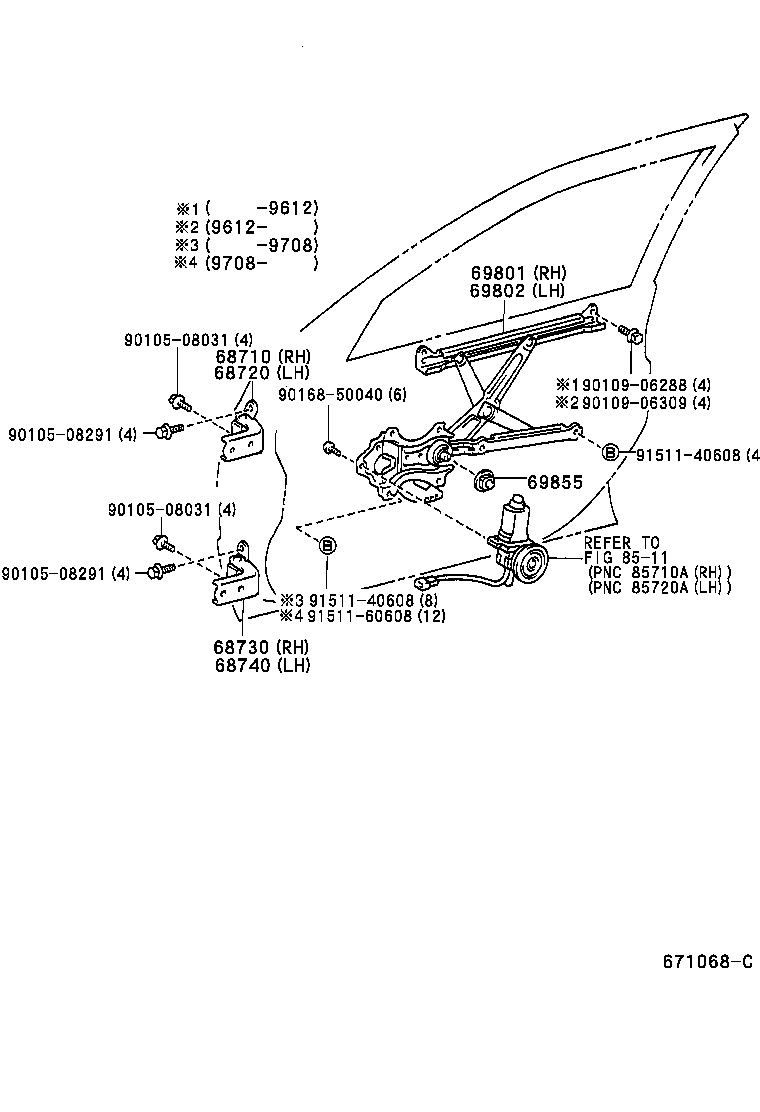

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 69855 8511 9010508031 9010508031 9010508291 9010508291 9010906288 9010906309 9016850040 9151140608 9151140608 9151160608
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68740-12110

AT21#,CT21#,ST21#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68730-12110

AT21#,CT21#,ST21#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12150

AT21#,CT21#,ST21#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12150

AT21#,CT21#,ST21#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20280

AT21#,CT21#,ST21#

 1
69801-20260

AT21#,CT21#,ST21#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20280

AT21#,CT21#,ST21#

 1
69802-20300

AT21#,CT21#,ST21#

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

AT21#,CT21#,ST21#

 2
Common parts
90105-08031
90105-08291
90109-06288
90109-06309
90168-50040
91511-40608
91511-60608
Linked diagrams
8511
