AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

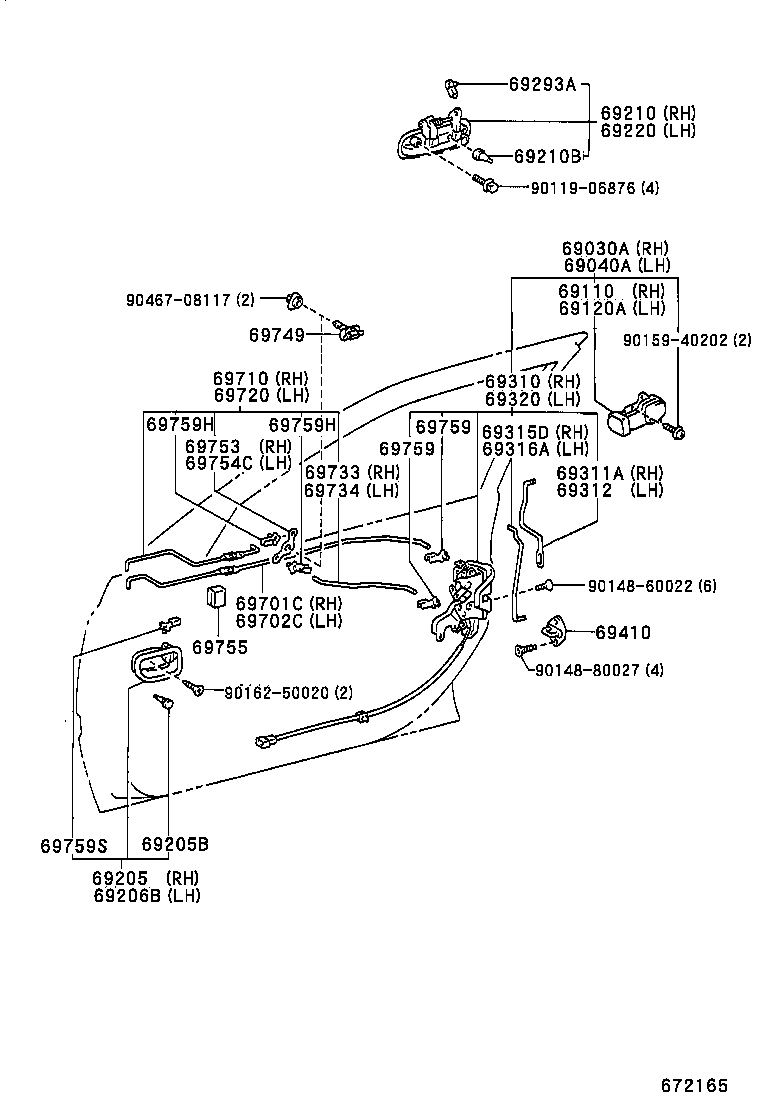

Click highlighted areas on diagram

diagram 69030A 69040A 69110 69120A 69205 69205B 69206B 69210 69210B 69220 69293A 69310 69311A 69312 69315D 69316A 69320 69410 69701C 69702C 69710 69720 69733 69734 69749 69753 69754C 69755 69759 69759 69759H 69759H 69759S 9011906876 9014860022 9014880027 9015940202 9016250020 9046708117
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-20420

AT21#,CT21#,ST21#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-20520

AT21#,CT21#,ST21#

 1
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-20010

AT21#,CT21#,ST21#

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-20010

AT21#,CT21#,ST21#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20150B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
69205-20150B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
69205-20150E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
69205-20150B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
69205-20190B1

AT21#,ST21#

ｱﾘ(ﾒﾂｷ ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ),DK.CHARCOAL,TRIM1#

 1
69205-20150B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

AT21#,CT21#,ST21#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20150B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
69206-20150E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
69206-20150B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
69206-20190B1

AT21#,ST21#

ｱﾘ(ﾒﾂｷ ｲﾝｻｲﾄﾞ ﾊﾝﾄﾞﾙ),DK.CHARCOAL,TRIM1#

 1
69206-20150B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
69206-20150B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20330A0

AT21#,CT21#,ST21#..EFI,TD

SUPER WHITE 2,040

 1
69210-20330G1

AT21#,CT21#,ST21#..EFI,TD

DK.GREEN M.M.,6P2

 1
69210-20330D0

AT21#,CT21#,ST21#..EFI,TD

MAGENTA MC.,3L3

 1
69210-20330B0

AT21#,CT21#,ST21#..EFI,TD

SILVER PEARL ME.,1A7

 1
69210-20330J0

AT21#,CT21#,ST21#..EFI,TD

DK.BLUE M.M.,8L3

 1
69210-20330E0

AT21#,CT21#,ST21#..EFI,TD

BEIGE M.M.,4N3

 1
69210-20330E0

AT21#,CT21#,ST21#

BEIGE M.M.,4N3

 1
69210-20330A0

AT21#,CT21#,ST21#

SUPER WHITE 2,040

 1
69210-20330D0

AT21#,CT21#,ST21#

MAGENTA MC.,3L3

 1
69210-20330G0

AT21#,CT21#,ST21#..EFI,TD

GRAYISH GREEN M.M.,6N0

 1
69210-20330G0

AT21#,CT21#,ST21#

GRAYISH GREEN M.M.,6N0

 1
69210-20350

AT210,CT21#

 1
69210-21010G1

AT21#,CT21#,ST21#

GRAYISH GREEN M.M.,6N0

 1
69210-21010J0

AT21#,CT21#,ST21#

DK.BLUE M.M.,8L3

 1
69210-20330B0

AT21#,CT21#,ST21#

SILVER PEARL ME.,1A7

 1
69210-21010B1

AT21#,CT21#,ST21#

CRYSTAL SILVER PEARL,1C1 ,2EG

 1
69210-20330J0

AT21#,CT21#,ST21#

DK.BLUE M.M.,8L3

 1
69210-21010A0

AT21#,CT21#,ST21#

SUPER WHITE 2,040

 1
69210-20400

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 1
69210-21010J3

AT21#,CT21#,ST21#

DK.BLUE MC.,8P4

 1
69210-20360

AT210,CT21#

 1
69210-21010E0

AT21#,CT21#,ST21#

FLAXEN MM,4M7

 1
69210-20330G1

AT21#,CT21#,ST21#

DK.GREEN M.M.,6P2

 1
69210-21010G2

AT21#,CT21#,ST21#

DK.GREEN M.M.,6P2

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

AT21#,CT21#,ST21#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20300A0

AT21#,CT21#,ST21#..EFI,TD

SUPER WHITE 2,040

 1
69220-20300E0

AT21#,CT21#,ST21#..EFI,TD

BEIGE M.M.,4N3

 1
69220-20300D0

AT21#,CT21#,ST21#..EFI,TD

MAGENTA MC.,3L3

 1
69220-20300B0

AT21#,CT21#,ST21#..EFI,TD

SILVER PEARL ME.,1A7

 1
69220-20300G0

AT21#,CT21#,ST21#..EFI,TD

GRAYISH GREEN M.M.,6N0

 1
69220-20300B0

AT21#,CT21#,ST21#

SILVER PEARL ME.,1A7

 1
69220-20300E0

AT21#,CT21#,ST21#

BEIGE M.M.,4N3

 1
69220-20300J0

AT21#,CT21#,ST21#..EFI,TD

DK.BLUE M.M.,8L3

 1
69220-20300G1

AT21#,CT21#,ST21#..EFI,TD

DK.GREEN M.M.,6P2

 1
69220-20300A0

AT21#,CT21#,ST21#

SUPER WHITE 2,040

 1
69220-21010B1

AT21#,CT21#,ST21#

CRYSTAL SILVER PEARL,1C1 ,2EG

 1
69220-21010G1

AT21#,CT21#,ST21#

GRAYISH GREEN M.M.,6N0

 1
69220-20300D0

AT21#,CT21#,ST21#

MAGENTA MC.,3L3

 1
69220-20300G0

AT21#,CT21#,ST21#

GRAYISH GREEN M.M.,6N0

 1
69220-21010G2

AT21#,CT21#,ST21#

DK.GREEN M.M.,6P2

 1
69220-21010J0

AT21#,CT21#,ST21#

DK.BLUE M.M.,8L3

 1
69220-20350

AT210,CT21#

 1
69220-20360

AT210,CT21#

 1
69220-21010J3

AT21#,CT21#,ST21#

DK.BLUE MC.,8P4

 1
69220-20400

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z)

 1
69220-20300G1

AT21#,CT21#,ST21#

DK.GREEN M.M.,6P2

 1
69220-21010E0

AT21#,CT21#,ST21#

FLAXEN MM,4M7

 1
69220-21010A0

AT21#,CT21#,ST21#

SUPER WHITE 2,040

 1
69220-20300J0

AT21#,CT21#,ST21#

DK.BLUE M.M.,8L3

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AT21#,CT21#,ST21#

右側

 1
69293-12040

AT21#,CT21#,ST21#

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20660

AT21#,CT21#,ST21#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-20100

AT21#,CT21#,ST21#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-20140

AT21#,CT21#,ST21#

 1
69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH
69315-20180

AT21#,CT21#,ST21#

 1
69315-20170

AT21#,CT21#,ST21#

 1
69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH
69316-20160

AT21#,CT21#,ST21#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20650

AT21#,CT21#,ST21#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

AT21#,CT21#,ST21#

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-20070

AT21#,CT21#,ST21#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-20070

AT21#,CT21#,ST21#

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710-20080

AT21#,CT21#,ST21#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720-20080

AT21#,CT21#,ST21#

 1
69733 - LINK, FRONT DOOR INSIDE LOCKING, RH
69733-20140

AT21#,CT21#,ST21#

 1
69734 - LINK, FRONT DOOR INSIDE LOCKING, LH
69733-20140

AT21#,CT21#,ST21#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32030

AT21#,CT21#,ST21#

 2
69753 - BELLCRANK, DOOR LOCK CONTROL, RH
69753-20070

AT21#,CT21#,ST21#

 1
69753-20080

AT21#,CT21#,ST21#

 1
69754C - BELLCRANK, DOOR LOCK CONTROL, LH
69753-20070

AT21#,CT21#,ST21#

 1
69753-20080

AT21#,CT21#,ST21#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12060

AT21#,CT21#,ST21#

 2
69759-20390

AT21#,CT21#,ST21#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AT21#,CT21#,ST21#

LH,NATURAL

 1
69759-24060

AT21#,CT21#,ST21#

RH,GRAY

 1
69759-24050

AT21#,CT21#,ST21#

LH,GREEN

 1
69759-24020

AT21#,CT21#,ST21#

RH,BLUE

 1
69759-24050

AT21#,CT21#,ST21#

LH,GREEN

 2
69759-24060

AT21#,CT21#,ST21#

RH,GRAY

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24010

AT21#,CT21#,ST21#

LH,NATURAL

 1
69759-24060

AT21#,CT21#,ST21#

RH,GRAY

 1
69759-24050

AT21#,CT21#,ST21#

LH,GREEN

 1
69759-24020

AT21#,CT21#,ST21#

RH,BLUE

 1
69759-24050

AT21#,CT21#,ST21#

LH,GREEN

 2
69759-24060

AT21#,CT21#,ST21#

RH,GRAY

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24090

AT21#,CT21#,ST21#

BR0WN

 2
69759-20380

AT21#,CT21#,ST21#

ﾌﾞﾗｯｸ

 2
69759-24030

AT21#,CT21#,ST21#

ﾚｯﾄﾞ

 2
69759-24080

AT21#,CT21#,ST21#

ｲｴﾛｰ

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24090

AT21#,CT21#,ST21#

BR0WN

 2
69759-20380

AT21#,CT21#,ST21#

ﾌﾞﾗｯｸ

 2
69759-24030

AT21#,CT21#,ST21#

ﾚｯﾄﾞ

 2
69759-24080

AT21#,CT21#,ST21#

ｲｴﾛｰ

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

AT21#,CT21#,ST21#

左側

 2
69759-14050

AT21#,CT21#,ST21#

右側

 2
Common parts
90119-06876
90148-60022
90148-80027
90159-40202
90162-50020
90467-08117
