AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

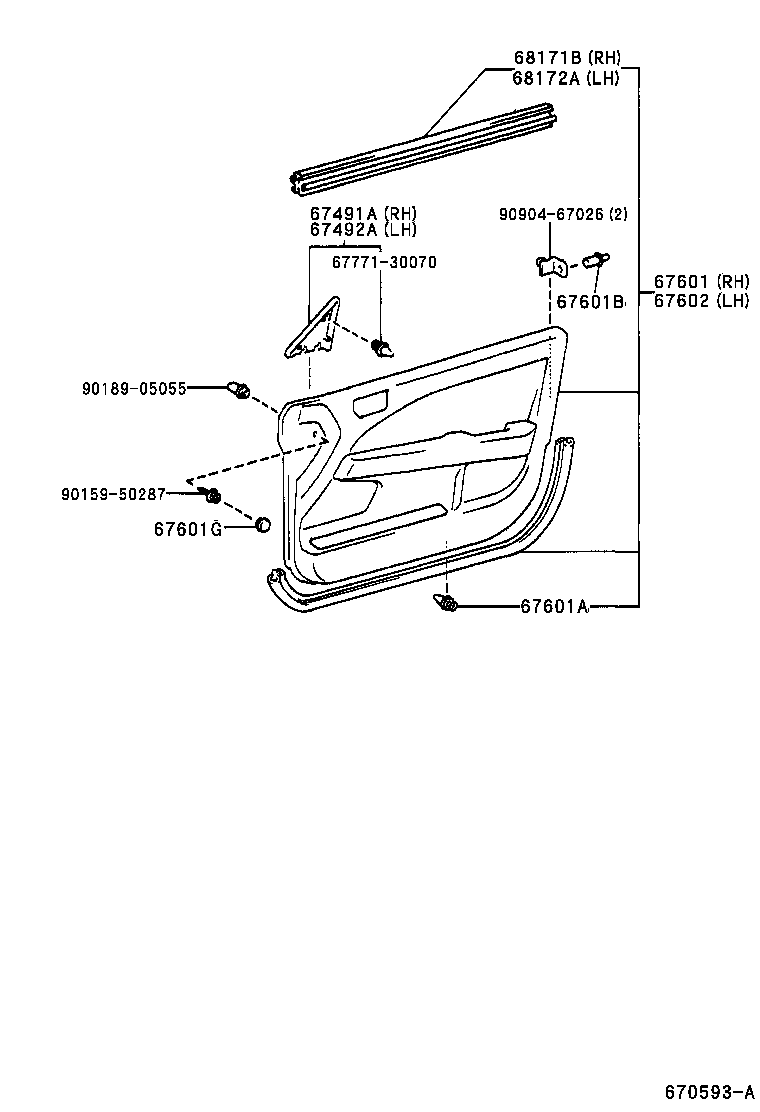

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601A 67601B 67601G 67602 6777130070 68171B 68172A 9015950287 9018905055 9090467026
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20300C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 1
67491-20300C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 1
67491-20300C0

AT21#,CT21#,ST21#

BLACK,TRIM11,17

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20360C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 1
67492-20360C0

AT21#,CT21#,ST21#

BLACK,TRIM11,17

 1
67492-20360C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2G050B5

AT210,CT21#

SHADOW GRAY,TRIM1#

 1
67610-2G050E5

AT210,CT21#

ANTELOPE,TRIM4#

 1
67610-2H050B0

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK.CHARCOAL,TRIM1#

 1
67610-2G050B2

AT210,CT21#

SHADOW GRAY,TRIM11

 1
67610-2G050B9

AT210,CT21#

DK. CHARCOAL,TRIM17

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-28020

AT21#,CT21#,ST21#

 12
67771-32140

AT21#,CT21#,ST21#

 12
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066P0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 2
90467-07066E5

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 2
90467-07066P0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 2
90467-07066P1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 2
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800E3

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 2
90950-01800B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 2
90950-01800B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 2
90950-01800B5

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 2
90950-01800B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2L750B5

AT210,CT21#

SHADOW GRAY,TRIM1#

 1
67620-2L750E5

AT210,CT21#

ANTELOPE,TRIM4#

 1
67620-2L750B2

AT210,CT21#

SHADOW GRAY,TRIM11

 1
67620-2L750B8

AT210,CT21#

DK. CHARCOAL,TRIM17

 1
67660-20270B0

AT21#,ST21#

ﾘﾐﾃﾂﾄﾞ *(V),*(Z),DK.CHARCOAL,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-20080

AT21#,CT21#,ST21#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-20070

AT21#,CT21#,ST21#

 1
Common parts
67771-30070
90159-50287
90189-05055
90904-67026

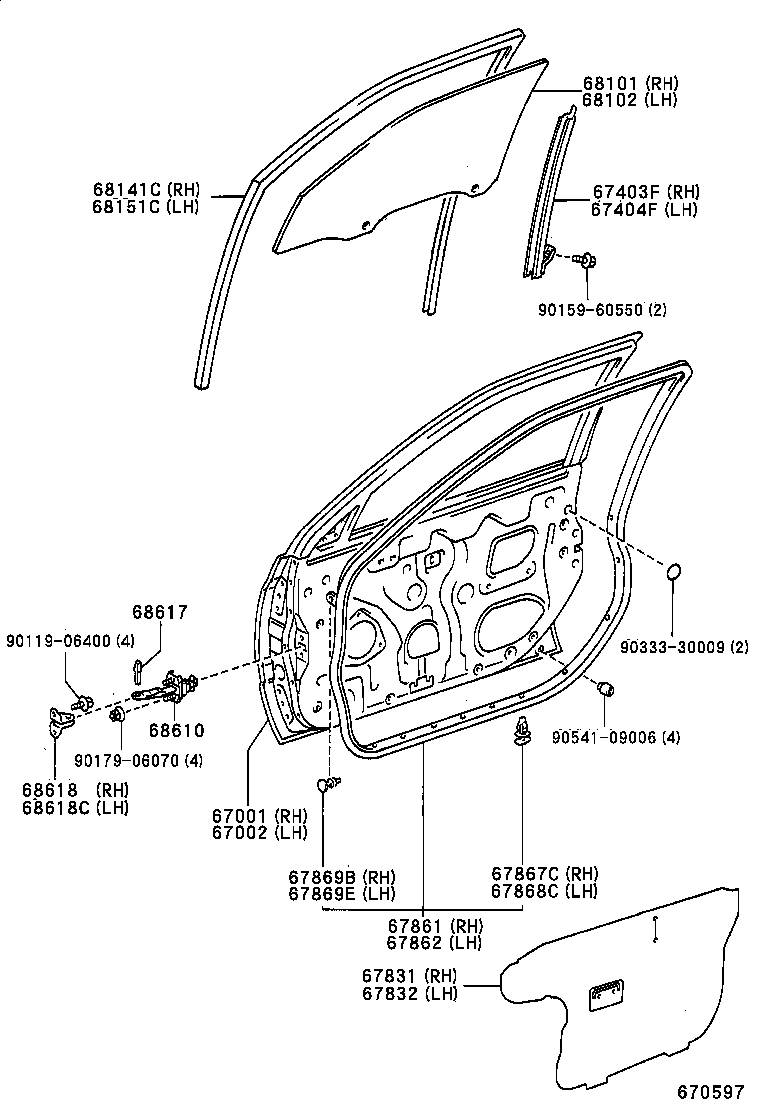

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 67001 67002 67403F 67404F 67831 67832 67861 67862 67867C 67868C 67869B 67869E 68101 68102 68141C 68151C 68610 68617 68618 68618C 9011906400 9015960550 9017906070 9033330009 9054109006
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-2B090

AT21#,CT21#,ST21#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-2B040

AT21#,CT21#,ST21#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-20130

AT21#,CT21#,ST21#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-20110

AT21#,CT21#,ST21#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20490

AT21#,CT21#,ST21#

 1
67831-20480

AT21#,CT21#,ST21#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-20320

AT21#,CT21#,ST21#

 1
67832-20310

AT21#,CT21#,ST21#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20400

AT21#,CT21#,ST21#

 1
67861-20401

AT21#,CT21#,ST21#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20401

AT21#,CT21#,ST21#

 1
67862-20400

AT21#,CT21#,ST21#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AT21#,CT21#,ST21#

 16
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AT21#,CT21#,ST21#

 16
67867-12150

AT21#,CT21#,ST21#

 10
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AT21#,CT21#,ST21#

 1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-20030

AT21#,CT21#,ST21#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20740

AT21#,CT21#,ST21#

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68111-20830

AT21#,ST21#

*UVCTT,厚さ=4.0.ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ)

 1
68111-20780

AT21#,CT21#,ST21#

*UVCTT,厚さ=4.0.ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20700

AT21#,CT21#,ST21#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68112-20660

AT21#,CT21#,ST21#

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68112-20750

AT21#,ST21#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ)

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-20290

AT21#,CT21#,ST21#

 1
68141-20230

AT21#,CT21#,ST21#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-20090

AT21#,CT21#,ST21#

 1
68151-20110

AT21#,CT21#,ST21#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20180

AT21#,CT21#,ST21#

 2
68617 - PIN, FRONT DOOR CHECK
68617-20050

AT21#,CT21#,ST21#

 2
68617-20040

AT21#,CT21#,ST21#

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-26010

AT21#,CT21#,ST21#

 1
68618-20030

AT21#,CT21#,ST21#

 1
68618C - BRACKET, FRONT DOOR CHECK ARM, LH
68618-26010

AT21#,CT21#,ST21#

 1
68618-20030

AT21#,CT21#,ST21#

 1
Common parts
90119-06400
90159-60550
90179-06070
90333-30009
90541-09006
