AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

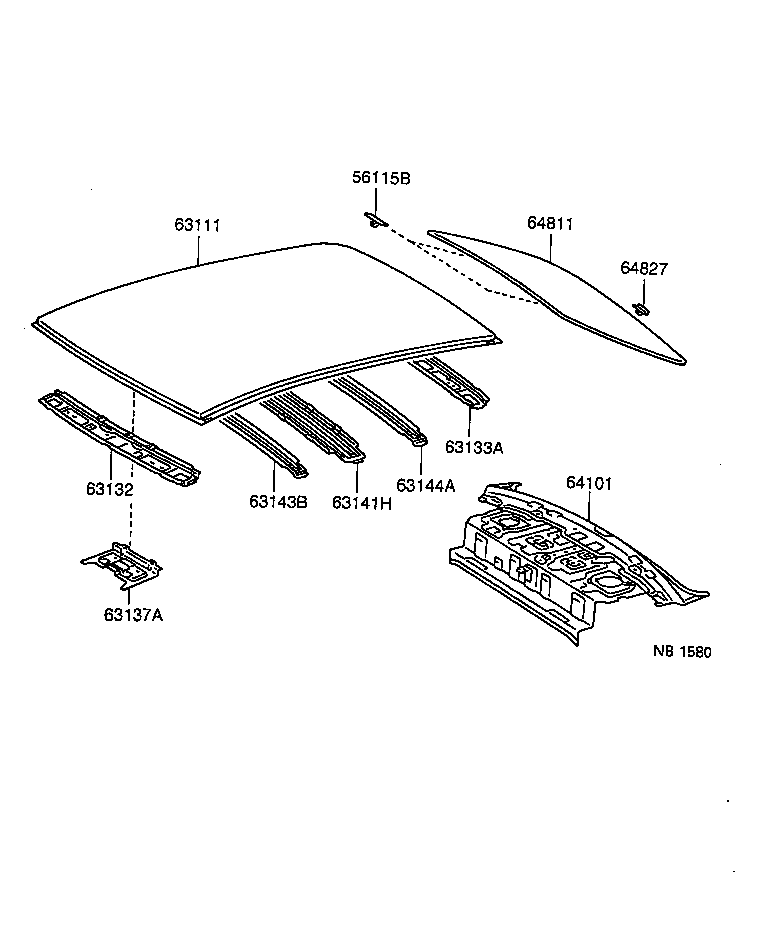

Click highlighted areas on diagram

diagram 56115B 63111 63132 63133A 63137A 63141H 63143B 63144A 64101 64811 64827
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56116-35050

AT21#,CT21#,ST21#

 2
63111 - PANEL, ROOF
63111-20590

AT21#,CT21#,ST21#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-20240

AT21#,CT21#,ST21#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20250

AT21#,CT21#,ST21#

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-20090

AT21#,ST21#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20220

AT21#,CT21#,ST21#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-20110

AT21#,CT21#,ST21#

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-20050

AT21#,CT21#,ST21#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-2B040

ST210..D4;AT21#,CT21#,ST215

 1
64101-2B041

ST210..D4;AT21#,CT21#,ST215

 1
64101-2B120

AT21#,CT21#,ST21#

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
64101-2B040

AT21#,CT21#,ST215

 1
64101-2B110

AT21#,CT21#,ST21#

 1
64811 - GLASS, BACK WINDOW
64811-20964

AT21#,CT21#,ST215

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
64811-2D420

AT21#,CT21#,ST215

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64811-2D918

AT210,CT21#

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ)

 1
64811-2D917

AT21#,CT21#,ST21#

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ｱﾝﾃﾅ)

 1
64811-2D710

AT210,CT21#

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64811-2D720

AT21#,CT21#,ST21#

*UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ｱﾝﾃﾅ)

 1
64827 - CLIP, BACK WINDOW GLASS, RH
64827-20040

AT21#,CT21#,ST21#

 1
