AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

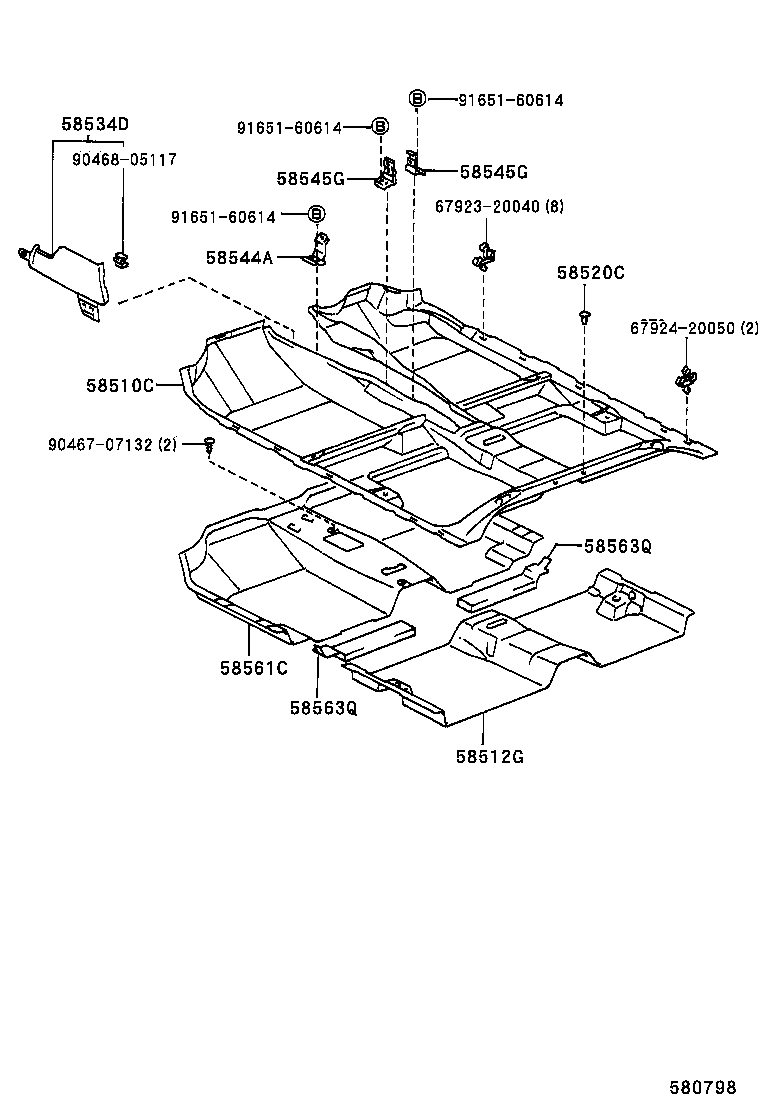

Click highlighted areas on diagram

diagram 58510C 58512G 58520C 58534D 58544A 58545G 58545G 58561C 58563Q 58563Q 6792320040 6792420050 9046707132 9046805117 9165160614 9165160614 9165160614
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2D880B0

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｴｱ ﾀﾞｸﾄ),BLUISH GRAY,TRIM1#

 1
58510-2D870B1

AT21#,CT21#,ST215

DARK CHARCOAL,TRIM17

 1
58510-2D870B0

AT21#,CT21#,ST21#..EFI,TD

BLUISH GRAY,TRIM1#

 1
58510-2D880E0

AT21#,CT21#,ST21#..EFI,TD

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｴｱ ﾀﾞｸﾄ),ANTELOPE,TRIM4#

 1
58510-2D880B1

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｴｱ ﾀﾞｸﾄ),DARK CHARCOAL,TRIM17

 1
58510-2D870E0

AT21#,CT21#,ST21#..EFI,TD

ANTELOPE,TRIM4#

 1
58510-2D880B0

AT21#,CT21#,ST215

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｴｱ ﾀﾞｸﾄ),BLUISH GRAY,TRIM11

 1
58510-2D870B0

AT21#,CT21#,ST215

BLUISH GRAY,TRIM11

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-20290

AT21#,CT21#,ST21#

 1
58512-20280

AT21#,CT21#,ST21#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 2
90467-06016C0

AT21#,CT21#,ST21#

BLACK,TRIM11,17

 2
90467-06016C0

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 2
58534D - COVER, FLOOR CARPET, CENTER LH
58534-20020B0

AT21#,CT21#,ST21#..EFI,TD

SHADOW GRAY,TRIM1#

 1
58534-20020E0

AT21#,CT21#,ST21#

ANTELOPE,TRIM4#

 1
58534-20020B1

AT21#,CT21#,ST21#

DK.CHARCOAL,TRIM17

 1
58534-20020B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM1#

 1
58534-20020B0

AT21#,CT21#,ST21#

SHADOW GRAY,TRIM11

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20060

AT21#,CT21#,ST21#

 1
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20030

AT21#,CT21#,ST21#

 2
58545G - BRACKET, FLOOR CARPET, NO.2 RH
58545-20030

AT21#,CT21#,ST21#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-20010

AT21#,CT21#,ST21#

 1
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-20020

AT21#,CT21#,ST21#

 2
58563-21010

AT21#,CT21#,ST21#

 2
58563Q - SILENCER, FRONT FLOOR, NO.3
58563-20020

AT21#,CT21#,ST21#

 2
58563-21010

AT21#,CT21#,ST21#

 2
Common parts
67923-20040
67924-20050
90467-07132
90468-05117
91651-60614
