AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

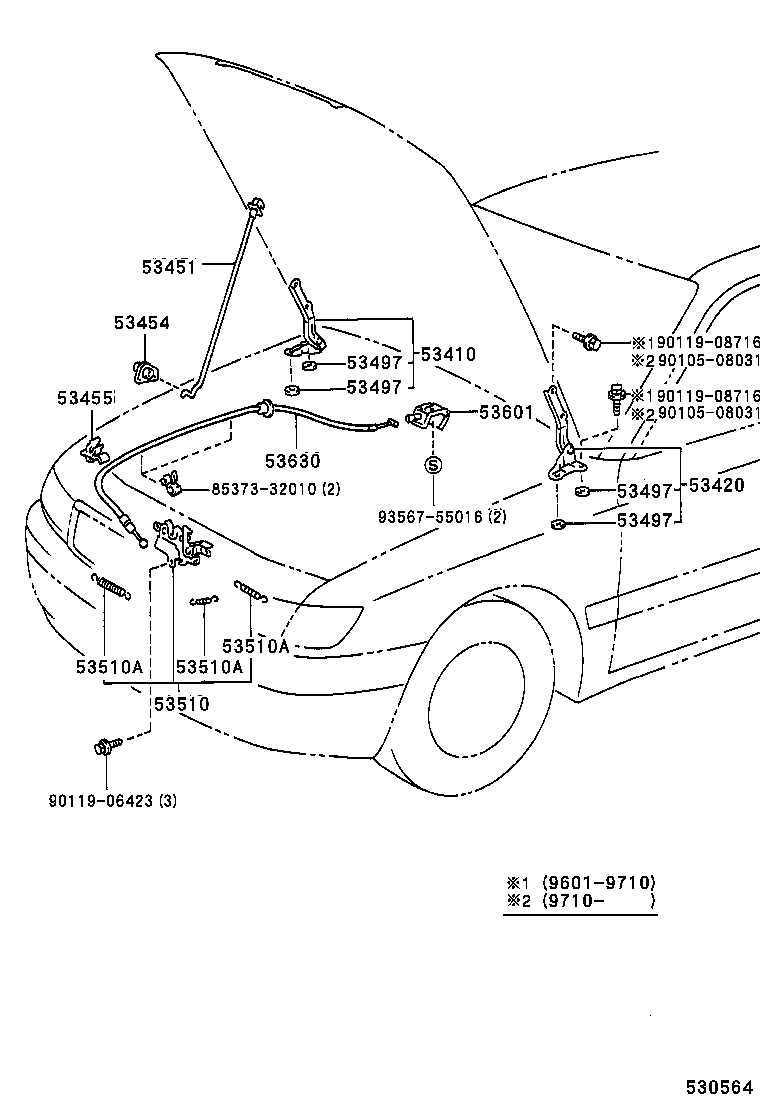

Click highlighted areas on diagram

diagram 53410 53420 53451 53454 53455 53497 53497 53497 53497 53510 53510A 53510A 53510A 53601 53630 8537332010 9010508031 9010508031 9011906423 9011908716 9011908716 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20210

AT21#,CT21#,ST21#

 1
53420 - HINGE ASSY, HOOD, LH
53420-20200

AT21#,CT21#,ST21#

 1
53451 - ROD, HOOD SUPPORT
53440-21010

AT21#,CT21#,ST21#

 1
53440-20010

AT21#,CT21#,ST21#

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-16010

AT21#,CT21#,ST21#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-20060

AT21#,CT21#,ST21#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-16020

AT21#,CT21#,ST21#

外径=19

 1
53498-16020

AT21#,CT21#,ST21#

19 X 23

 1
53497-12050

AT21#,CT21#,ST21#

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-16020

AT21#,CT21#,ST21#

外径=19

 1
53498-16020

AT21#,CT21#,ST21#

19 X 23

 1
53497-12050

AT21#,CT21#,ST21#

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-16020

AT21#,CT21#,ST21#

外径=19

 1
53498-16020

AT21#,CT21#,ST21#

19 X 23

 1
53497-12050

AT21#,CT21#,ST21#

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-16020

AT21#,CT21#,ST21#

外径=19

 1
53498-16020

AT21#,CT21#,ST21#

19 X 23

 1
53497-12050

AT21#,CT21#,ST21#

厚さ=1.0

 4
53510 - LOCK ASSY, HOOD
53510-20560

AT21#,CT21#,ST21#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

AT21#,CT21#,ST21#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

AT21#,CT21#,ST21#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

AT21#,CT21#,ST21#

線径=2.0,ｺｲﾙ巻数=16.0

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

AT21#,CT21#,ST21#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

AT21#,CT21#,ST21#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

AT21#,CT21#,ST21#

線径=2.0,ｺｲﾙ巻数=16.0

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09057

AT21#,CT21#,ST21#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

AT21#,CT21#,ST21#

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20065

AT21#,CT21#,ST21#

線径=2.0,ｺｲﾙ巻数=16.0

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1602022

AT21#,CT21#,ST21#

BLACK,TRIM1#,4#

 1
53601-1602022

AT21#,CT21#,ST21#

BLACK,TRIM11,17

 1
53601-1602022

AT21#,CT21#,ST21#..EFI,TD

BLACK,TRIM1#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20570

AT21#,CT21#,ST21#

 1
Common parts
85373-32010
90105-08031
90119-06423
90119-08716
93567-55016
