AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

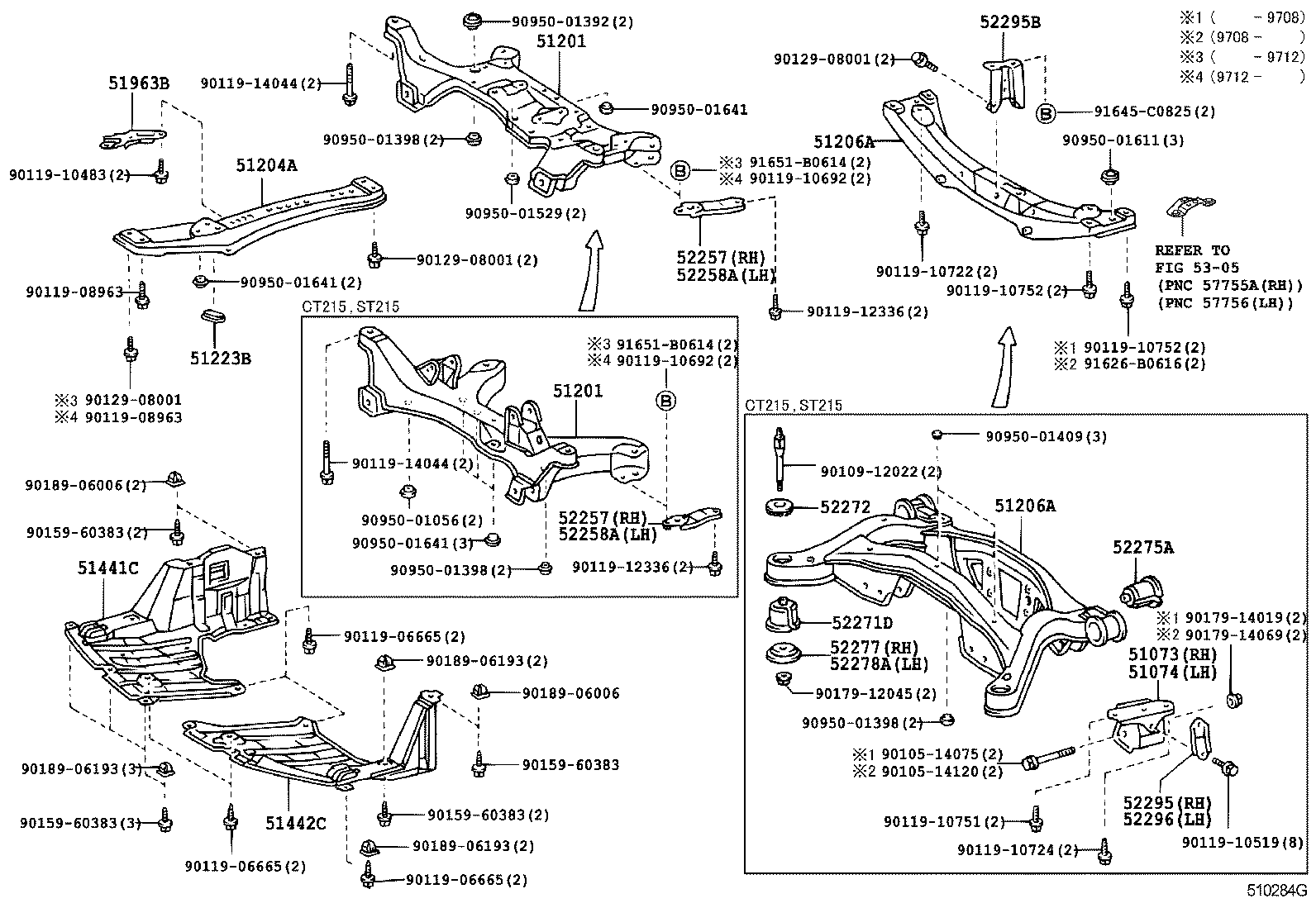

Click highlighted areas on diagram

diagram 51073 51074 51201 51201 51204A 51206A 51206A 51223B 51441C 51442C 51963B 52257 52257 52258A 52258A 52271D 52272 52275A 52277 52278A 52295 52295B 52296 5305 9010514075 9010514120 9010912022 9011906665 9011906665 9011906665 9011908963 9011908963 9011910483 9011910519 9011910692 9011910692 9011910722 9011910724 9011910751 9011910752 9011910752 9011912336 9011912336 9011914044 9011914044 9012908001 9012908001 9012908001 9015960383 9015960383 9015960383 9015960383 9017912045 9017914019 9017914069 9018906006 9018906006 9018906193 9018906193 9018906193 9095001056 9095001392 9095001398 9095001398 9095001398 9095001409 9095001529 9095001611 9095001641 9095001641 9095001641 91626B0616 91645C0825 91651B0614 91651B0614
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20320

AT21#,CT210,211,ST210

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20320

AT21#,CT210,211,ST210

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20111

AT21#,CT211,ST210

 1
51204-20110

AT21#,CT210,211,ST210

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20080

AT21#,CT210,211,ST210

 1
51206-21030

AT21#,CT211,ST210

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20080

AT21#,CT210,211,ST210

 1
51206-21030

AT21#,CT211,ST210

 1
51223B - COVER, ENGINE MOUNTING HOLE
51223-20050

AT21#,CT21#,ST21#

 1
51441C - COVER, ENGINE UNDER, RH
51441-20380

AT21#,CT21#,ST21#

 1
51442C - COVER, ENGINE UNDER, LH
51442-20450

AT21#,CT21#,ST21#

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-20130

AT21#,CT21#,ST21#

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20010

AT21#,CT210,211,ST210

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-20010

AT21#,CT210,211,ST210

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20010

AT21#,CT210,211,ST210

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-20010

AT21#,CT210,211,ST210

 1
52295B - BRACE, REAR SUSPENSION MEMBER, RH
52295-20030

AT21#,CT210,211,ST210

 1
Common parts
90105-14075
90105-14120
90109-12022
90119-06665
90119-08963
90119-10483
90119-10519
90119-10692
90119-10722
90119-10724
90119-10751
90119-10752
90119-12336
90119-14044
90129-08001
90159-60383
90179-12045
90179-14019
90179-14069
90189-06006
90189-06193
90950-01056
90950-01392
90950-01398
90950-01409
90950-01529
90950-01611
90950-01641
91626-B0616
91645-C0825
91651-B0614
Linked diagrams
5305
