AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT21#,CT210,211,ST210

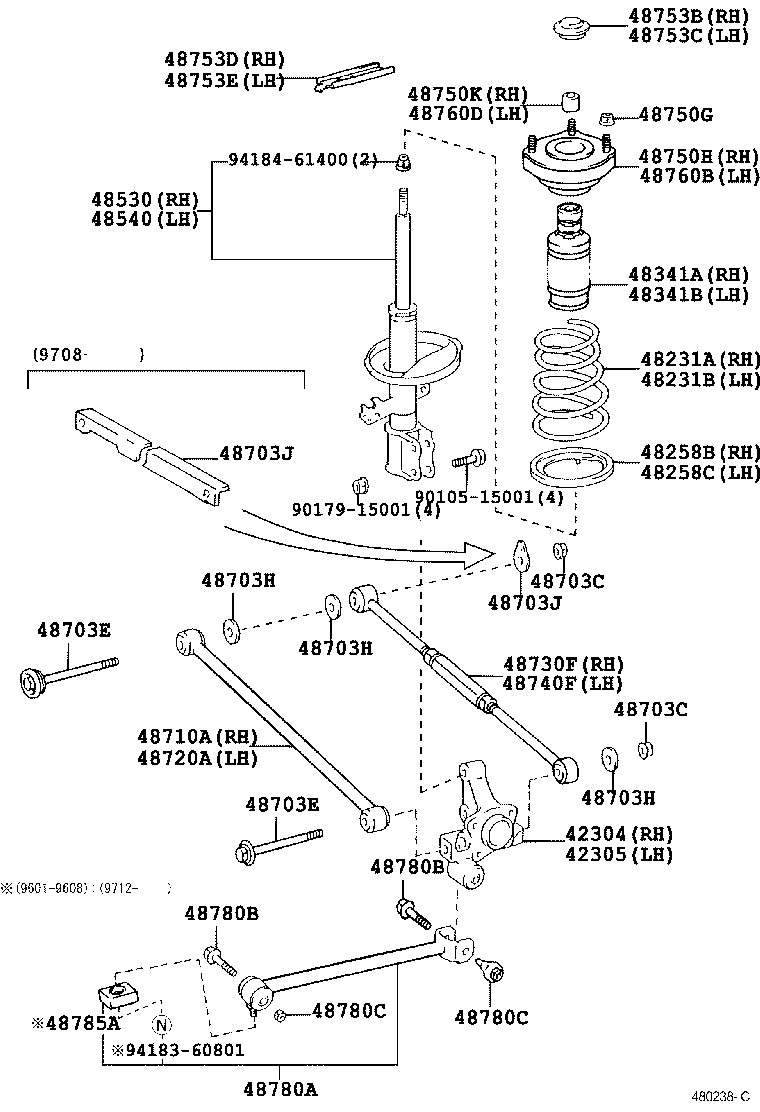

Click highlighted areas on diagram

diagram 42304 42305 48231A 48231B 48258B 48258C 48341A 48341B 48530 48540 48703C 48703C 48703E 48703E 48703H 48703H 48703H 48703J 48703J 48710A 48720A 48730F 48740F 48750G 48750H 48750K 48753B 48753C 48753D 48753E 48760B 48760D 48780A 48780B 48780B 48780C 48780C 48785A 9010515001 9017915001 9418360801 9418461400
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-20300

AT21#,CT210,211,ST210

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-20300

AT21#,CT210,211,ST210

 1
48231A - SPRING, COIL, REAR RH
48231-2D820

AT21#,CT211,ST210

 1
48231-2D830

AT21#,ST210

 1
48231B - SPRING, COIL, REAR LH
48231-2D820

AT21#,CT211,ST210

 1
48231-2D830

AT21#,ST210

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-32010

AT21#,CT21#,ST21#

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-32010

AT21#,CT21#,ST21#

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-20270

AT21#

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-20270

AT21#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-29735

AT21#

 1
48530-29505

AT21#

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-29295

AT21#

 1
48540-29185

AT21#

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT21#,CT210,211,ST210

 4
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019

AT21#,CT210,211,ST210

 4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-19001

AT21#,CT210,211,ST210

*14−1.50PX260−26,CARRIER SIDE

 2
90901-09001

AT21#,CT210,211,ST210

*14−1.50PX260−26,BODY SIDE

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90901-19001

AT21#,CT210,211,ST210

*14−1.50PX260−26,CARRIER SIDE

 2
90901-09001

AT21#,CT210,211,ST210

*14−1.50PX260−26,BODY SIDE

 2
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT21#,CT210,211,ST210

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT21#,CT210,211,ST210

 6
48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM)
90201-14017

AT21#,CT210,211,ST210

 6
48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM)
48715-20020

AT21#,CT210,211,ST210

 1
48715-20030

AT21#,CT210,ST210

 2
48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM)
48715-20020

AT21#,CT210,211,ST210

 1
48715-20030

AT21#,CT210,ST210

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20241

AT21#,CT210,211,ST210

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-20241

AT21#,CT210,211,ST210

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-20220

AT21#,CT210,211,ST210

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-20080

AT21#,CT210,211,ST210

 1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122

AT21#,CT21#,ST21#

 6
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-20150

AT21#,CT21#,ST21#

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15027

AT21#,CT21#,ST21#

 1
48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753-20040

AT21#,CT21#,ST21#

 1
48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48753-20040

AT21#,CT21#,ST21#

 1
48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH
48753-20070

AT21#,CT21#,ST21#

 1
48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH
48753-20070

AT21#,CT21#,ST21#

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-20150

AT21#,CT21#,ST21#

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15027

AT21#,CT21#,ST21#

 1
48780A - ROD ASSY, STRUT, REAR
48780-20200

AT21#,CT211,ST210

 2
48780-20160

AT21#,CT210,ST210

 2
48780-20190

AT21#,CT210,ST210

 2
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT21#,CT21#,ST21#

 4
48780B - BOLT(FOR STRUT ROD)
90119-12131

AT21#,CT21#,ST21#

 4
48780C - NUT(FOR STRUT ROD)
90179-12114

AT21#,CT21#,ST21#

BODY SIDE

 2
90179-12091

AT21#,CT21#,ST21#

CARRIER SIDE

 2
90179-12091

AT21#,CT21#,ST21#

 4
48780C - NUT(FOR STRUT ROD)
90179-12114

AT21#,CT21#,ST21#

BODY SIDE

 2
90179-12091

AT21#,CT21#,ST21#

CARRIER SIDE

 2
90179-12091

AT21#,CT21#,ST21#

 4
48785A - DAMPER, STRUD ROD DYNAMIC
48785-20010

AT21#,CT211,ST210

 2
48785-20010

AT21#,CT210,ST210

 2
Common parts
90105-15001
90179-15001
94183-60801
94184-61400
