AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT21#,ST21#

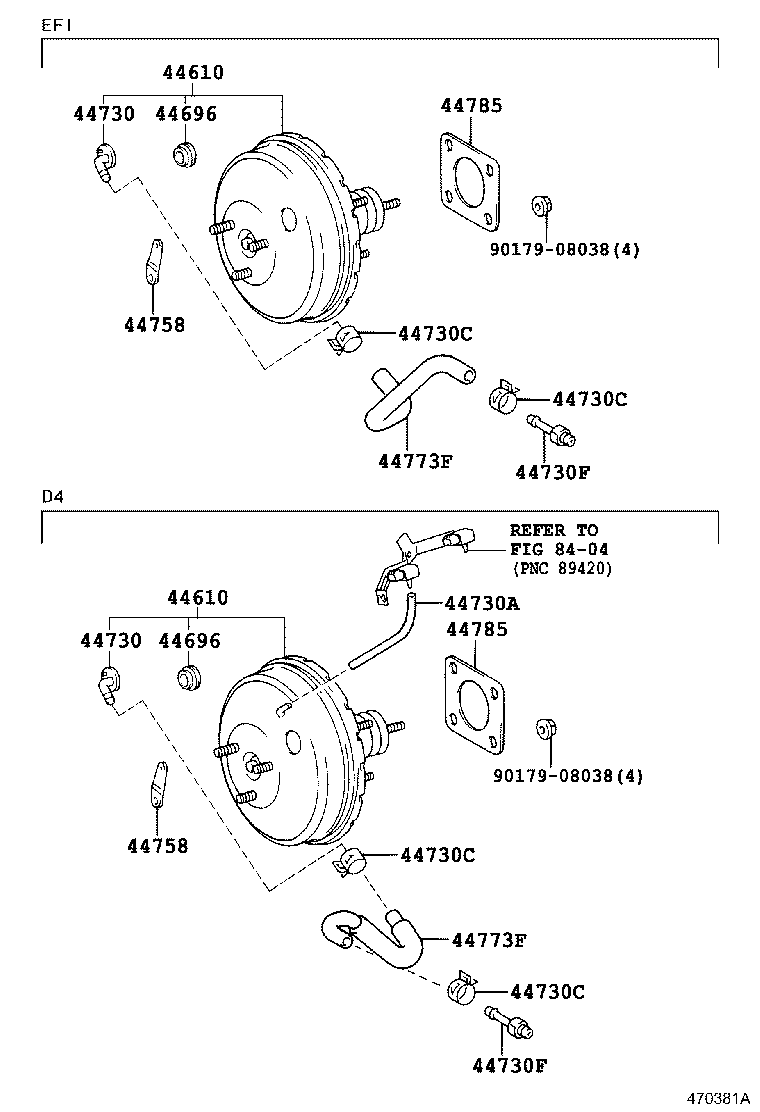

Click highlighted areas on diagram

diagram 44610 44610 44696 44696 44730 44730 44730A 44730C 44730C 44730C 44730C 44730F 44730F 44758 44758 44773F 44773F 44785 44785 8404 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2D750

AT21#

 1
44610-21070

AT21#

 1
44610 - BOOSTER ASSY, BRAKE
44610-2D750

AT21#

 1
44610-21070

AT21#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AT21#,ST210

 1
90480-24517

AT21#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

AT21#,ST210

 1
90480-24517

AT21#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

AT21#

 1
44730-14050

AT21#,ST210

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-28010

AT21#

 1
44730-14050

AT21#,ST210

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT21#,CT21#,ST21#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT21#,CT21#,ST21#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT21#,CT21#,ST21#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT21#,CT21#,ST21#

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AT21#,ST21#..EFI

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AT21#,ST21#..EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20290

AT21#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20290

AT21#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20810

AT21#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20810

AT21#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT21#,CT21#,ST21#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AT21#,CT21#,ST21#

 1
Common parts
90179-08038
Linked diagrams
8404
