AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT21#,CT210,211,ST210

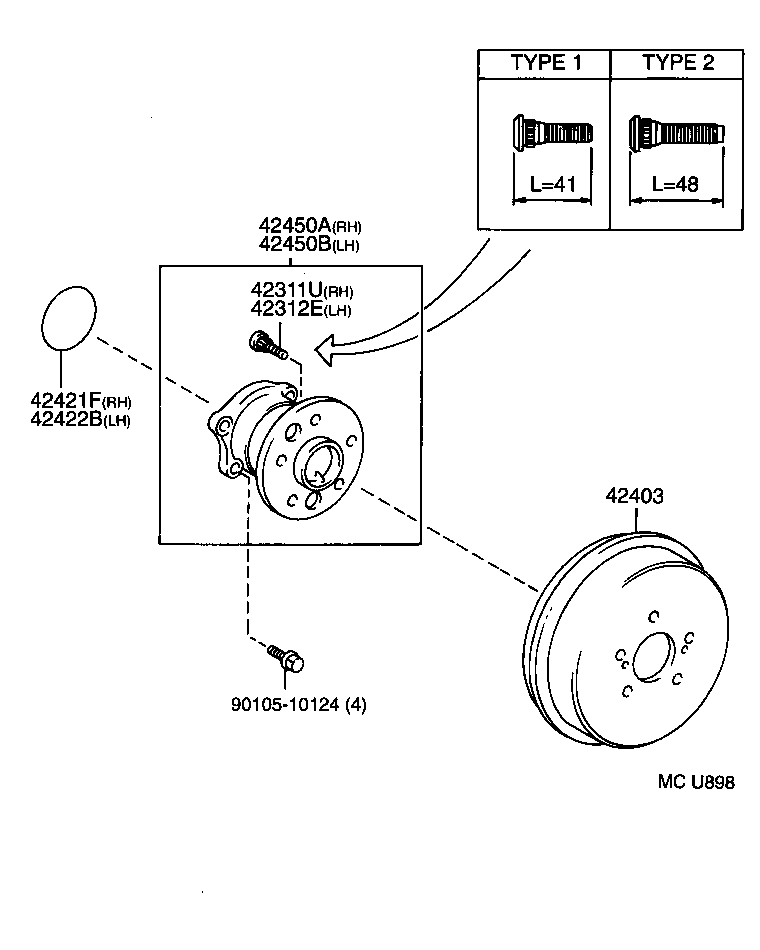

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42421F 42422B 42450A 42450B 9010510124
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

AT21#,CT210,211,ST210

TYPE 1

 5
90942-02070

AT21#,CT210,215,216,ST21#

TYPE 2

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

AT21#,CT210,211,ST210

TYPE 1

 5
90942-02070

AT21#,CT21#,ST21#

TYPE 2

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-20190

AT21#,CT210,211,ST210

 2
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-63006

AT21#,CT211,ST210

 1
90301-63003

AT21#,CT210,211,ST210

 1
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-63003

AT21#,CT210,211,ST210

 1
90301-63006

AT21#,CT211,ST210

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-20060

AT21#,CT210,211,ST210

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-20060

AT21#,CT210,211,ST210

 1
Common parts
90105-10124
