AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT21#..ATM

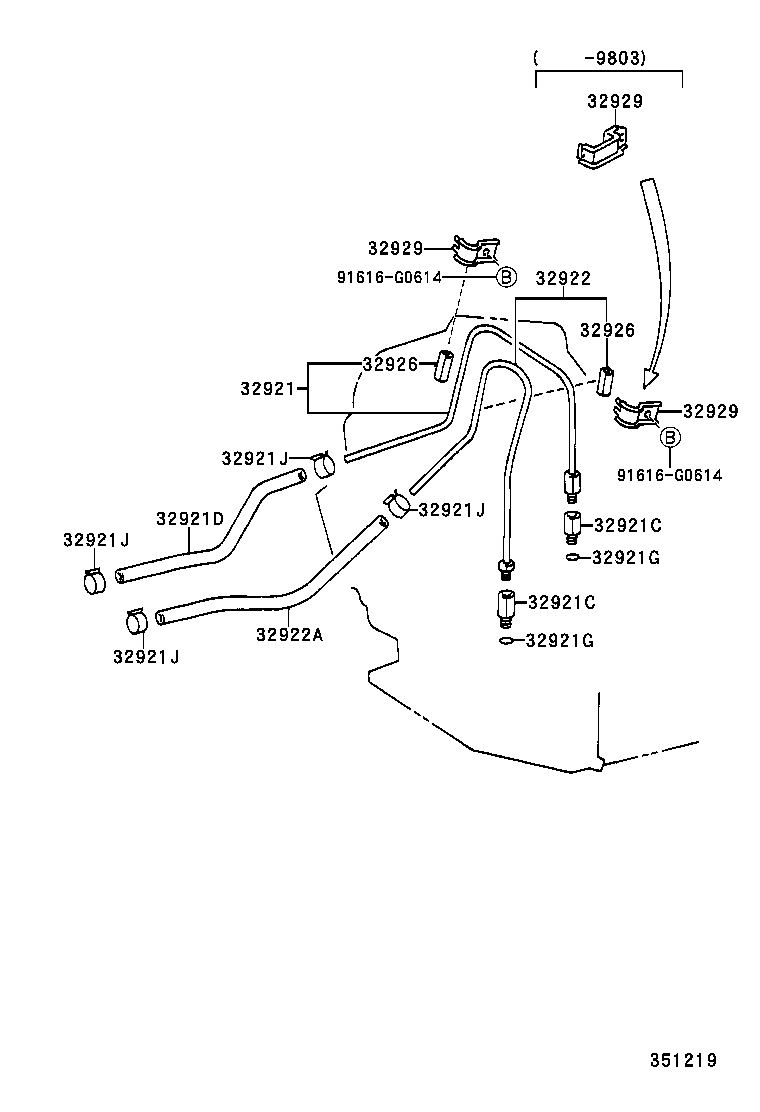

Click highlighted areas on diagram

A245E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32926 32926 32929 32929 32929 91616G0614 91616G0614
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-20410

AT21#..ATM

 1
32921-20470

AT21#..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

ST210..D4;AT21#..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16032

ST210..D4;AT21#..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-17117

ST210..D4;AT21#..ATM

 1
90445-17124

AT21#..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ST210..D4;AT21#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ST210..D4;AT21#..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ST210..D4;AT21#,ST215..ATM

 4
90467-16013

AT21#,ST210..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ST210..D4;AT21#,ST215..ATM

 4
90467-16013

AT21#,ST210..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ST210..D4;AT21#,ST215..ATM

 4
90467-16013

AT21#,ST210..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

ST210..D4;AT21#,ST215..ATM

 4
90467-16013

AT21#,ST210..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20420

ST210..D4;AT21#..ATM

 1
32922-20500

AT21#..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17124

AT21#..ATM

 1
90445-17117

AT21#..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST210..D4;AT21#..ATM

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

ST210..D4;AT21#..ATM

長さ=35,内径=10

 2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32924-20080

AT21#..ATM

 2
32929-22050

ST210..D4;AT21#..ATM

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32924-20080

AT21#..ATM

 2
32929-22050

ST210..D4;AT21#..ATM

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32924-20080

AT21#..ATM

 2
32929-22050

ST210..D4;AT21#..ATM

 1
Common parts
91616-G0614
