AT210-AEPMK (1996)
Toyota Corona

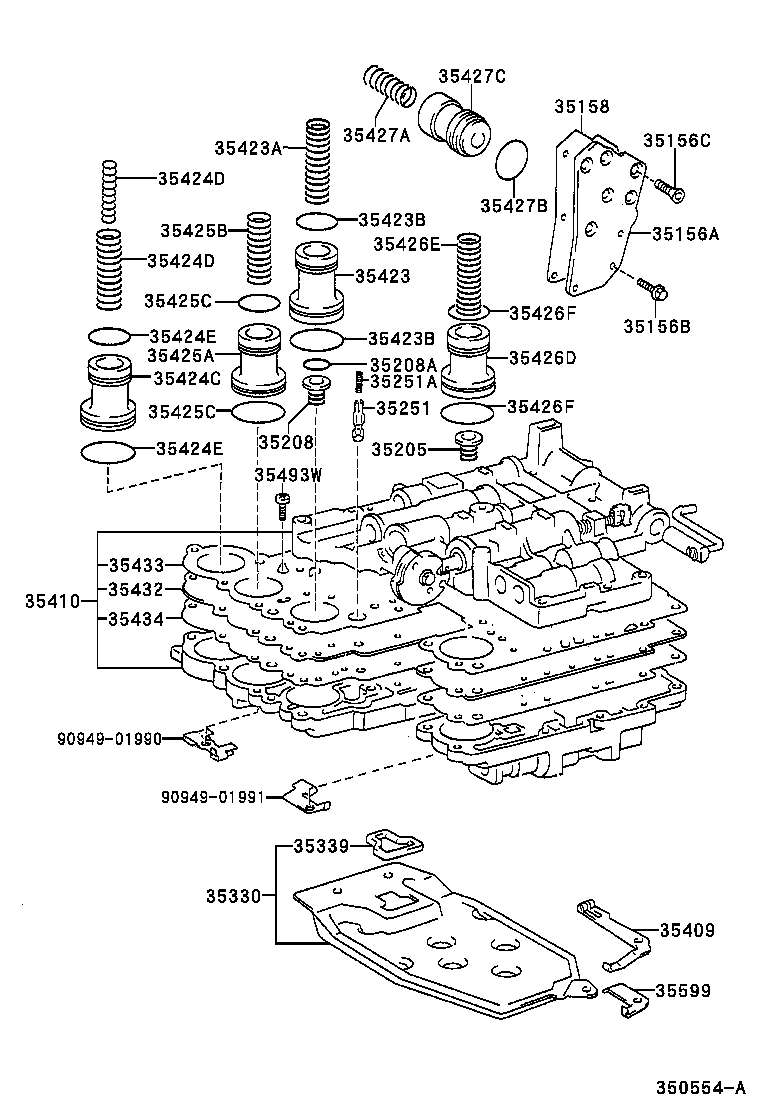

ILLUST NO. 1 OF 5(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35156-20010 |
AT21#,CT210,ST210..ATM..(EFI,TD) |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
AT21#,ST210..ATM |
3 | ||
| 90105-06049 |
AT21#,CT21#,ST21#..ATM |
3 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
AT21#,ST210..ATM |
6 | ||
| 90149-60041 |
AT21#,CT216,ST21#..ATM |
6 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35158-20020 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-20030 |
AT21#..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
ST210..D4;AT21#,CT210..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
ST210..D4;AT21#..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-20450 |
AT21#..ATM |
1 | ||
| 35410-20451 |
AT21#..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-12010 |
AT21#..ATM |
1 | ||
| 35423-12020 |
AT21#..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-23126 |
AT21#..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-22185 |
AT21#,CT210,ST210..ATM 上側 |
1 | ||
| 90301-21012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 90301-22185 |
AT21#,CT21#,ST21#..ATM 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-22185 |
AT21#,CT210,ST210..ATM 上側 |
1 | ||
| 90301-21012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 90301-22185 |
AT21#,CT21#,ST21#..ATM 上側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20136 |
AT21#..ATM 外側 |
1 | ||
| 90501-24027 |
ST210..D4;AT21#..ATM 内側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20136 |
AT21#..ATM 外側 |
1 | ||
| 90501-24027 |
ST210..D4;AT21#..ATM 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-23010 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-23194 |
AT21#,CT21#,ST21#..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-23194 |
AT21#,CT210,ST210..ATM 上側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-23010 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-23194 |
AT21#,CT21#,ST21#..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-23194 |
AT21#,CT210,ST210..ATM 上側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12040 |
ST210..D4;AT21#..ATM |
1 | ||
| 35425-12050 |
AT21#..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24028 |
ST210..D4;AT21#..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-26012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-26190 |
ST210..D4;AT21#,CT210..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-26012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 90301-26190 |
ST210..D4;AT21#,CT210..ATM 上側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12030 |
AT21#..ATM |
1 | ||
| 35423-12020 |
AT21#..ATM |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23129 |
AT210..ATM |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-22185 |
ST210..D4;AT21#..ATM 上側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 90301-21012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
AT21#,CT210,ST210..ATM 下側 |
1 | ||
| 90301-29187 |
AT21#,CT21#,ST21#..ATM 下側 |
1 | ||
| 90301-22185 |
ST210..D4;AT21#..ATM 上側 |
1 | ||
| 90301-29011 |
AT21#,ST210..ATM 下側 |
1 | ||
| 90301-21012 |
AT21#,ST210..ATM 上側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26078 |
ST210..D4;AT21#,CT211,216..ATM |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
AT21#,ST210..ATM |
1 | ||
| 90301-22185 |
AT21#,CT210,ST210..ATM |
1 | ||
| 90301-22185 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35427-13010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35427-12020 |
AT21#..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-20290 |
AT21#..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-20050 |
ST210..D4;AT21#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-20030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35493W - SEAT, VALVE BODY | ||||
| 35493-50040 |
ST210..D4;AT21#..ATM |
1 | ||
| 35493-50040 |
AT21#..ATM |
2 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| Common parts | ||||
| 90949-01990 | ||||
| 90949-01991 | ||||

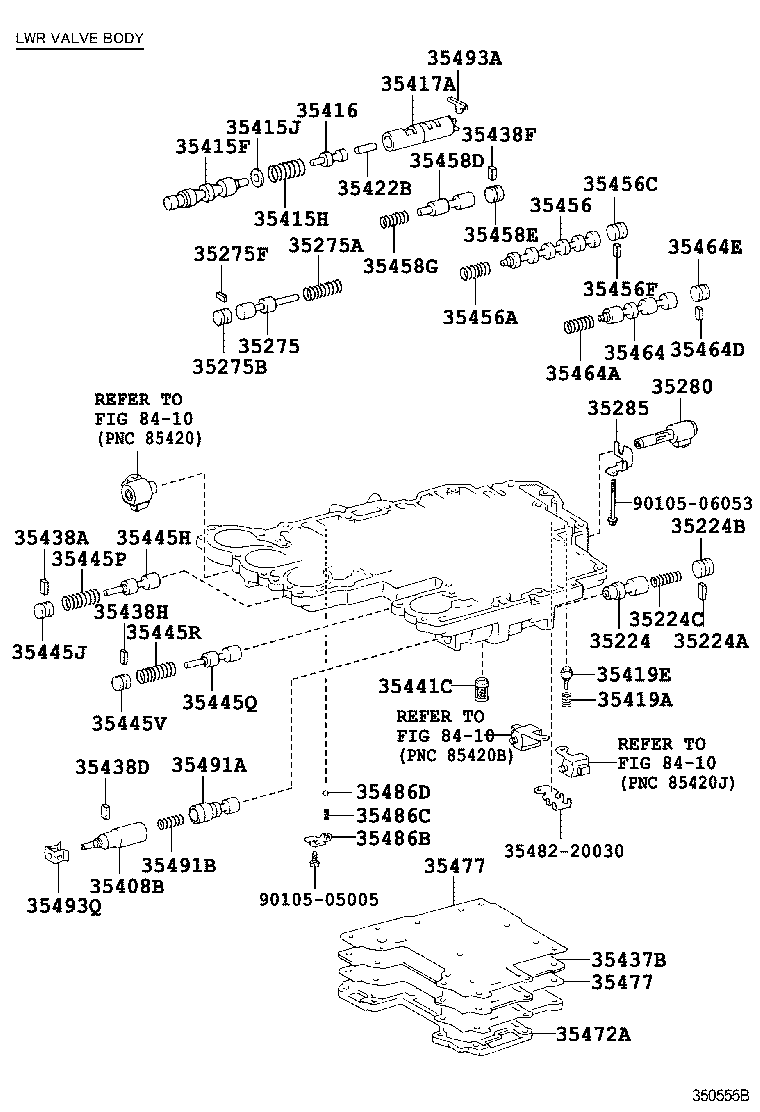

ILLUST NO. 3 OF 5(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03002 |
ST210..D4;AT21#..ATM |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
ST210..D4;AT21#..ATM |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-30010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
ST210..D4;AT21#..ATM |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35275F - KEY, STRAIGHT | ||||
| 90282-03002 |
ST210..D4;AT21#..ATM |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35280-20020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35408B - PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE | ||||
| 35408-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
ST210..D4;AT21#..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
ST210..D4;AT21#..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-08139 |
ST210..D4;AT21#..ATM |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
ST210..D4;AT21#..ATM |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-20070 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438A - SEAT, 2ND COAST MODULATOR VALVE SPRING | ||||
| 35438-22020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438D - SEAT, ACCUMULATOR CONTROL VALVE SPRING | ||||
| 35438-22020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438H - SEAT, LOW COAST MODULATOR VALVE SPRING | ||||
| 35438-22020 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35438-22020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-12020 |
ST210..D4;AT21#..ATM |
2 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10186 |
ST210..D4;AT21#..ATM |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09119 |
ST210..D4;AT21#..ATM |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08135 |
ST210..D4;AT21#..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05019 |
ST210..D4;AT21#..ATM |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03002 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90282-03002 |
AT21#,ST210..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
ST210..D4;AT21#..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12040 |
ST210..D4;AT21#..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-08135 |
ST210..D4;AT21#..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03002 |
AT21#,ST210..ATM |
1 | ||
| 90282-03002 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
ST210..D4;AT21#..ATM |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-20030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12050 |
AT21#,ST210..ATM |
2 | ||
| 35477-20020 |
ST210..D4;AT21#..ATM |
2 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-12050 |
AT21#,ST210..ATM |
2 | ||
| 35477-20020 |
ST210..D4;AT21#..ATM |
2 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-10143 |
ST210..D4;AT21#..ATM |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-08003 |
ST210..D4;AT21#..ATM |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08138 |
AT21#..ATM |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50030 |
ST210..D4;AT21#..ATM |
1 | ||
| Common parts | ||||
| 35482-20030 | ||||
| 90105-05005 | ||||
| 90105-06053 | ||||
| Linked diagrams | ||||
| 8410 | ||||

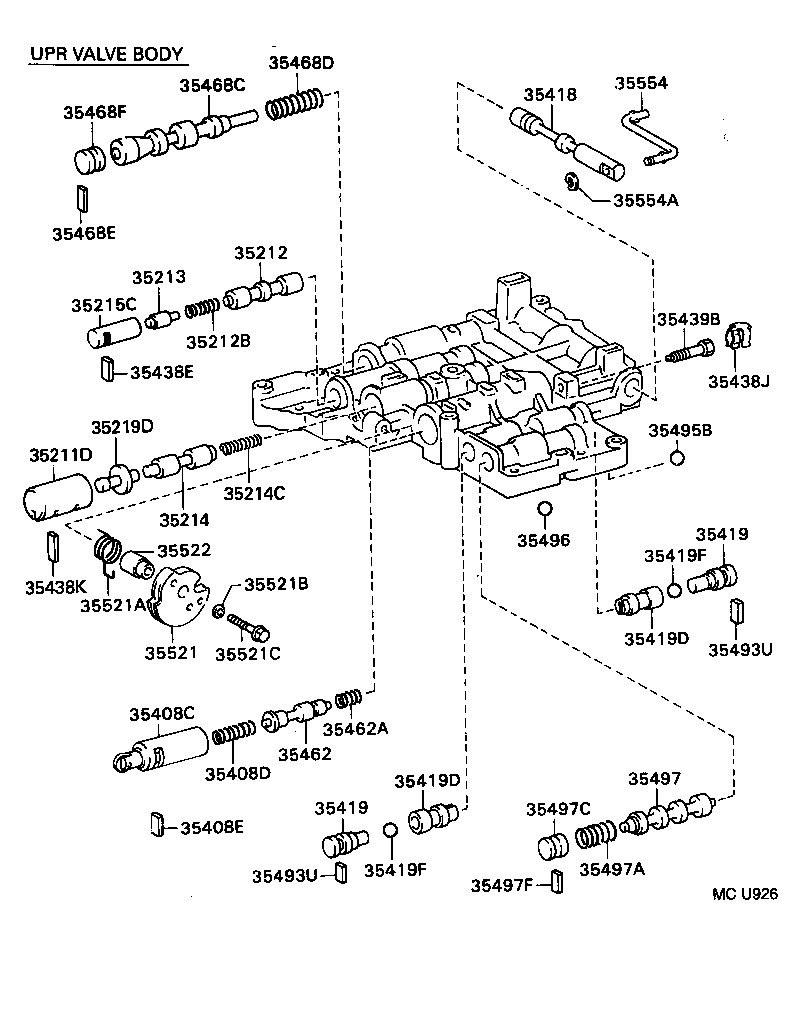

ILLUST NO. 2 OF 5(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-05010 |
ST210..D4;AT21#,CT210..ATM |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-06083 |
ST210..D4;AT21#..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-12040 |
ST210..D4;AT21#..ATM |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-20010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35408C - PLUG SUB-ASSY, THROTTLE VALVE | ||||
| 35408-12010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35408D - SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG) | ||||
| 90501-10119 |
ST210..D4;AT21#..ATM |
1 | ||
| 35408E - KEY, STRAIGHT (FOR THROTTLE VALVE PLUG) | ||||
| 90282-03015 |
ST210..D4;AT21#..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50020 |
ST210..D4;AT21#..ATM |
2 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50020 |
ST210..D4;AT21#..ATM |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50030 |
ST210..D4;AT21#..ATM |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50030 |
ST210..D4;AT21#..ATM |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
ST210..D4;AT21#..ATM |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
ST210..D4;AT21#..ATM |
2 | ||
| 35438E - SEAT, LOCK UP RELAY VALVE SPRING | ||||
| 35438-22020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35438-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35438K - SEAT, DETENT SPRING | ||||
| 35438-22020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35439B - SCREW, THROTTLE VALVE | ||||
| 35439-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-50010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90504-06002 |
ST210..D4;AT21#..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-13035 |
ST210..D4;AT21#..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03015 |
ST210..D4;AT21#..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 90282-03002 |
ST210..D4;AT21#..ATM |
2 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 90282-03002 |
ST210..D4;AT21#..ATM |
2 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
ST210..D4;AT21#..ATM |
7 | ||
| 35496 - BALL, CHECK, NO.2 | ||||
| 35496-22030 |
ST210..D4;AT21#..ATM |
2 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-08135 |
ST210..D4;AT21#..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05019 |
ST210..D4;AT21#..ATM |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
AT21#,ST210..ATM |
1 | ||
| 90282-03002 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-50010 |
AT21#..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90949-03004 |
ST210..D4;AT21#..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06076 |
ST210..D4;AT21#..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-12010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35554 - ROD, MANUAL VALVE CONNECTING | ||||
| 35554-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35554A - RING, E (FOR MANUAL VALVE CONNECTING ROD) | ||||
| 96160-00400 |
AT21#,CT210,ST210..ATM |
1 | ||
| 96160-00400 |
AT21#,CT21#,ST21#..ATM |
1 | ||

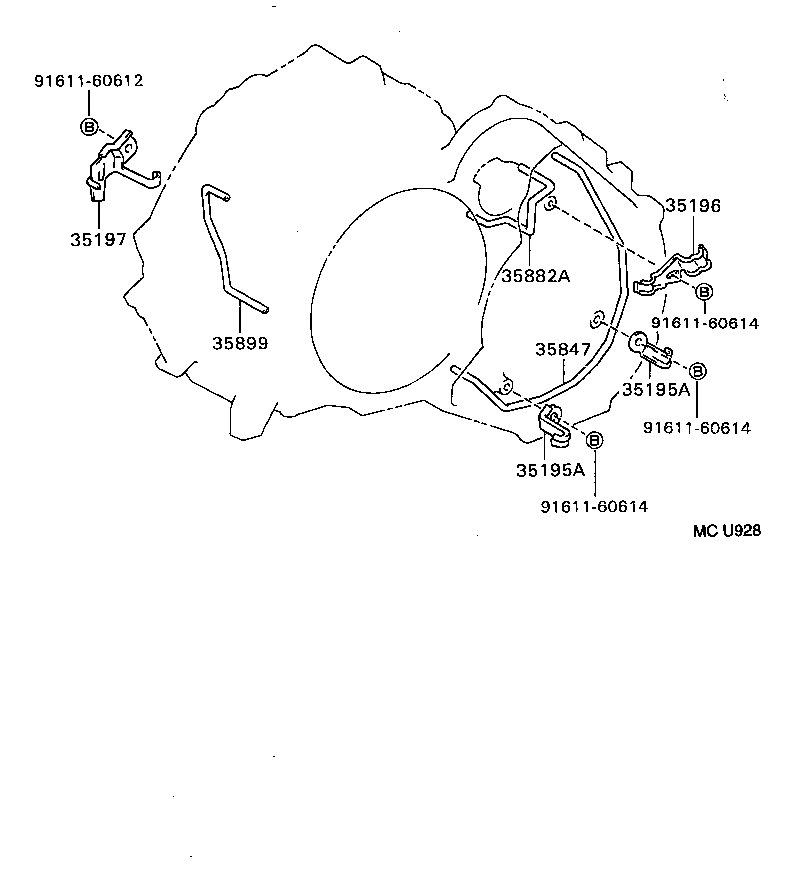

ILLUST NO. 4 OF 5(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ST210..D4;AT21#..ATM |
2 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ST210..D4;AT21#..ATM |
2 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-12040 |
ST210..D4;AT21#..ATM |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||

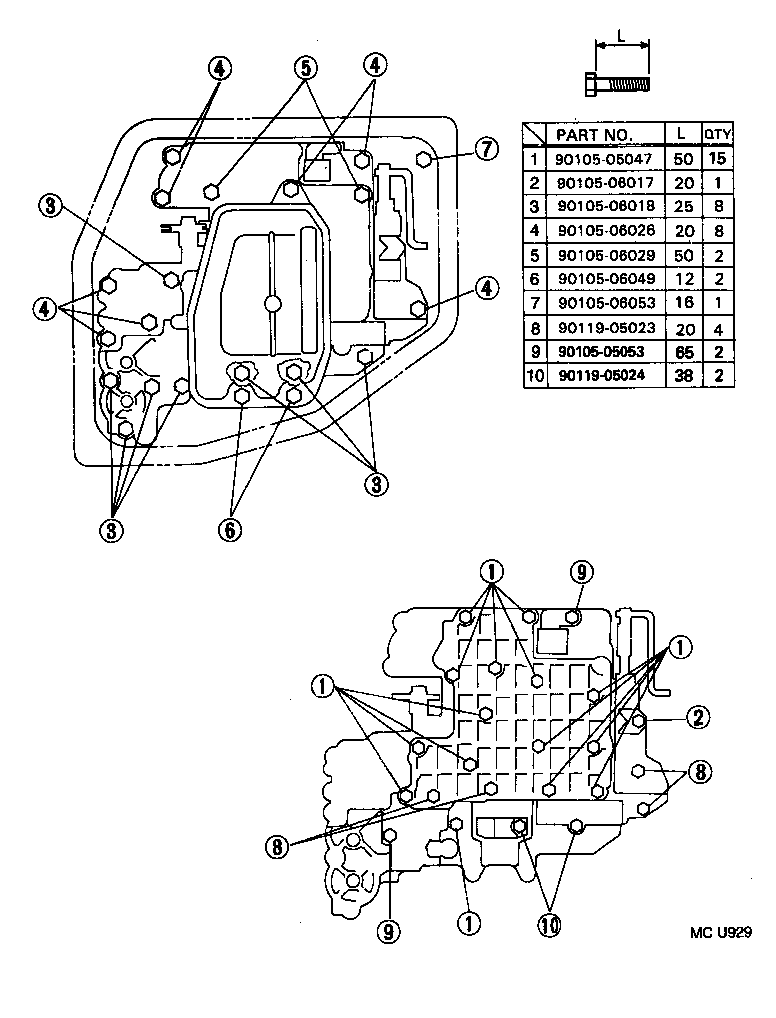

ILLUST NO. 5 OF 5(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05047 | ||||
| 90105-05053 | ||||
| 90105-06017 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06029 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90119-05023 | ||||
| 90119-05024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
