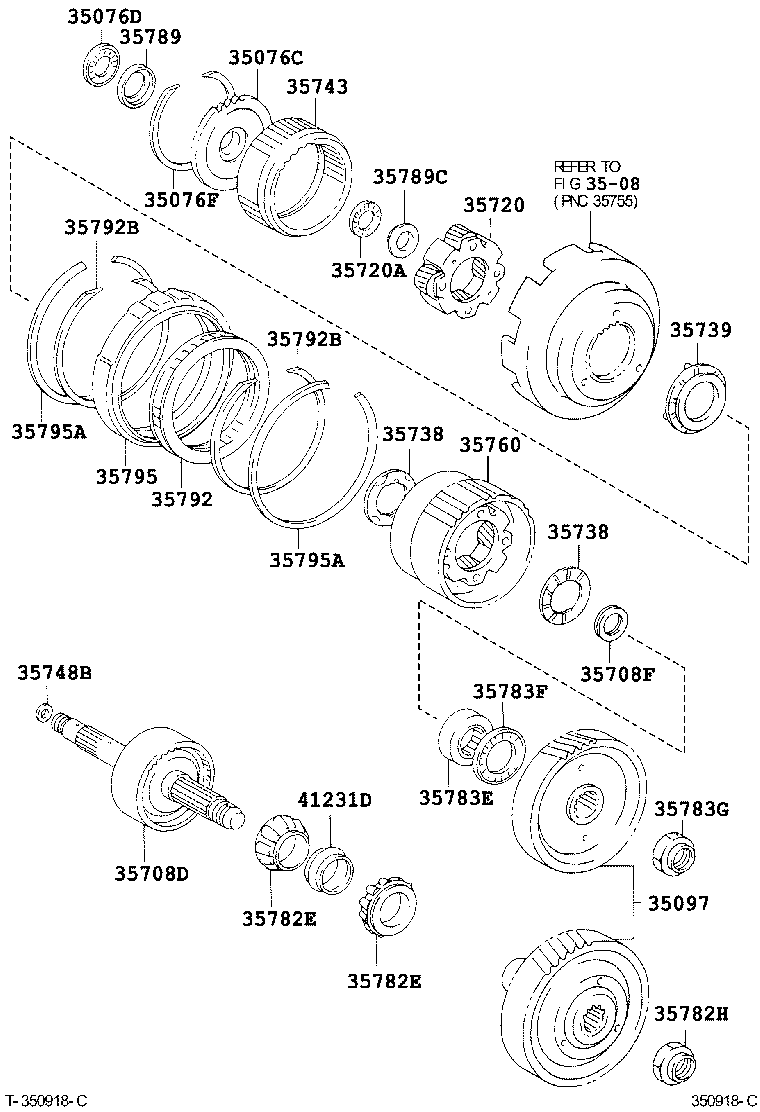

AT210-AEPMK (1996)
Toyota Corona
(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-25007 |
ST210..D4;AT21#..ATM |
1 | ||
| 90374-25009 |
AT21#,ST210..ATM |
1 | ||
| 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) | ||||
| 90521-99014 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-12050 |
ST210..D4;AT21#..ATM |
1 | ||
| 35708D - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-12070 |
ST210..D4;AT21#..ATM |
1 | ||
| 35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90374-22003 |
ST210..D4;AT21#..ATM |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-12030 |
AT21#..ATM |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-22009 |
AT21#,ST210..ATM |
1 | ||
| 90374-22004 |
ST210..D4;AT21#..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
AT21#..ATM |
2 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
AT21#..ATM |
2 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32011 |
AT21#,CT210,211,ST21#..ATM |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-32040 |
AT21#,CT210,211,ST21#..ATM |
1 | ||
| 35748B - RING, INTERMEDIATE SHAFT OIL SEAL | ||||
| 35748-32010 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35748-32010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-12020 |
AT21#..ATM |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90369-40006 |
ST210..D4;AT21#..ATM |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90369-40006 |
ST210..D4;AT21#..ATM |
2 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-22021 |
ST210..D4;AT21#..ATM |
1 | ||
| 35783E - BEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90365-37001 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 90365-37001 |
AT21#,CT210,ST210..ATM..(EFI,TD) |
1 | ||
| 90365-37008 |
AT21#..ATM |
1 | ||
| 35783F - BEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90374-41001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90374-41001 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35783G - NUT(FOR COUNTER DRIVEN GEAR) | ||||
| 90179-22021 |
ST210..D4;AT21#..ATM |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-12040 |
ST210..D4;AT21#..ATM |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-32060 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-32011 |
AT21#,CT210,ST21#..ATM..(EFI,TD) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
AT21#,CT210,211,216,ST21#..ATM |
2 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
AT21#,CT210,211,216,ST21#..ATM |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-12020 |
AT21#,ST210..ATM |
1 | ||
| 35795-12020 |
AT21#..ATM |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
AT21#,CT210,211,216,ST21#..ATM |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
AT21#,CT210,211,216,ST21#..ATM |
2 | ||
| 41231D - SPACER, DRIVE PINION BEARING | ||||
| 41231-12050 |
ST210..D4;AT21#..ATM |
1 | ||
| Linked diagrams | ||||
| 3508 | ||||
