AT210-AEPMK (1996)
Toyota Corona
Production
Jan 1996
-
Dec 2001
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )AT21#..ATM ; (9612- )D4

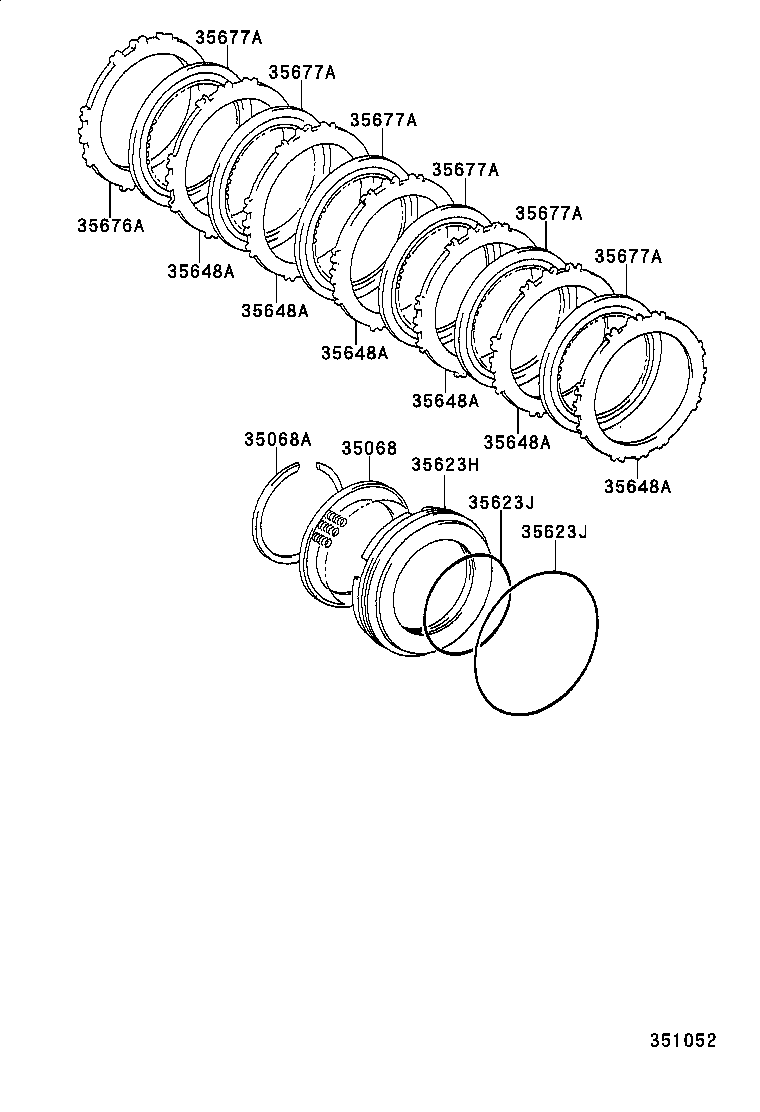

Click highlighted areas on diagram
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-12010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
AT21#,CT210,ST210..ATM |
1 | ||
| 90520-90001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-20020 |
AT21#..ATM |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
AT21#,CT210,ST210..ATM 内側 |
1 | ||
| 90301-94001 |
AT21#,CT21#,ST21#..ATM 内側 |
1 | ||
| 90301-99022 |
AT21#,CT210,211,216,ST21#..ATM 外側 |
1 | ||
| 90301-99131 |
AT21#,ST210..ATM 外側 |
1 | ||
| 90301-94004 |
AT21#,ST210..ATM 内側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
AT21#,CT210,ST210..ATM 内側 |
1 | ||
| 90301-94001 |
AT21#,CT21#,ST21#..ATM 内側 |
1 | ||
| 90301-99022 |
AT21#,CT210,211,216,ST21#..ATM 外側 |
1 | ||
| 90301-99131 |
AT21#,ST210..ATM 外側 |
1 | ||
| 90301-94004 |
AT21#,ST210..ATM 内側 |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AT21#..ATM |
5 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-12010 |
ST210..D4;AT21#..ATM 厚さ=3.5 |
1 | ||
| 35676-32010 |
AT21#,CT21#,ST21#..ATM 厚さ=3.5 |
1 | ||
| 35676-12030 |
AT21#,CT21#,ST21#..ATM 厚さ=3.5 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AT21#..ATM |
5 | ||
