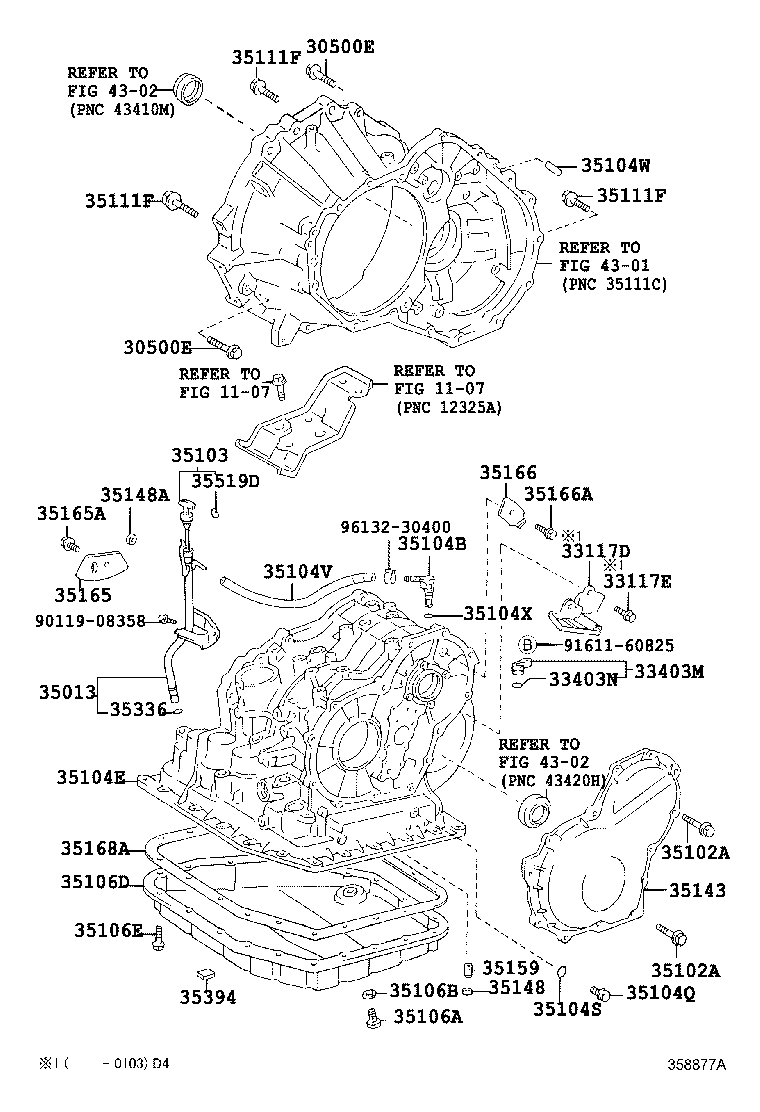

AT210-AEPMK (1996)
Toyota Corona
(9601- )AT21#..ATM ; (9612- )D4
A245E,A247E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AT21#..ATM *12−1.25PX55−30 |
1 | ||
| 91619-61245 |
AT21#..ATM *12−1.25PX45−30 |
2 | ||
| 90105-10077 |
AT21#,CT210,211,216,ST21#..ATM *10−1.25PX43−26 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AT21#..ATM *12−1.25PX55−30 |
1 | ||
| 91619-61245 |
AT21#..ATM *12−1.25PX45−30 |
2 | ||
| 90105-10077 |
AT21#,CT210,211,216,ST21#..ATM *10−1.25PX43−26 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12030 |
AT21#,CT210,ST210..ATM |
1 | ||
| 33117-12030 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 33117-12030 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AT21#,CT21#,ST215..ATM |
2 | ||
| 90105-08040 |
AT21#,CT210,211,216,ST21#..ATM |
2 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-35230 |
AT21#..ATM |
1 | ||
| 33403-35230 |
AT21#,ST215..ATM |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
AT21#,ST215..ATM |
1 | ||
| 96711-24030 |
AT21#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-20660 |
AT21#..ATM |
1 | ||
| 35013-20750 |
AT21#..ATM |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 91511-80625 |
ST210..D4;AT21#..ATM *6−1.0PX25−25 |
11 | ||
| 90105-06198 |
ST210..D4;AT21#..ATM *6−1.00PX32−32 |
2 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 91511-80625 |
ST210..D4;AT21#..ATM *6−1.0PX25−25 |
11 | ||
| 90105-06198 |
ST210..D4;AT21#..ATM *6−1.00PX32−32 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20380 |
AT21#..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03132 |
AT21#..ATM |
1 | ||
| 90930-03146 |
AT21#..ATM |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-20100 |
AT21#..ATM |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AT21#,CT210,ST210..ATM |
1 | ||
| 90341-08001 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90301-06196 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11031 |
AT21#,CT21#,ST215..ATM |
1 | ||
| 90447-11031 |
AT21#,CT210,ST210..ATM..(EFI,TD) |
1 | ||
| 90447-11031 |
AT21#..ATM |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10021 |
ST210..D4;AT21#..ATM |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
ST210..D4;AT21#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35178-30010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-12120 |
ST210..D4;AT21#..ATM |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
AT21#,CT210,ST210..ATM |
18 | ||
| 90119-06173 |
AT21#,CT21#,ST21#..ATM |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08288 |
ST210..D4;AT21#..ATM *8−1.28PX30−25 |
3 | ||
| 90105-08071 |
ST210..D4;AT21#..ATM *8−1.25PX30−25 |
14 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08288 |
ST210..D4;AT21#..ATM *8−1.28PX30−25 |
3 | ||
| 90105-08071 |
ST210..D4;AT21#..ATM *8−1.25PX30−25 |
14 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08288 |
ST210..D4;AT21#..ATM *8−1.28PX30−25 |
3 | ||
| 90105-08071 |
ST210..D4;AT21#..ATM *8−1.25PX30−25 |
14 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35148-16010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-12010 |
AT21#,CT216,ST21#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-20010 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35159-20010 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-12010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1) | ||||
| 90105-06049 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 90105-06049 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35166 - PLATE, TRANSMISSION CASE, NO.3 | ||||
| 35166-12020 |
AT21#,CT210,ST210..ATM |
1 | ||
| 35166-12020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35166-12020 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3) | ||||
| 90105-06049 |
AT21#,CT210,ST210..ATM |
1 | ||
| 90105-06049 |
AT21#,CT21#,ST21#..ATM |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-12030 |
ST210..D4;AT21#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AT21#,CT210,211,216,ST21#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AT21#,CT21#,ST21#..ATM |
2 | ||
| 35394-30011 |
AT21#,CT210,ST210..ATM |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20020 |
AT21#,ST210..ATM |
1 | ||
| 35519-30010 |
ST210..D4;AT21#..ATM |
1 | ||
| 35519-20020 |
ST210..D4;AT21#..ATM |
1 | ||
| 35519-20030 |
AT21#,ST210..ATM |
1 | ||
| 35519-30010 |
AT21#,ST210..ATM |
1 | ||
| Common parts | ||||
| 90119-08358 | ||||
| 91611-60825 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 4301 | ||||
| 4302 | ||||
