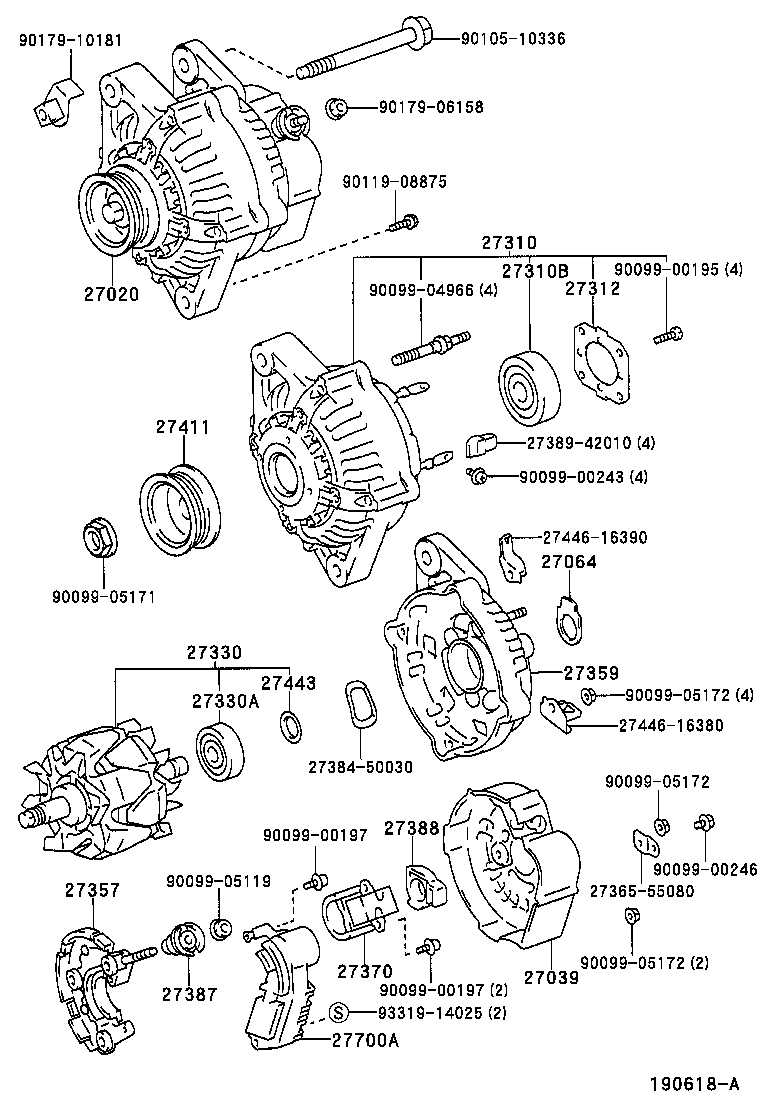

AT210-AEPMK (1996)
Toyota Corona
(9601- )4AFE,7AFE..ATM
12V 70A,80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-16390 |
4AFE,7AFE..AT21#..ATM 12V 70A |
1 | ||
| 27060-16440 |
4AFE,7AFE..AT21#..ATM 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27039-70470 |
3SFE..ST215;4AFE,7AFE..AT21#..ATM |
1 | ||
| 27039-55080 |
4AFE,7AFE,3SFE..AT21#,ST21#..ATM |
1 | ||
| 27039-55080 |
3SFE..ST215;4AFE,7AFE..AT21#..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27064-42010 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15180 |
4AFE,7AFE..AT21#..ATM |
1 | ||
| 27310-16430 |
4AFE,7AFE..AT21#..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 90099-10192 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27312-42010 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2CT..CT210..MTM;4AFE,7AFE,3SFE..AT21#,ST21#..ATM |
1 | ||
| 27330-16390 |
4AFE,7AFE..AT21#..ATM |
1 | ||
| 27330-16390 |
3SFE..ST215..MTM;4AFE,7AFE..AT21#..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21# |
1 | ||
| 90099-10140 |
4AFE,7AFE,2CT,3SFE..AT21#,CT21#,ST21# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
2CT..CT21#;4AFE,7AFE,3SFE..AT21#,ST21#..ATM |
1 | ||
| 27357-55080 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE..AT21#,CT216..ATM |
1 | ||
| 27357-55080 |
4AFE,7AFE..AT21#..ATM;3CTE,3SFE..CT211,ST215 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15180 |
4AFE,7AFE..AT21#..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27370-75060 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27387-42021 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27387-42021 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3CTE,3SFSE..AT21#,CT216,ST210..ATM |
1 | ||
| 27388-42010 |
3CTE,3SFE..CT211,ST215;4AFE,7AFE,3SFSE..AT21#,ST210..ATM |
1 | ||
| 27388-42010 |
2CT..CT21#;4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3SFE..ST215;4AFE,7AFE,3SFSE..AT21#,ST210..ATM |
1 | ||
| 27411-42030 |
4AFE,7AFE,3SF#..AT21#,ST21#..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
4AFE,7AFE,3SF#..AT21#,ST21# |
1 | ||
| 27700-74040 |
4AFE,7AFE,3SFE..AT21#,ST215 |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 27446-16380 | ||||
| 27446-16390 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10336 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
| 93319-14025 | ||||
