AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4AFE,7AFE

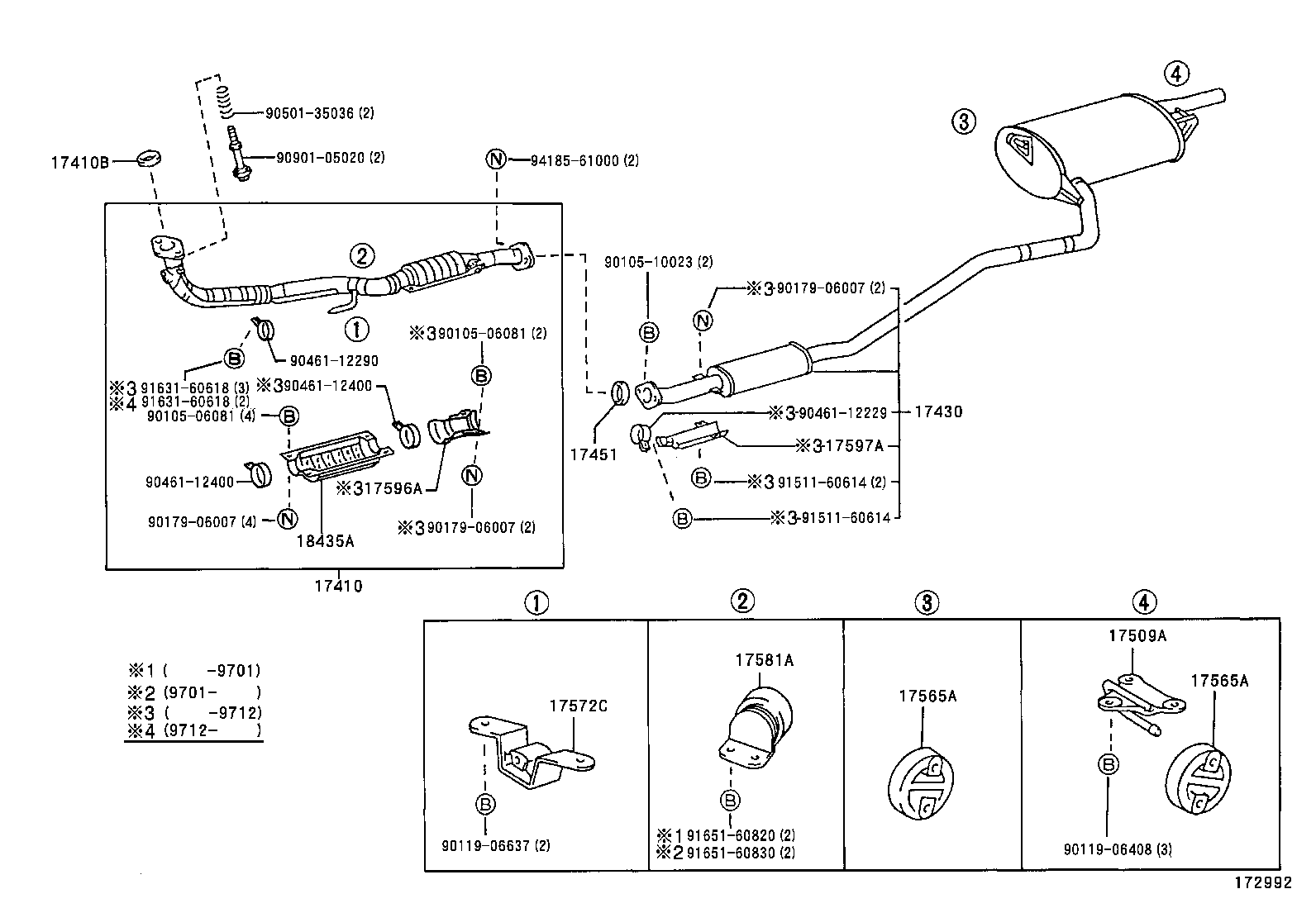

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17509A 17565A 17565A 17572C 17581A 17596A 17597A 18435A 9010506081 9010506081 9010510023 9011906408 9011906637 9017906007 9017906007 9017906007 9046112229 9046112290 9046112400 9046112400 9050135036 9090105020 9151160614 9151160614 9163160618 9163160618 9165160820 9165160830 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1A290

4AFE..AT210

 1
17410-1A601

4AFE..AT210

 1
17410-1A600

4AFE..AT210

 1
17410B - GASKET, EXHAUST PIPE
17451-16030

4AFE,7AFE..AT21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1A690

4AFE,7AFE,3SFE..AT21#,ST210

 1
17430-1D140

4AFE,7AFE..AT21#

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE,3CTE,3SFE..AT21#,CT211,ST215

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-16060

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT21#,ST21#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT210,211,ST210

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AFE,7AFE,2CT,3CTE,3SF#..AT21#,CT210,211,ST210

 2
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74430

4AFE,7AFE,3SF#..AT21#,ST210

 1
17581A - DAMPER, EXHAUST PIPE
17581-16030

4AFE,7AFE..AT21#

 1
17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4
17596-16180

4AFE,7AFE,3SFE..AT21#,ST210

 1
17597A - PROTECTOR, EXHAUST PIPE, LOWER NO.5
17597-16180

4AFE,7AFE,3SFE..AT21#,ST210

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-16170

4AFE,7AFE,3SF#..AT21#,ST210

 1
18435-16190

4AFE,7AFE,3SFSE..AT21#,ST210

 1
Common parts
90105-06081
90105-10023
90119-06408
90119-06637
90179-06007
90461-12229
90461-12290
90461-12400
90501-35036
90901-05020
91511-60614
91631-60618
91651-60820
91651-60830
94185-61000
