AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

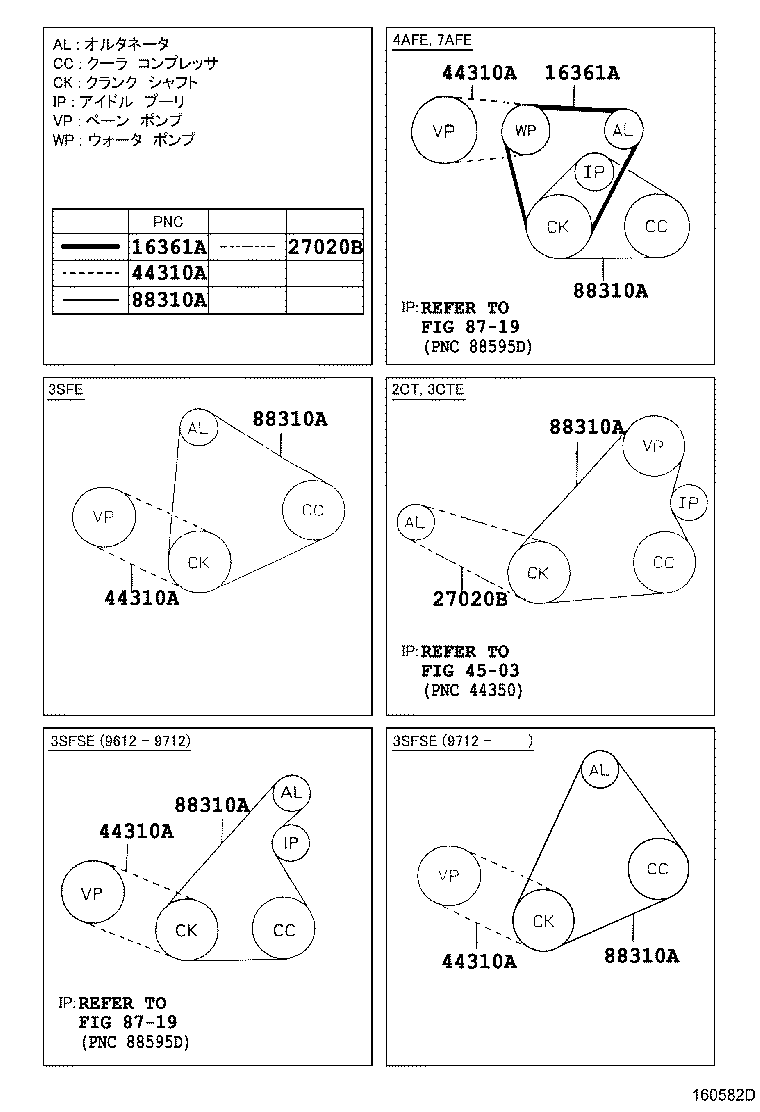

Click highlighted areas on diagram

diagram 16361A 16361A 27020B 27020B 44310A 44310A 44310A 44310A 44310A 4503 8719 8719 88310A 88310A 88310A 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90080-91055

4AFE,7AFE..AT21#

長さ=970,(L)

 1
99365-20970

4AFE,7AFE..AT21#

長さ=970

 1
99365-20970

4AFE,7AFE..AT21#

長さ=970,(J)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90080-91055

4AFE,7AFE..AT21#

長さ=970,(L)

 1
99365-20970

4AFE,7AFE..AT21#

長さ=970

 1
99365-20970

4AFE,7AFE..AT21#

長さ=970,(J)

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AT21#

長さ=630

 1
99363-80630

AT21#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AT21#

長さ=630

 1
99363-80630

AT21#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AT21#

長さ=630

 1
99363-80630

AT21#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AT21#

長さ=630

 1
99363-80630

AT21#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AT21#

長さ=630

 1
99363-80630

AT21#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02423

AT21#

長さ=865,BANDO

 1
90916-02433

AT21#

長さ=865,MITSUBOSHI

 1
90916-02424

AT21#

長さ=865,MITSUBOSHI

 1
Linked diagrams
4503
8719
