AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4AFE,7AFE..ATM

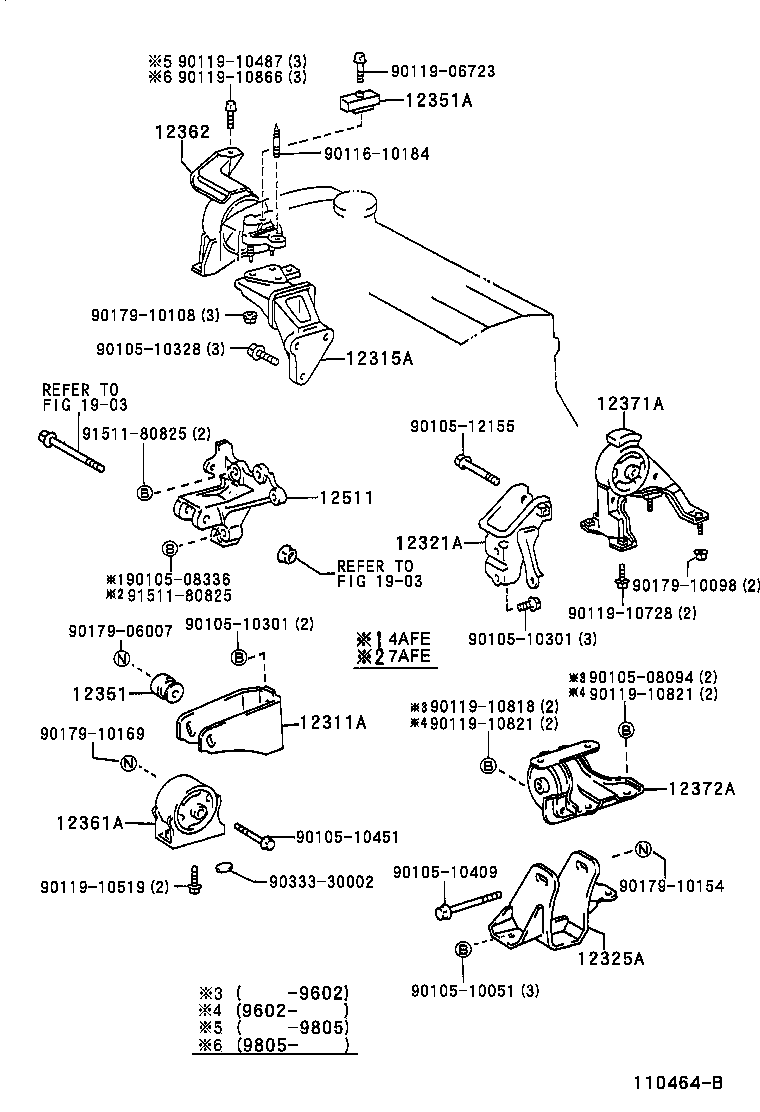

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351 12351A 12361A 12362 12371A 12372A 12511 1903 1903 9010508094 9010508336 9010510051 9010510301 9010510301 9010510328 9010510409 9010510451 9010512155 9011610184 9011906723 9011910487 9011910519 9011910728 9011910818 9011910821 9011910821 9011910866 9017906007 9017910098 9017910108 9017910154 9017910169 9033330002 9151180825 9151180825
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16170

4AFE,7AFE..AT21#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16061

4AFE,7AFE..AT21#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16270

4AFE,7AFE..AT21#..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16210

4AFE,7AFE..AT21#..ATM

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

4AFE,7AFE..AT21#

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-16050

4AFE,7AFE..AT21#

 1
12351-16040

4AFE,7AFE..AT21#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16290

4AFE,7AFE..AT21#..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-16120

4AFE,7AFE..AT21#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16350

4AFE,7AFE..AT21#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16350

4AFE,7AFE..AT21#..ATM

 1
12372-16351

4AFE,7AFE..AT21#..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15060

4AFE..AT210

 1
Common parts
90105-08094
90105-08336
90105-10051
90105-10301
90105-10328
90105-10409
90105-10451
90105-12155
90116-10184
90119-06723
90119-10487
90119-10519
90119-10728
90119-10818
90119-10821
90119-10866
90179-06007
90179-10098
90179-10108
90179-10154
90179-10169
90333-30002
91511-80825
Linked diagrams
1903
