AT210-AEPMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4AFE,7AFE

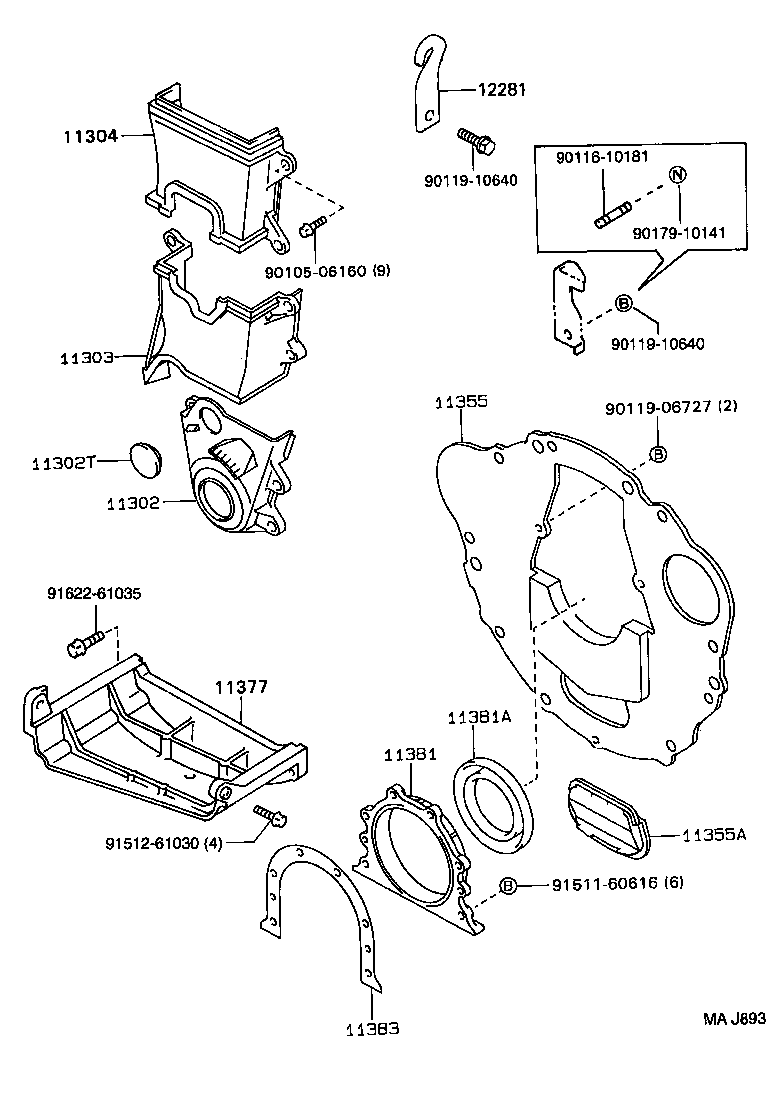

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11355A 11377 11381 11381A 11383 12281 9010506160 9011610181 9011906727 9011910640 9011910640 9017910141 9151160616 9151261030 9162261035
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-16040

4AFE,7AFE..AT21#

 1
11302T - PLUG, HOLE
90950-01783

4AFE,7AFE..AT21#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-16060

4AFE..AT210

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-16100

4AFE..AT210

 1
11355 - PLATE, REAR END
11355-15080

4AFE,7AFE..AT21#..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01264

4AFE,7AFE..AT21#..ATM

 1
11377 - STIFFENER, REAR END PLATE
11377-15012

4AFE..AT210

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AFE,7AFE..AT21#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

4AFE,7AFE..AT21#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-16010

4AFE,7AFE..AT21#

 1
12281 - HANGER, ENGINE, NO.1
12281-15050

4AFE,7AFE..AT21#

 1
Common parts
90105-06160
90116-10181
90119-06727
90119-10640
90179-10141
91511-60616
91512-61030
91622-61035
