AT210-AEMMK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

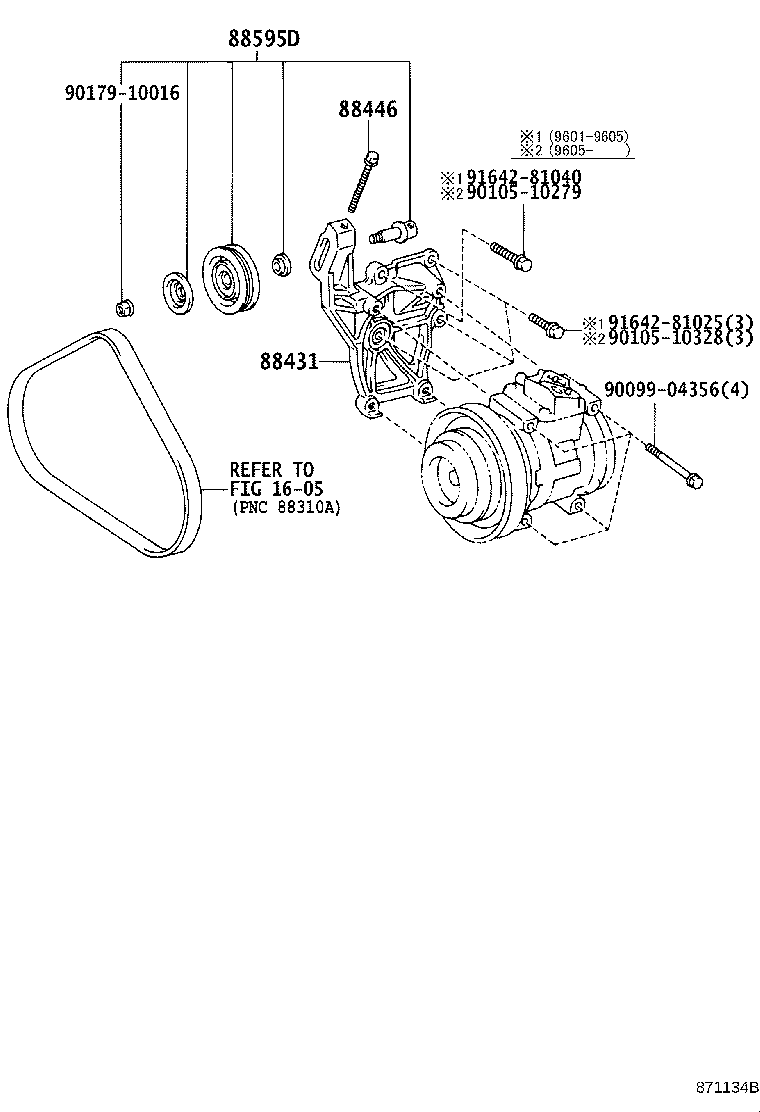

ILLUST NO. 1 OF 2(9601- )AT21#

Click highlighted areas on diagram

diagram 1605 88431 88446 88595D 9009904356 9010510279 9010510328 9017910016 9164281025 9164281040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-20390

AT21#

 1
88446 - BOLT, IDLE PULLEY
88446-36010

AT21#

 1
88446-12030

AT21#

 1
88595D - PULLEY ASSY, IDLE
88440-20170

AT21#

 1
88440-20160

AT21#

 1
Common parts
90099-04356
90105-10279
90105-10328
90179-10016
91642-81025
91642-81040
Linked diagrams
1605

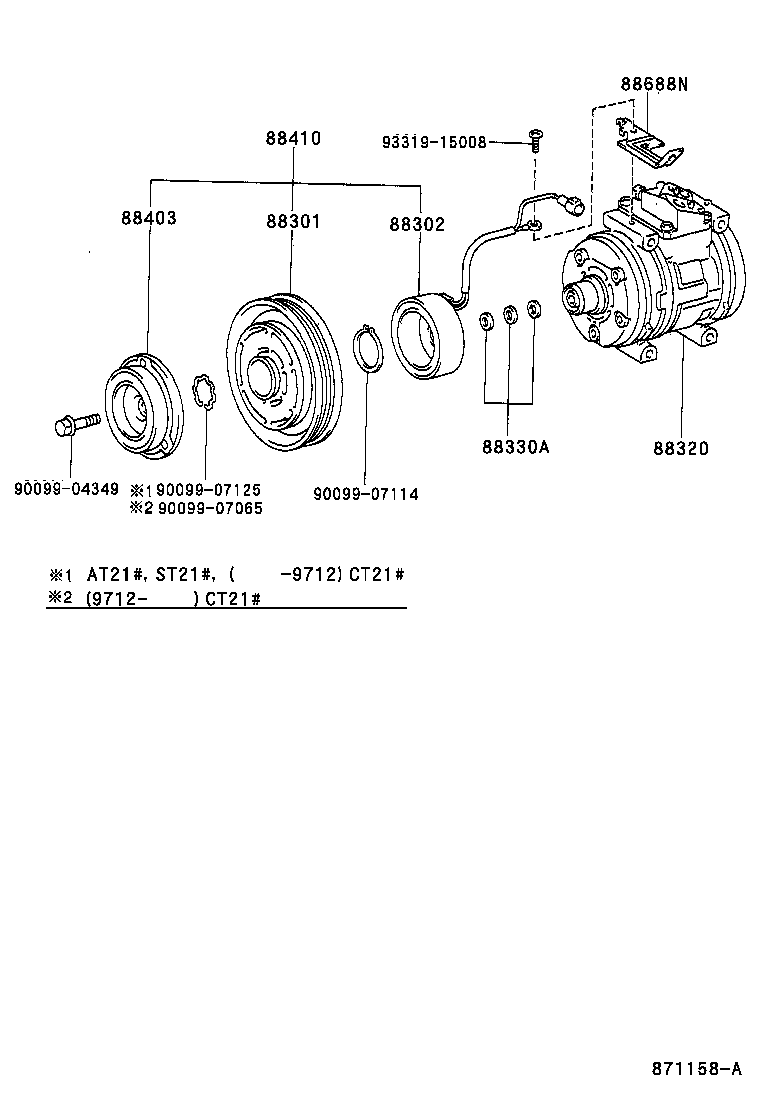

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88688N 9009904349 9009907065 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-1A060

AT21#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

AT21#,CT21#,ST21#

 1
88411-22310

AT21#,CT21#,ST21#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2B340

AT21#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT21#,CT21#,ST21#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AT21#,CT21#,ST21#

 1
88410 - CLUTCH ASSY, MAGNET
88410-2B170

AT21#

 1
88688N - BRACKET, COOLER
88688-2D760

AT21#

 1
Common parts
90099-04349
90099-07065
90099-07114
90099-07125
93319-15008
