AT190-AEPNK (1992)
Toyota Corona
(9305- )
ｲﾝﾊﾟﾈ ﾜｲﾔ(PNC 82141) ｽﾍﾟﾂｸ ﾘｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2B030 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B050 |
AT190,CT190,ST190,195..ATM..GX ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82141-2B030 |
AT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B031 |
AT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B741 |
AT190,ST190,195..ATM..GX ﾅｼ(ﾀｺﾒ-ﾀ) |
1 | ||
| 82141-2D530 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2D531 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2G190 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
ILLUST NO. 1 OF10(9202- )
ｴﾝｼﾞﾝﾙ-ﾑ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2G270 |
AT190 ｱﾘ(*66) |
1 | ||
| 82111-2G260 |
AT190 |
1 | ||
| 82111-2G271 |
AT190..GX,SELS ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) |
1 | ||
| 82111-2H320 |
AT190..GX ｱﾘ(*66) OR ｱﾘ(*FWD & *RWD) |
1 | ||
| 82111-2G640 |
AT190 |
1 | ||
| 82111-2H310 |
AT190 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-20020 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-09003 |
AT190,CT19#,ST190,195..GX,KYO,SELS 15A,ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 90982-08189 |
AT190,CT19#,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
AT190,CT19#,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
AT190,CT19#,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-20050 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D090 |
AT190,CT19#,ST19# COWL |
1 | ||
| 82817-2D040 |
AT190,CT19#,ST19# FENDER RH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D090 |
AT190,CT19#,ST19# COWL |
1 | ||
| 82817-2D040 |
AT190,CT19#,ST19# FENDER RH |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B710 | ||||
| 82711-50520 | ||||
| 85373-32010 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||

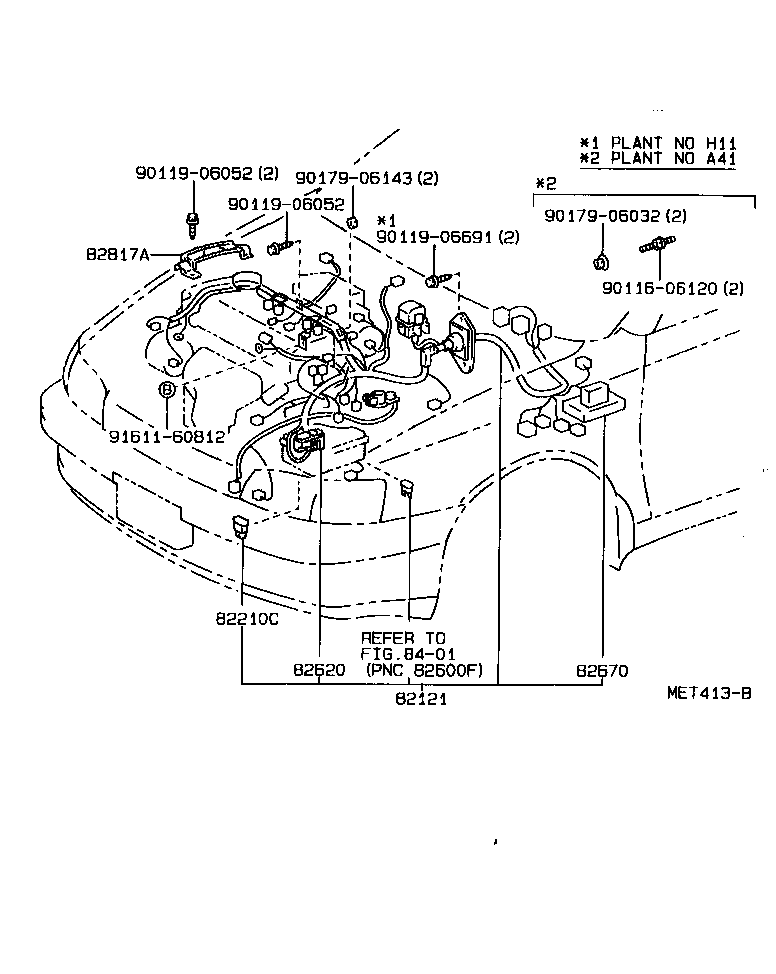

ILLUST NO. 2 OF10(9202- )AT190
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2L080 |
AT190..ATM |
1 | ||
| 82121-2G850 |
AT190..ATM |
1 | ||
| 82121-2G851 |
AT190..ATM |
1 | ||
| 82121-2G852 |
AT190..ATM |
1 | ||
| 82121-2G853 |
AT190..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-09003 |
AT190,CT19#,ST190,195..GX,KYO,SELS 15A,ｱﾘ(FR ﾌｵｸﾞ) |
1 | ||
| 90982-08189 |
AT190,CT19#,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
AT190,CT19#,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
AT190,CT19#,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
AT190,CT19#,ST19# |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-2B010 |
AT190,ST19# |
1 | ||
| 82670-2B010 |
AT190,ST19# |
1 | ||
| 82670-2B010 |
AT190,ST19# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AT190 |
1 | ||
| Common parts | ||||
| 90116-06120 | ||||
| 90119-06052 | ||||
| 90119-06691 | ||||
| 90179-06032 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(9202- )
ｴﾝｼﾞﾝﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78185-20080 | ||||
| 82711-1E070 | ||||
| 82711-24420 | ||||
| 82711-2B290 | ||||
| 82711-32660 | ||||
| 82711-95015 | ||||
| 82715-12020 | ||||
| 82715-12180 | ||||
| 82715-20110 | ||||
| 82715-20260 | ||||
| 82715-20270 | ||||
| 82715-20280 | ||||
| 82715-20300 | ||||
| 82715-20311 | ||||
| 82715-20320 | ||||
| 82715-20380 | ||||
| 82715-20390 | ||||
| 82715-20400 | ||||
| 82715-20410 | ||||
| 82715-20420 | ||||
| 82715-20430 | ||||
| 82715-20470 | ||||
| 82715-21050 | ||||
| 90119-06120 | ||||
| 90119-08320 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-B0614 | ||||
ILLUST NO. 4 OF10(9202- )
ﾊﾞﾂﾃﾘ ｹ-ﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20200 |
ST195;AT190,ST190,191..ATM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20200 |
ST195;AT190,ST190,191..ATM |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 8 OF10(9202- )
ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07264 |
AT190,ST19# LH FENDER |
1 | ||
| 90980-07299 |
AT190 ENGINE |
1 | ||
| 90980-07287 |
AT190,ST19# RH FENDER |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06390 | ||||
ILLUST NO. 6 OF10(9202- )
ﾙ-ﾌ & ﾄﾞｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2D591 |
AT190,CT190,ST190,195..GX ｱﾘ(*FRC) |
1 | ||
| 82151-2D350 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82151-2D590 |
AT190,CT190,ST190,195..GX ｱﾘ(*FRC) |
1 | ||
| 82151-2G290 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2D790 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82152-2D180 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20330 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82153-20310 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20320 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82154-20340 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20640 |
AT190;CT19#,ST190,195..GX,SELS |
1 | ||
| Common parts | ||||
| 82819-20360 | ||||
| 82819-23060 | ||||
| 90480-45007 | ||||
| 90980-45007 | ||||
ILLUST NO. 7 OF10(9202- )SED
ﾌﾛｱ,ｼ-ﾄ,ﾌﾕ-ｴﾙｹﾞ-ｼﾞ & ﾄﾗﾝｸﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2H350 |
ST190..ATM..GX;AT190,CT190,ST195..GX |
1 | ||
| 82161-2H350 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82161-2L260 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82161-2L280 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20540 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82162-20800 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-2B270 |
AT190,CT19#,ST190,195..GX,SELS |
1 | ||
| 82181-20810 |
AT190,CT190,ST190,195..GX |
1 | ||
| 82181-2B271 |
AT190,CT19#,ST190,195..GX,SELS |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-20270 |
AT190,CT19#,ST19#..SED |
1 | ||
| 82182-20290 |
AT190,CT19#,ST19#..EXS,GX,SELS ｱﾘ(*RFL) |
1 | ||
| 82182-20380 |
ST190..MTM..KYO;AT190,CT19#,ST19#..EXG,EXS,GX,SELS |
1 | ||
| 82182-20280 |
AT190,CT19#,ST19#..EXS,GX,SELS ｱﾘ(*RFL) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20070 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20100 |
AT190,CT190,ST190,191 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) 右側 |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..SED 右側 |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20090 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20090 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS COWL SIDE RH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) 右側 |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..SED 右側 |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20090 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20090 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS COWL SIDE RH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) 右側 |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..SED 右側 |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20090 |
ST190..SED..ATM;AT190,CT19#,ST191,195..SED;ST190..MTM..(EXG,EXS,SELS) INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS CTR PILLAR RH |
1 | ||
| 82666-20010 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS 右側 |
1 | ||
| 82666-20090 |
ST190..MTM..(EXG,EXS,SELS);ST190..ATM..(EXG,EXS,GX,SELS);AT190,CT19#,ST191,195..EXG,EXS,GX,SELS INSTRUMENT WIRE |
1 | ||
| 82666-20090 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS COWL SIDE RH |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20020 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS |
1 | ||
| Common parts | ||||
| 90119-06049 | ||||
| 90119-06067 | ||||
ILLUST NO. 9 OF10(9202- )
ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20050 |
AT190,CT19#,ST19# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20100 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20100 |
AT190,CT19#,ST190,195..GX,KYO,SELS |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20050 |
AT190,CT19#,ST19# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT190,CT19#,ST19# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20100 |
AT190,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 82981-20050 | ||||
| 82982-20090 | ||||
| 82982-20100 | ||||
| 82983-20050 | ||||
| 82984-20010 | ||||
| 82991-20100 | ||||
ILLUST NO. 5 OF10(9202- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2B030 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B050 |
AT190,CT190,ST190,195..ATM..GX ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82141-2B030 |
AT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B031 |
AT190,ST190,195..ATM..GX |
1 | ||
| 82141-2B741 |
AT190,ST190,195..ATM..GX ﾅｼ(ﾀｺﾒ-ﾀ) |
1 | ||
| 82141-2D530 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2D531 |
AT190,CT190,ST190,195..ATM..GX |
1 | ||
| 82141-2G190 |
AT190,CT190,ST190..GX ﾙｼｱ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
AT190,CT19#,ST19# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 82666-20040 |
AT190,CT19#,ST19# NO.3 |
1 | ||
| 82666-20070 |
AT190,CT19#,ST19# NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20070 |
AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 NO.1 |
1 | ||
| 82666-20040 |
AT190,CT19#,ST19# NO.3 |
1 | ||
| 82666-20070 |
AT190,CT19#,ST19# NO.1 |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20890 |
AT190,CT19#,ST19# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20230 |
AT190,CT19#,ST19# |
1 | ||
| 82821-20230 |
AT190,CT19#,ST190,195..GX,SELS |
1 | ||
| Common parts | ||||
| 82711-2B870 | ||||
| 90119-06390 | ||||
| 90179-06026 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
