AT190-AEPNK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )

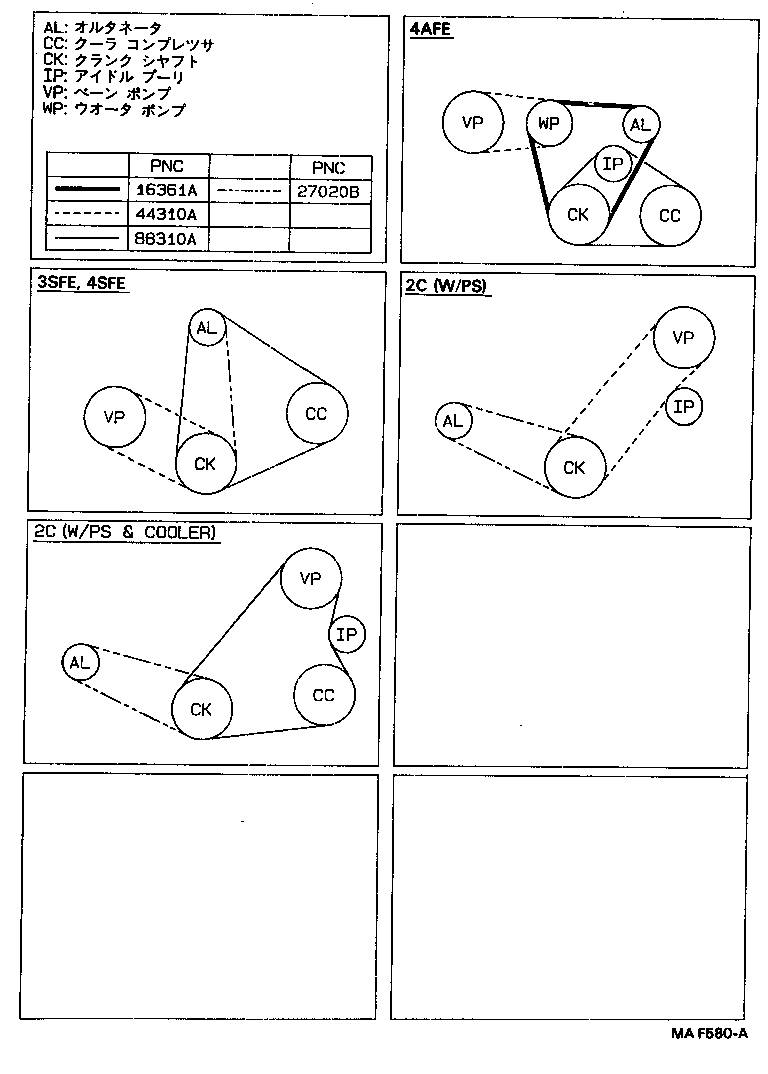

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-20970

4AFE..AT190

 1
44310A - BELT, V(FOR VANE PUMP)
99363-80630

AT190

長さ=630

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-20870

AT190

長さ=870

 1
