AT190-AEPMK (1992)
Toyota Corona
Production
Feb 1992
-
Jan 1996
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )AT190

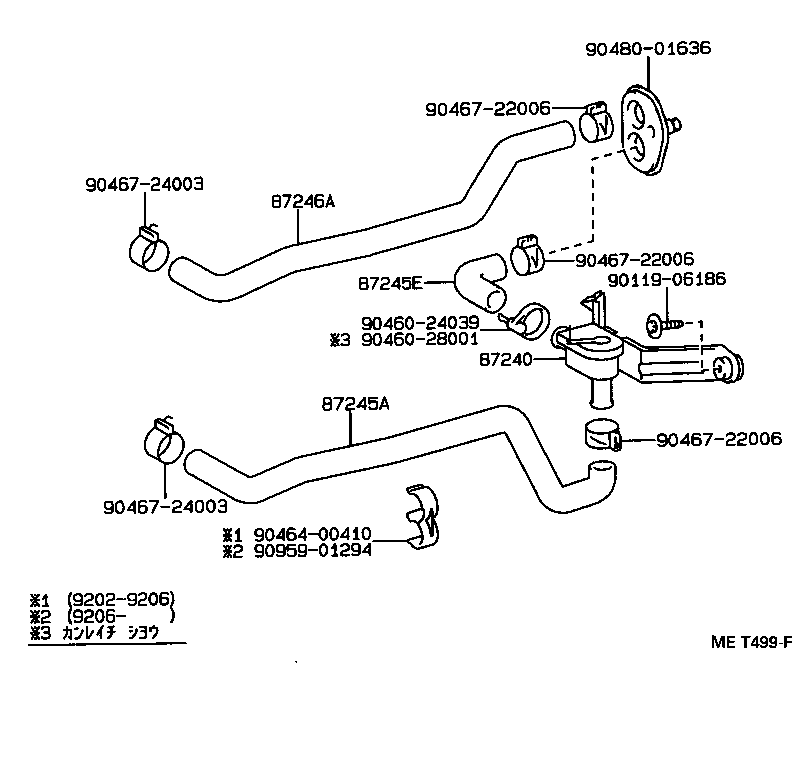

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-20370 |
AT190,CT19#,ST19# |
1 | ||
| 87240-20390 |
AT190 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2B630 |
AT190 |
1 | ||
| 87245-2B820 |
AT190 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2B810 |
AT190 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87245-2B610 |
AT190,CT19#,ST19# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2B640 |
AT190 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90460-24039 | ||||
| 90460-28001 | ||||
| 90464-00410 | ||||
| 90467-22006 | ||||
| 90467-24003 | ||||
| 90480-01636 | ||||
| 90959-01294 | ||||
