Toyota Corona AT190 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
CORONA
AT190-AEPEK (1992)
5201 - FRONT BUMPER & BUMPER STAY

AT190-AEPEK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996

Engine 4AFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9202-9402)

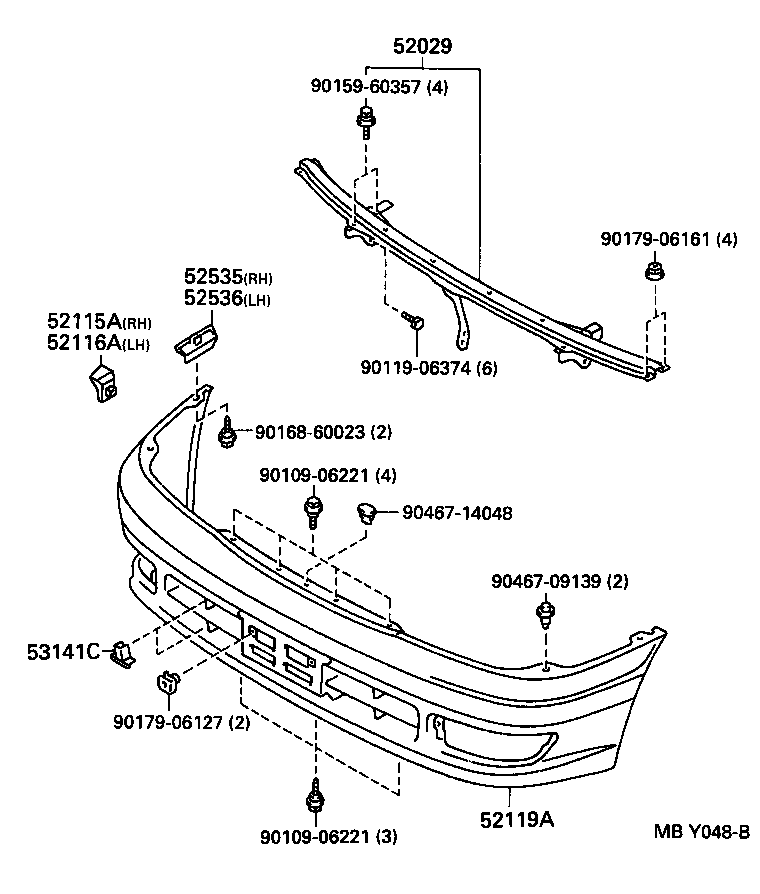

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52119A - COVER, FRONT BUMPER
52119-2B020A1	AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046	02/1992 - 03/1992	1
52119-2B020E1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS LIGHT BEIGE ME,4M3	02/1992 - 02/1994	1
52119-2B020H0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742	02/1992 - 02/1994	1
52119-2B020A0	AT190,CT19#,ST19# SUPER WHITE 2,040	02/1992 - 02/1994	1
52119-2B020D1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1	02/1992 - 02/1994	1
52119-2B260A0	AT190,CT19#,ST19# SUPER WHITE 2,040	02/1994 - 01/1996	1
52119-2B260A1	AT190,ST19#..EXG,EXS,SELS WARM GRAY PM,046	02/1994 - 01/1996	1
52119-2B020B0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183	02/1992 - 02/1994	1
52119-2B020G0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7	02/1992 - 02/1994	1
52119-2B260C0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK ME,205	02/1994 - 01/1996	1
52119-2B260B1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.BL.GRAY ME,183	02/1994 - 01/1996	1
52119-2B020A1	CT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046	03/1992 - 02/1994	1
52119-2B020E0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS DK.GRAYISH BROWN ME,4H7	02/1992 - 02/1994	1
52119-2B260D1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS MAGENTA MC,3L3	02/1994 - 01/1996	1
52119-2B260H0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.TURQUOISE MC,742	02/1994 - 01/1996	1
52119-2B260B0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS LT.GRAIGE ME,1A2	02/1994 - 01/1996	1
52119-2B260G0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7	02/1994 - 01/1996	1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-20090	AT190,CT19#,ST19#	02/1992 - 02/1994	1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-20060	AT190,CT19#,ST19#	02/1992 - 02/1994	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050	AT190,CT19#,ST19#	02/1992 - 01/1996	1
Common parts
90109-06221
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-18009
90467-18011
Linked diagrams
8101

(9402- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52119A - COVER, FRONT BUMPER
52119-2B020A1	AT190,CT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046	02/1992 - 03/1992	1
52119-2B020E1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS LIGHT BEIGE ME,4M3	02/1992 - 02/1994	1
52119-2B020H0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK TORQUOISE MICA,742	02/1992 - 02/1994	1
52119-2B020A0	AT190,CT19#,ST19# SUPER WHITE 2,040	02/1992 - 02/1994	1
52119-2B020D1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK WINE MICA M,3K1	02/1992 - 02/1994	1
52119-2B260A0	AT190,CT19#,ST19# SUPER WHITE 2,040	02/1994 - 01/1996	1
52119-2B260A1	AT190,ST19#..EXG,EXS,SELS WARM GRAY PM,046	02/1994 - 01/1996	1
52119-2B020B0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DARK BLUEISH GRAY ME,183	02/1992 - 02/1994	1
52119-2B020G0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7	02/1992 - 02/1994	1
52119-2B260C0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 BLACK ME,205	02/1994 - 01/1996	1
52119-2B260B1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.BL.GRAY ME,183	02/1994 - 01/1996	1
52119-2B020A1	CT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS WARM GRAY PEARL MICA,046	03/1992 - 02/1994	1
52119-2B020E0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS DK.GRAYISH BROWN ME,4H7	02/1992 - 02/1994	1
52119-2B260D1	AT190,CT19#,ST19#..EXG,EXS,GX,SELS MAGENTA MC,3L3	02/1994 - 01/1996	1
52119-2B260H0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.TURQUOISE MC,742	02/1994 - 01/1996	1
52119-2B260B0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS LT.GRAIGE ME,1A2	02/1994 - 01/1996	1
52119-2B260G0	AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 DK.GRAYISH OLIVE ME,6M7	02/1994 - 01/1996	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050	AT190,CT19#,ST19#	02/1992 - 01/1996	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050	AT190,CT19#,ST19#	02/1992 - 01/1996	1
53141C - GARNISH, RADIATOR GRILLE
53141-20100	AT190,CT19#,ST19#	06/1995 - 01/1996	1
53141-20100	AT190,CT19#,ST19#	02/1994 - 06/1995	4
Common parts
90109-06221
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-14048

AT190-AEPEK (1992)

(9202-9402)

(9402- )
