AT190-AEPEK (1992)

Toyota Corona

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190,CT190,ST190,191

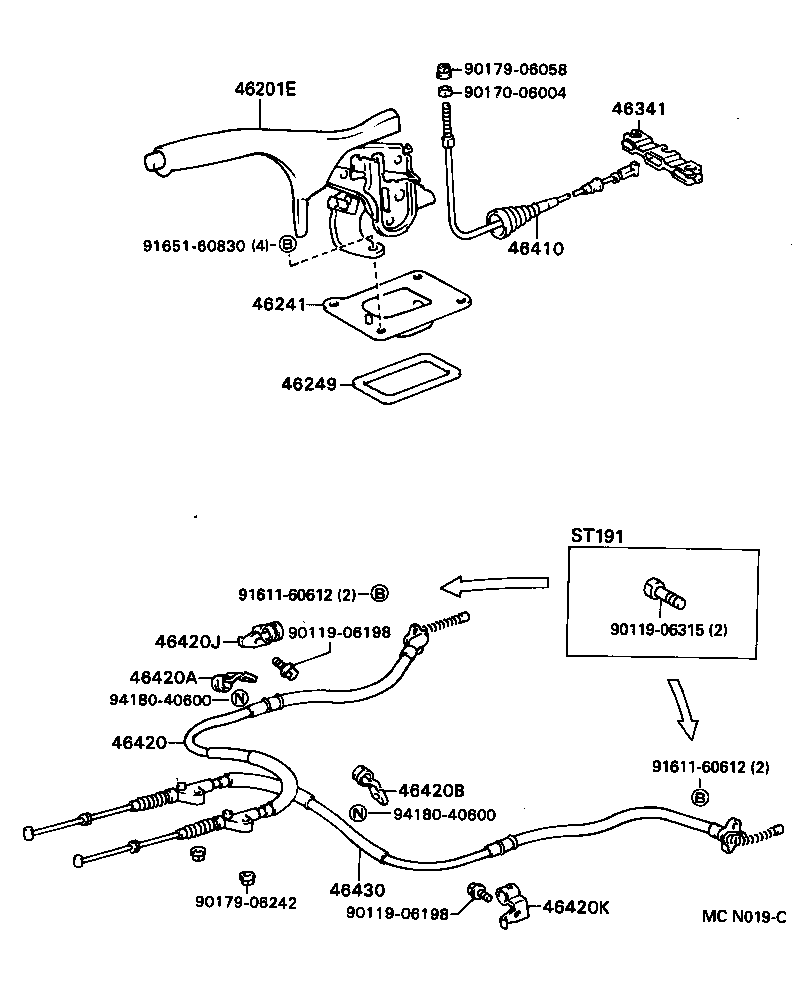

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 9011906198 9011906198 9011906315 9017006004 9017906058 9017906242 9161160612 9161160612 9165160830 9418040600 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-20230C0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2

BLACK,TRIM2#

 1
46201-20230C0

AT190,CT19#,ST19#..SED

BLACK,TRIM1#,4#

 1
46201-20230E0

AT190,CT19#,ST19#..EXG,EXS,GX,SELS

ANTELOPE,TRIM4#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20120

AT190,CT19#,ST19#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20050

AT190,CT19#,ST19#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AT190,CT190,ST190,191

 1
46341-20090

AT190,CT190,ST190,191

 1
46341-12020

AT190,CT190,ST190,191

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20380

AT190,CT190,ST190,191

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20351

AT190,CT190,ST190

 1
46420-20350

AT190,CT190,ST190

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01771

AT190,CT190,ST190,191

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01772

AT190,CT190,ST190,191

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46451-20020

AT190,CT190,ST190,191

 1
90949-01709

AT190,CT190,ST190,191

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46451-20030

AT190,CT190,ST190,191

 1
90949-01711

AT190,CT190,ST190,191

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20360

AT190,CT190,ST190

 1
46430-20361

AT190,CT190,ST190

 1
Common parts
90119-06198
90119-06315
90170-06004
90179-06058
90179-06242
91611-60612
91651-60830
94180-40600
