AT175-AEPMK (1989)

Toyota Corona

Production Nov 1989 - Feb 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )AT17#,CT170,ST17#

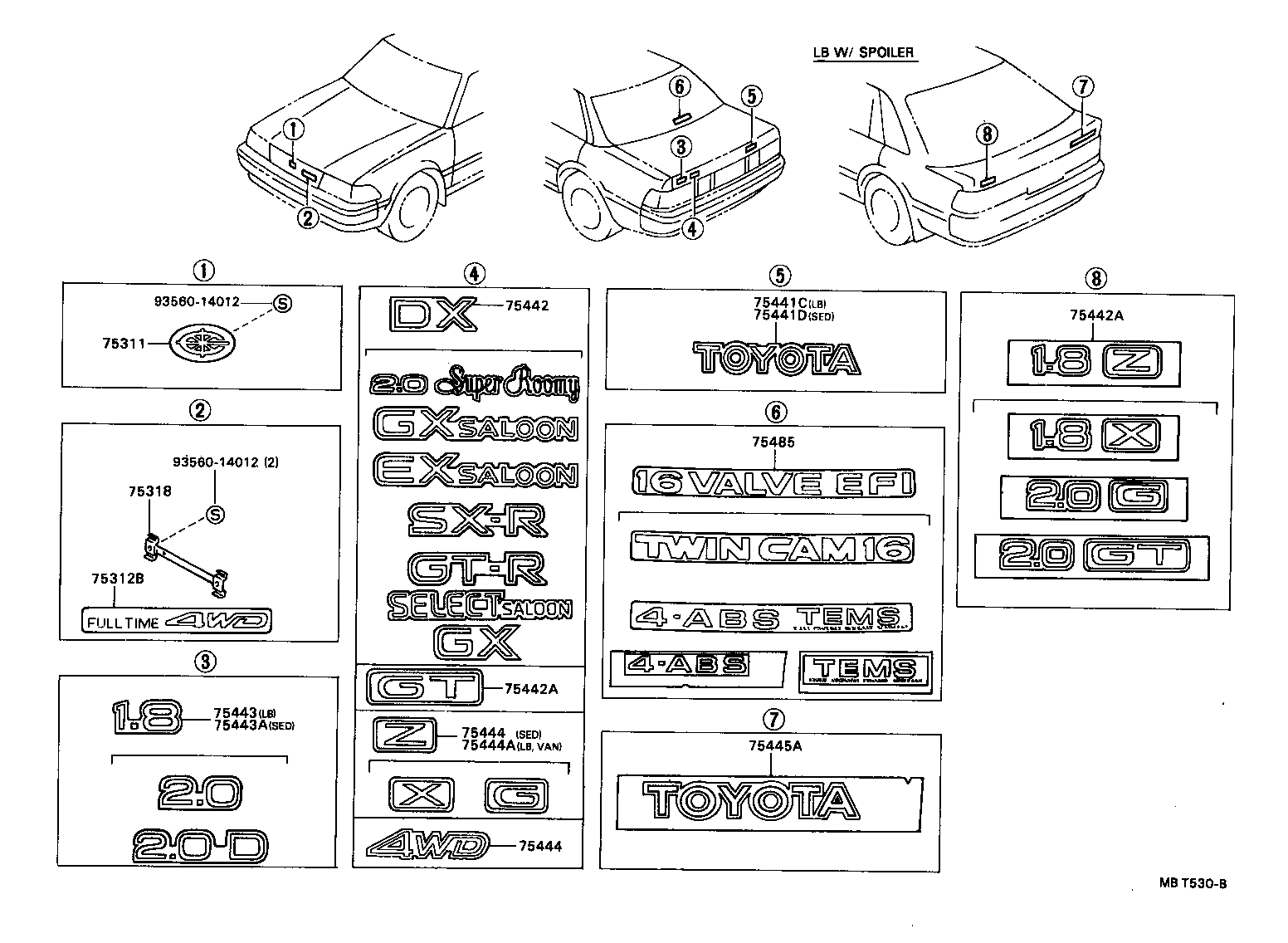

Click highlighted areas on diagram

diagram 75311 75312B 75318 75441C 75441D 75442 75442A 75442A 75443 75443A 75444 75444 75444A 75445A 75485 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-20350

AT17#,CT170,ST17#

 1
75312B - EMBLEM, RADIATOR GRILLE, NO.2
75312-20140

AT175

 1
75318 - RETAINER, RADIATOR GRILLE EMBLEM
75318-20060

AT175

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-20270

AT17#,CT170,ST17#..SED

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-20490

AT175..SELS

SELECT SALOON

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-20490

AT175..SELS

SELECT SALOON,ｾﾚｸﾄ ｻﾙ-ﾝ G

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-20490

AT175..SELS

SELECT SALOON,ｾﾚｸﾄ ｻﾙ-ﾝ G

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-20730

AT17#,CT170,ST170..SELS

G

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-20730

AT17#,CT170,ST170..SELS

G

 1
75485 - PLATE, BACK WINDOW NAME
75485-20401

AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z

4−ABS

 1
75485-20150

AT17#,ST17#..(DX,EXG,EXS,G,GX,MX,SELS,SXR,X,Z)..EFI

16 VALVE EFI

 1
Common parts
93560-14012
