AT175-AEPMK (1988)

Toyota Corona

Production Aug 1988 - Nov 1989
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )AT175

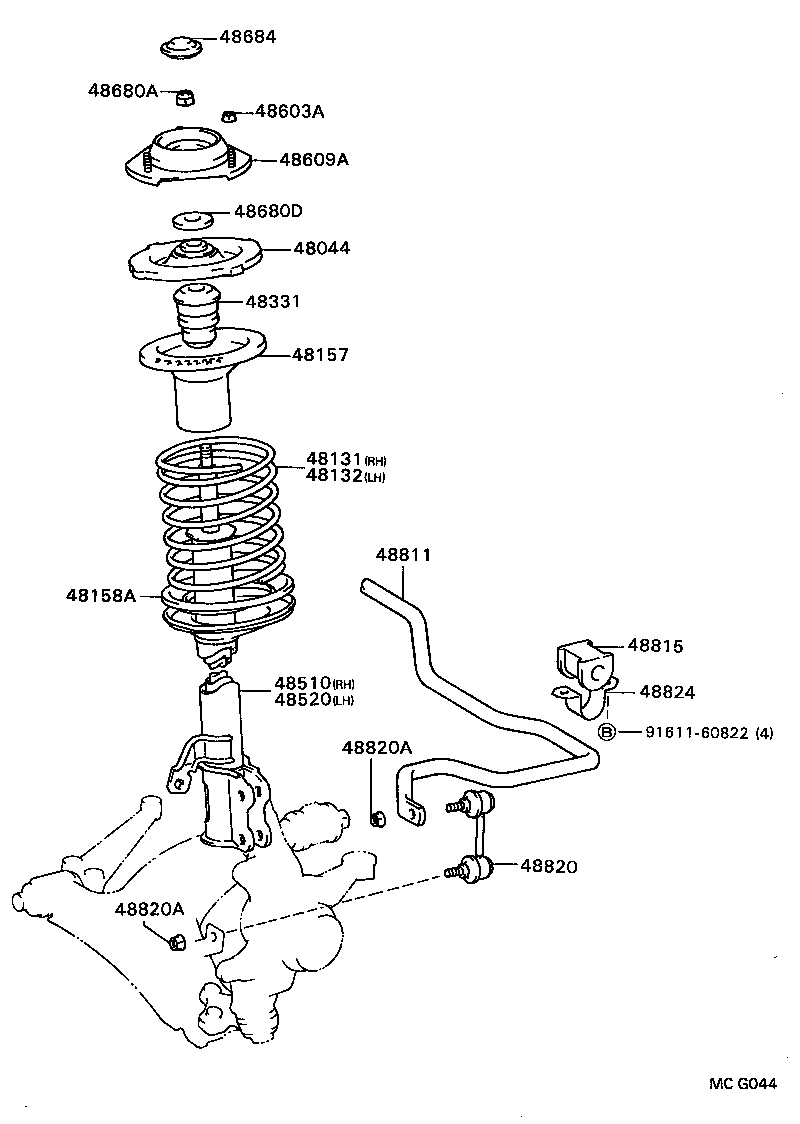

Click highlighted areas on diagram

diagram 48044 48131 48132 48157 48158A 48331 48510 48520 48603A 48609A 48680A 48680D 48684 48811 48815 48820 48820A 48820A 48824 9161160822
Part # Description Qty Price
48158A - INSULATOR, FRONT COIL SPRING, LOWER
48158-12030

AT17#,CT17#,ET176,ST17#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-12130

AT175,CT170,ST17#

 2
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10095

AT17#,CT17#,ET176,ST17#

 6
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

AT17#,CT17#,ET176,ST17#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

AT17#,CT17#,ET176,ST17#

 2
48684 - COVER, BEARING DUST
48684-32010

AT17#,CT17#,ET176,ST17#

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10054

AT17#,CT170,ST17#

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10054

AT17#,CT170,ST17#

 4
Common parts
91611-60822
