AT175-AEPEK (1989)

Toyota Corona

Production Nov 1989 - Feb 1992
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )

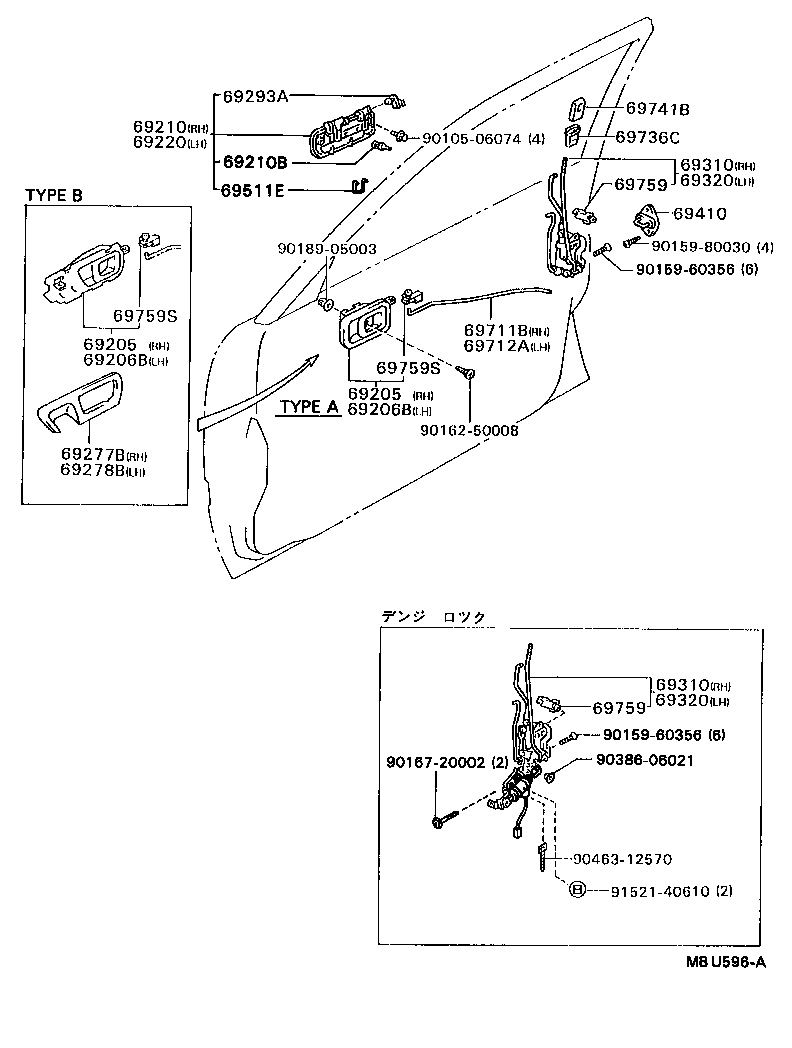

Click highlighted areas on diagram

diagram 69205 69205 69206B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69310 69320 69320 69410 69511E 69711B 69712A 69736C 69741B 69759 69759 69759S 69759S 9010506074 9015960356 9015960356 9015980030 9016250008 9016720002 9018905003 9038606021 9046312570 9152140610
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2004006

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ A

 1
69205-2004003

AT17#,CT17#,ET176,ST17#

GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
69205-2005004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69205-2005014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69205-2005006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
69205-2004014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
69205-2005003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2004006

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ A

 1
69205-2004003

AT17#,CT17#,ET176,ST17#

GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
69205-2005004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69205-2005014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69205-2005006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
69205-2004014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
69205-2005003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2004006

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ A

 1
69206-2005006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
69206-2005003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
69206-2005014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69206-2005004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69206-2004014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
69206-2004003

AT17#,CT17#,ET176,ST17#

GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2004006

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ A

 1
69206-2005006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
69206-2005003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#,ﾀｲﾌﾟ B

 1
69206-2005014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69206-2005004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
69206-2004014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
69206-2004003

AT17#,CT17#,ET176,ST17#

GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20160

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

AT17#,CT17#,ET176,ST17#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20160

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-2007004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
69277-2007014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
69277-2007006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 1
69277-2007003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-2008004

AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 1
69278-2008014

AT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 1
69278-2008003

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

GRAY,TRIM1#

 1
69278-2008006

AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030

AT17#,CT17#,ET176,ST17#

右側

 1
69293-12040

AT17#,CT17#,ET176,ST17#

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-20360

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-20360

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20470

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
69040-20360

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20470

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z

 1
69040-20360

AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20070

AT17#,CT17#,ET176,ST17#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-20110

AT17#,CT17#,ET176,ST17#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-20110

AT17#,CT17#,ET176,ST17#

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12030

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-90K0054

AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z

DARK BLUE,TRIM8#

 2
69741-90K0036

AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z

SABLE,TRIM4#

 2
69741-90K0034

AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z

BLUE,TRIM8#

 2
69741-90K0003

AT17#,CT17#,ET176,ST17#

SHADOW GRAY,TRIM1#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AT17#,CT17#,ET176,ST17#

左側

 1
69759-24060

AT17#,CT17#,ET176,ST17#

右側

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24050

AT17#,CT17#,ET176,ST17#

左側

 1
69759-24060

AT17#,CT17#,ET176,ST17#

右側

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

AT17#,CT17#,ET176,ST17#

左側

 1
69759-24070

AT17#,CT17#,ET176,ST17#

右側

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

AT17#,CT17#,ET176,ST17#

左側

 1
69759-24070

AT17#,CT17#,ET176,ST17#

右側

 1
Common parts
90105-06074
90159-60356
90159-80030
90162-50008
90167-20002
90189-05003
90386-06021
90463-12570
91521-40610
