AT175-AEMMK (1988)

Toyota Corona

Production Aug 1988 - Nov 1989
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )AT175

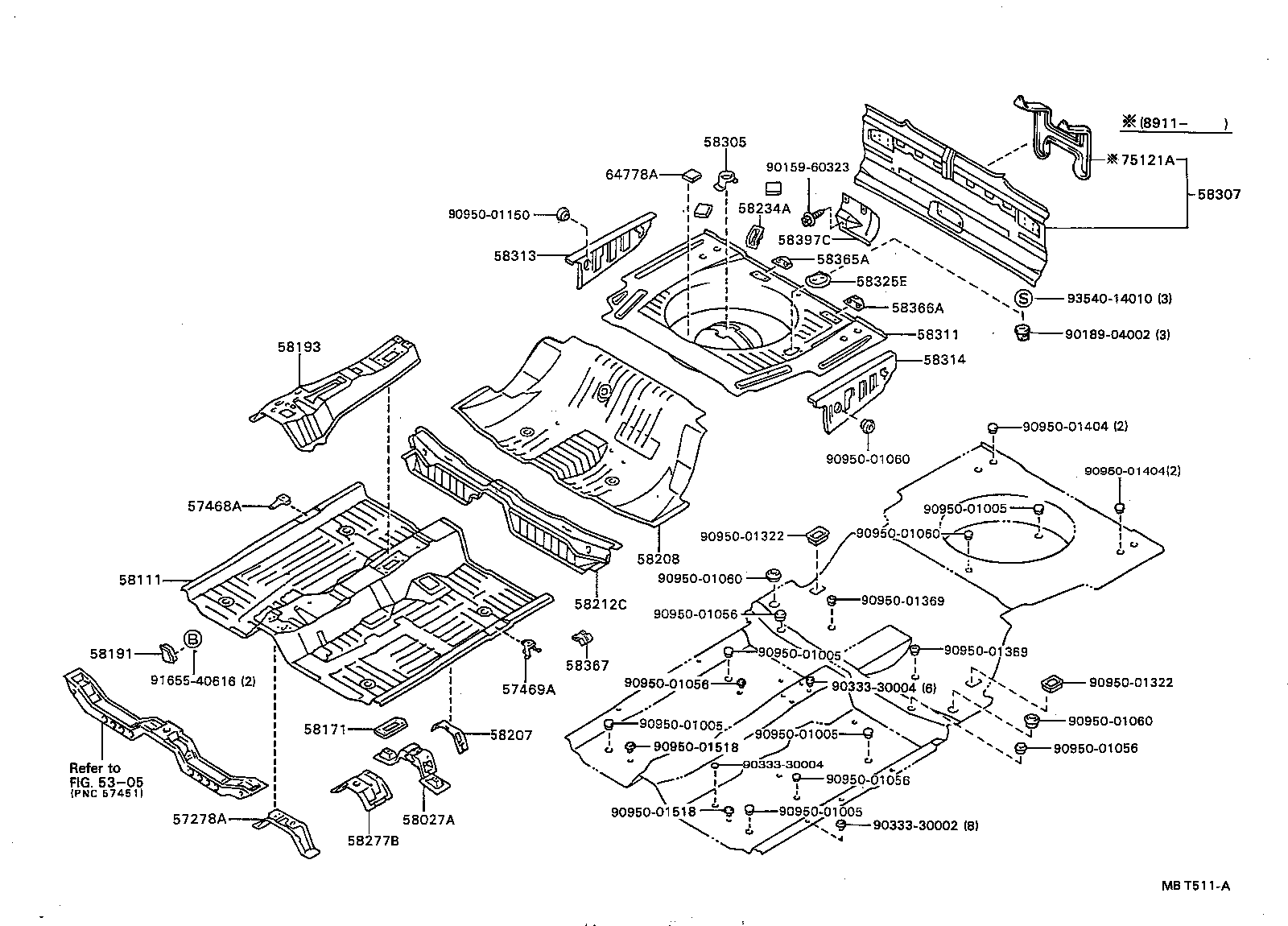

Click highlighted areas on diagram

diagram 5305 57278A 57468A 57469A 58027A 58111 58171 58191 58193 58207 58208 58212C 58234A 58277B 58305 58307 58311 58313 58314 58325E 58365A 58366A 58367 58397C 64778A 75121A 9015960323 9018904002 9033330002 9033330004 9033330004 9095001005 9095001005 9095001005 9095001005 9095001005 9095001056 9095001056 9095001056 9095001056 9095001060 9095001060 9095001060 9095001060 9095001150 9095001322 9095001322 9095001369 9095001369 9095001404 9095001404 9095001518 9095001518 9165540616 9354014010
Part # Description Qty Price
58111 - PAN, FRONT FLOOR
58111-20111

AT175

 1
58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58277-20031

AT175

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT17#,CT170,ST17#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20700

AT175

 1
58307-20701

AT175

 1
58307-20702

AT175

 1
64778A - PROTECTOR, SPARE WHEEL
64778-14020

AT17#,ST17#;CT170..EXS,GX

 3
Common parts
90159-60323
90189-04002
90333-30002
90333-30004
90950-01005
90950-01056
90950-01060
90950-01150
90950-01322
90950-01369
90950-01404
90950-01518
91655-40616
93540-14010
Linked diagrams
5305
