AT175-AEMMK (1989)
Toyota Corona
Production
Nov 1989
-
Feb 1992
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )AT175..5F

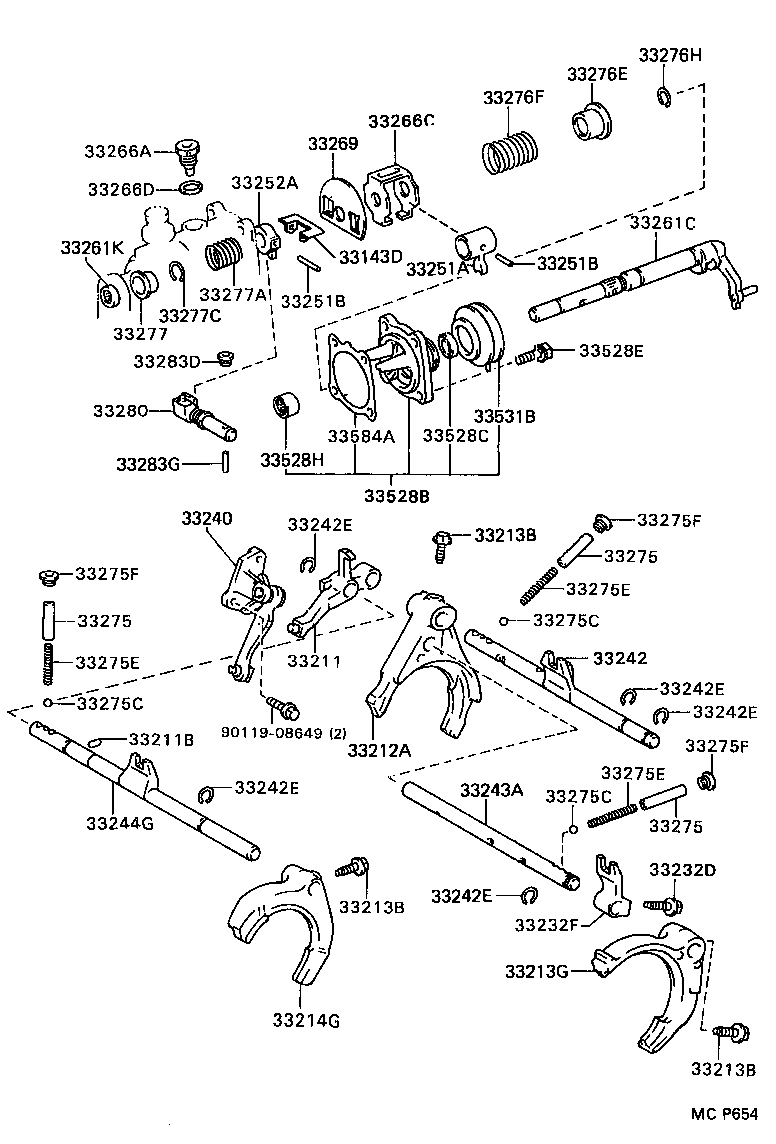

Click highlighted areas on diagram
E55F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-20020 |
AT175..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-12030 |
AT175..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AT175..5F |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AT175..5F |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AT175..5F |
2 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-07002 |
AT175..5F |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12030 |
AT175..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-12021 |
AT175..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-12061 |
AT175..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-12110 |
AT175..5F |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-12080 |
AT175..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AT175,CT17#,ST17#..5F 長さ=47.0 |
1 | ||
| 90254-05002 |
AT175..5F 長さ=32 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AT175,CT17#,ST17#..5F 長さ=47.0 |
1 | ||
| 90254-05002 |
AT175..5F 長さ=32 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20070 |
AT175..5F |
1 | ||
| 33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90364-15003 |
AT175..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-12030 |
AT175..5F |
1 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT17#,ET176..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT17#,ET176..MTM |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
AT17#,ET176..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-20020 |
AT175..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16133 |
AT175..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
AT17#,ET176..MTM |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20041 |
AT175..5F |
1 | ||
| 33280-20040 |
AT175..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AT17#,CT17#,ET176,ST17#..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AT17#..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-20270 |
AT175..5F |
1 | ||
| 33528H - BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER) | ||||
| 90364-18009 |
AT175..5F |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
AT17#,ET176..MTM |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
