AT175-AEMFK (1988)

Toyota Corona

Production Aug 1988 - Feb 1992
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )AT175

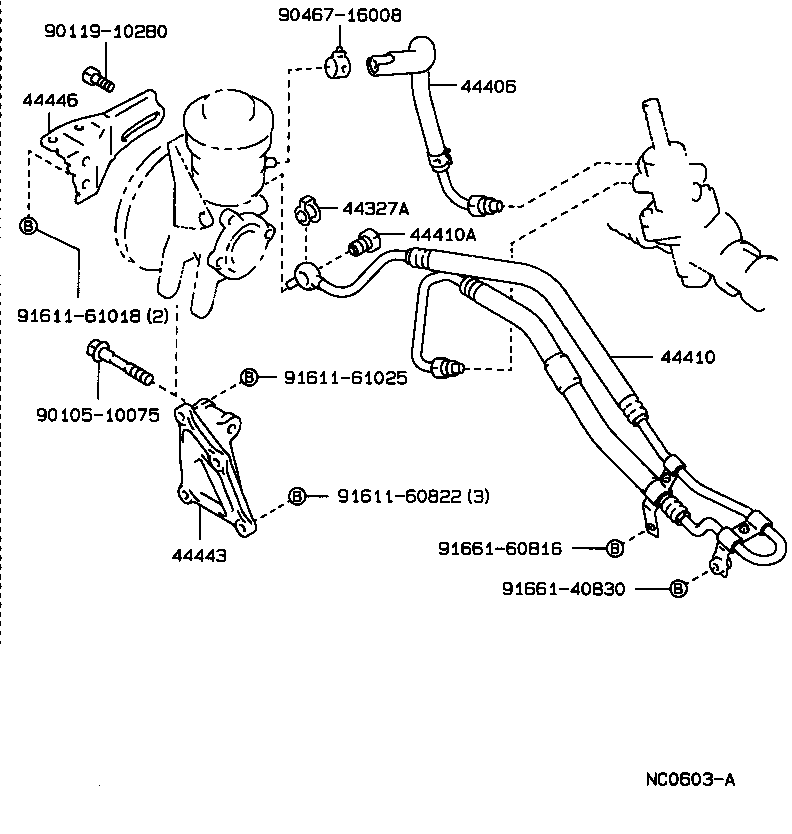

Click highlighted areas on diagram

diagram 44327A 44406 44410 44410A 44443 44446 9010510075 9011910280 9046716008 9161160822 9161161018 9161161025 9166140830 9166160816
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z

 1
44406 - TUBE SUB-ASSY, RETURN
44406-20220

AT175

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20480

AT175

 1
44410-20640

AT175

 1
44410-20641

AT175

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

CT176,ET176;AT17#,CT170..EXS,GX,MX,SELS

 1
44443 - BRACKET, PUMP
44443-12050

AT17#..EXS,GX,MX,SELS

 1
44446 - STRUT, ADJUSTING
44446-12040

AT17#..EXS,GX,MX,SELS

 1
Common parts
90105-10075
90119-10280
90467-16008
91611-60822
91611-61018
91611-61025
91661-40830
91661-60816
