AT170-AEPNU (1987)
Toyota Corona

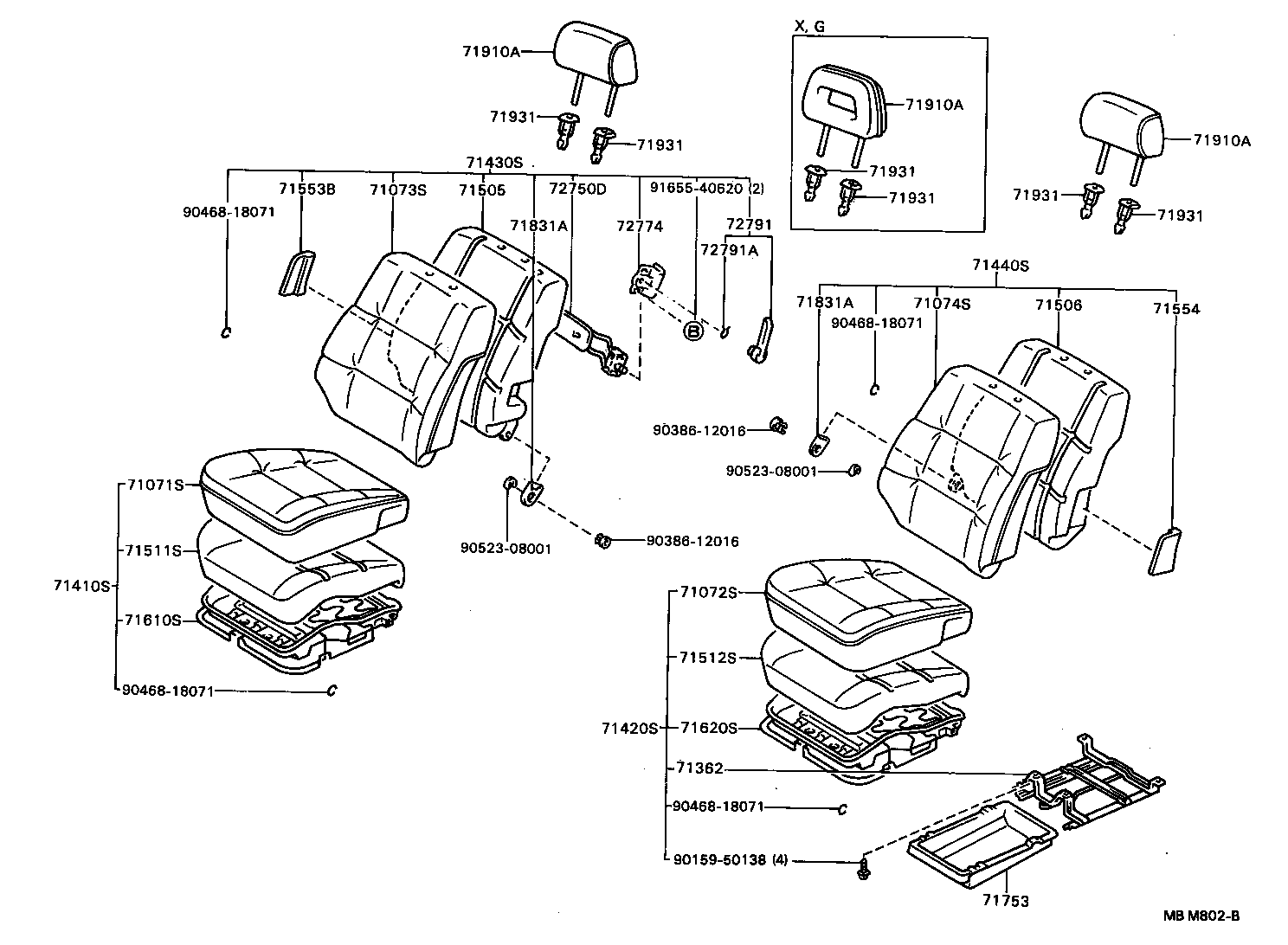

ILLUST NO. 1 OF 2(8712- )DX,GX,MX,SELS,STD,Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D10004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D10004 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D18004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D18003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71071-2D18006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71071-2D20006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71071-2D20004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D10004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D20003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71071-2D10006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D03003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2D03004 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2D03004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2D03003 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2B48004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71072-2B48006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71072-2B50006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71072-2B50003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71072-2D03006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71072-2B50004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71072-2D03003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2D03004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2B48003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D04003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D04004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D09004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71073-2D09006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71073-2D09003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71073-2D11003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71073-2D11006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71073-2D11004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71073-2D04004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D04006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B61003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B61003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B61004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71074-2B61004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71074-2B66003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71074-2B66006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71074-2B66004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71074-2B68003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 71074-2B61003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B68006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 71074-2B68004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 71074-2B61006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71074-2B61004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D19003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D19004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D31004 |
AT170,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71410-2D31003 |
AT170,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71410-2D31006 |
AT170,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71410-2D33003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71410-2D33004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71410-2D33006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71410-2D19003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D19006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B55003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B55004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B55003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B63004 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2B63003 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B55004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B65003 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B65006 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2B63006 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2D01003 |
AT170,CT170,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71420-2B65004 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D03004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71420-2D01006 |
AT170,CT170,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71420-2D03003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71420-2D03006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71420-2D01004 |
AT170,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71420-2B55004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B55003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B55006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D20004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D26004 |
AT17#,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71430-2D20004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D28003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71430-2D26006 |
AT17#,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71430-2D20003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D20003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D26003 |
AT17#,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71430-2D28004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71430-2D28006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71430-2D20003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D20004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D20006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B80004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2D02003 |
AT17#,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71440-2B80003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2D04004 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,BLUE,TRIM8# |
1 | ||
| 71440-2D04003 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,GRAY,TRIM1# |
1 | ||
| 71440-2D04006 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,SABLE,TRIM4# |
1 | ||
| 71440-2D02006 |
AT17#,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71440-2D02004 |
AT17#,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71440-2B80003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2B80004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20080 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71505-20060 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20040 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71506-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20490 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71511-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71511-20490 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20150 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20130 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT170,CT170,ET176,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20050 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||

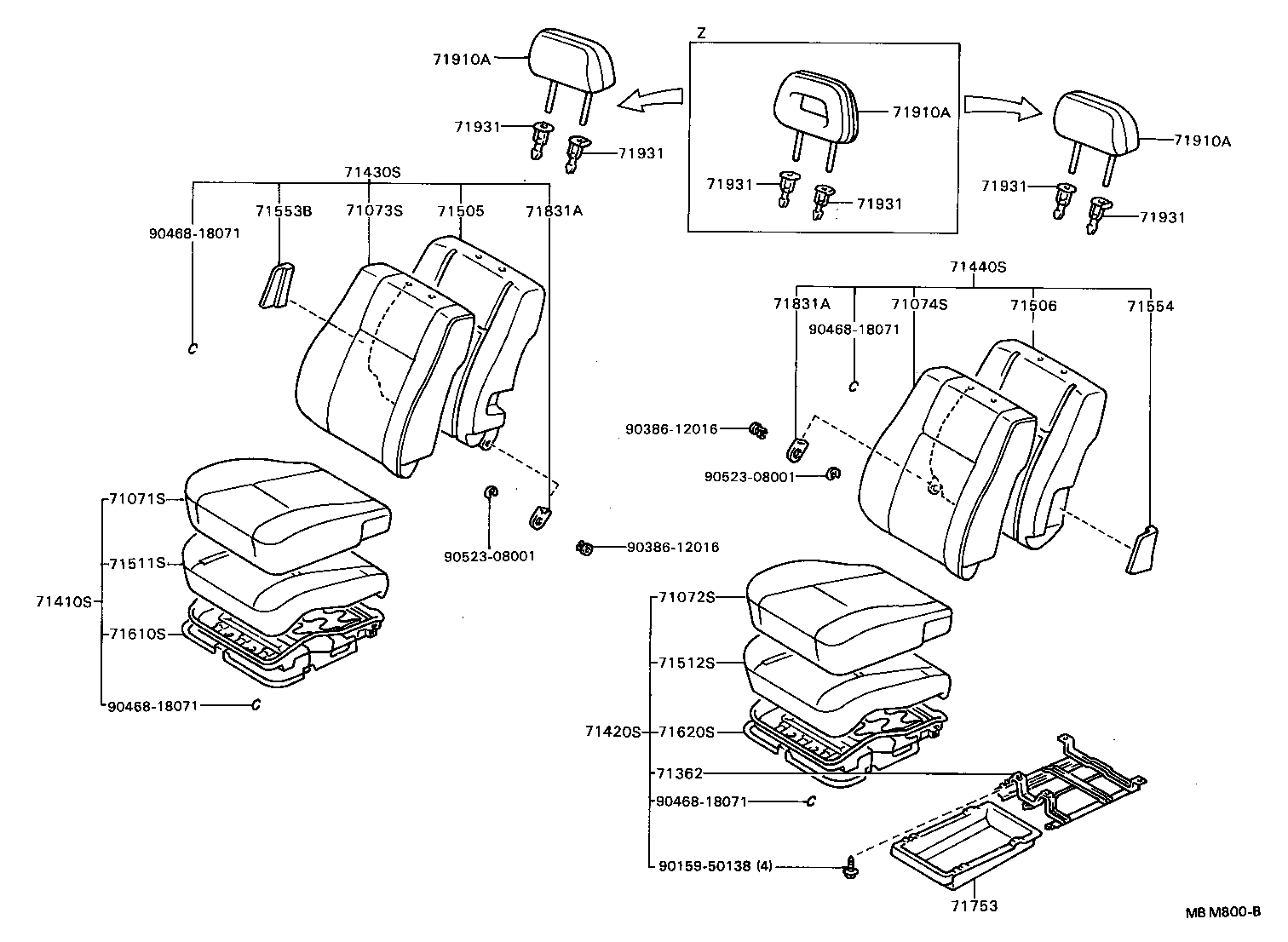

ILLUST NO. 1 OF 2(8712- )EXG,EXS,G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D10004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D10004 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D18004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D18003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71071-2D18006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71071-2D20006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71071-2D20004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71071-2D10003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71071-2D10004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71071-2D20003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71071-2D10006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D03003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2D03004 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2D03004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2D03003 |
AT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2B48004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71072-2B48006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71072-2B50006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71072-2B50003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71072-2D03006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71072-2B50004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71072-2D03003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71072-2D03004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71072-2B48003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D04003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D04004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D09004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71073-2D09006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71073-2D09003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71073-2D11003 |
AT170,CT170,ST170..EXS,X GRAY,TRIM1# |
1 | ||
| 71073-2D11006 |
AT170,CT170,ST170..EXS,X SABLE,TRIM4# |
1 | ||
| 71073-2D11004 |
AT170,CT170,ST170..EXS,X BLUE,TRIM8# |
1 | ||
| 71073-2D04004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71073-2D04003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71073-2D04006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B61003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B61003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B61004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71074-2B61004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71074-2B66003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 71074-2B66006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 71074-2B66004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 71074-2B68003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 71074-2B61003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71074-2B68006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 71074-2B68004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 71074-2B61006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71074-2B61004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D19003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D19004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D31004 |
AT170,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71410-2D31003 |
AT170,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71410-2D31006 |
AT170,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71410-2D33003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71410-2D33004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71410-2D33006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71410-2D19003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71410-2D19004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71410-2D19006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B55003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B55004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B55003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B63004 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2B63003 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B55004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B65003 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 71420-2B65006 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2B63006 |
AT170,CT170,ST170..GX ***,ｶﾝﾚｲﾁ ｼﾖｳ,SABLE,TRIM4# |
1 | ||
| 71420-2D01003 |
AT170,CT170,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71420-2B65004 |
AT170,CT170,ST170..EXS,X ***,ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71420-2D03004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71420-2D01006 |
AT170,CT170,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71420-2D03003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71420-2D03006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71420-2D01004 |
AT170,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71420-2B55004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71420-2B55003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71420-2B55006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2D20004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D26004 |
AT17#,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71430-2D20004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D28003 |
AT170,CT170,ST170..EXS,X ***,GRAY,TRIM1# |
1 | ||
| 71430-2D26006 |
AT17#,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71430-2D20003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D20003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D26003 |
AT17#,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71430-2D28004 |
AT170,CT170,ST170..EXS,X ***,BLUE,TRIM8# |
1 | ||
| 71430-2D28006 |
AT170,CT170,ST170..EXS,X ***,SABLE,TRIM4# |
1 | ||
| 71430-2D20003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71430-2D20004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71430-2D20006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B80004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80004 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2D02003 |
AT17#,CT170,ET176,ST170..GX ***,GRAY,TRIM1# |
1 | ||
| 71440-2B80003 |
AT170,CT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2D04004 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,BLUE,TRIM8# |
1 | ||
| 71440-2D04003 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,GRAY,TRIM1# |
1 | ||
| 71440-2D04006 |
AT170,CT170,ST17#..EXG,EXS,G,X ***,SABLE,TRIM4# |
1 | ||
| 71440-2D02006 |
AT17#,CT170,ET176,ST170..GX ***,SABLE,TRIM4# |
1 | ||
| 71440-2D02004 |
AT17#,CT170,ST170..GX ***,BLUE,TRIM8# |
1 | ||
| 71440-2B80003 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 71440-2B80004 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 71440-2B80006 |
AT170,ST170..GX ***,ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20080 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71505-20060 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20040 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71506-20060 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20490 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71511-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,X |
1 | ||
| 71511-20490 |
AT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20150 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20130 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT170,CT170,ET176,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20050 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 71831-12010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B27004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B27003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B27004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71910-2B02003 |
AT17#,CT170,ST170..GX GRAY,TRIM1# |
2 | ||
| 71910-2B02004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
2 | ||
| 71910-2B02006 |
AT17#,CT170,ST170..GX SABLE,TRIM4# |
2 | ||
| 71910-2B28006 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
2 | ||
| 71910-2B28003 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
2 | ||
| 71910-2B28004 |
AT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1205003 |
AT17#,CT170,ST17# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201003 |
AT17#,CT170,ST17# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20090 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-12020 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003014 |
AT170,CT170,ST17#..EXG,EXS,G,X DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||

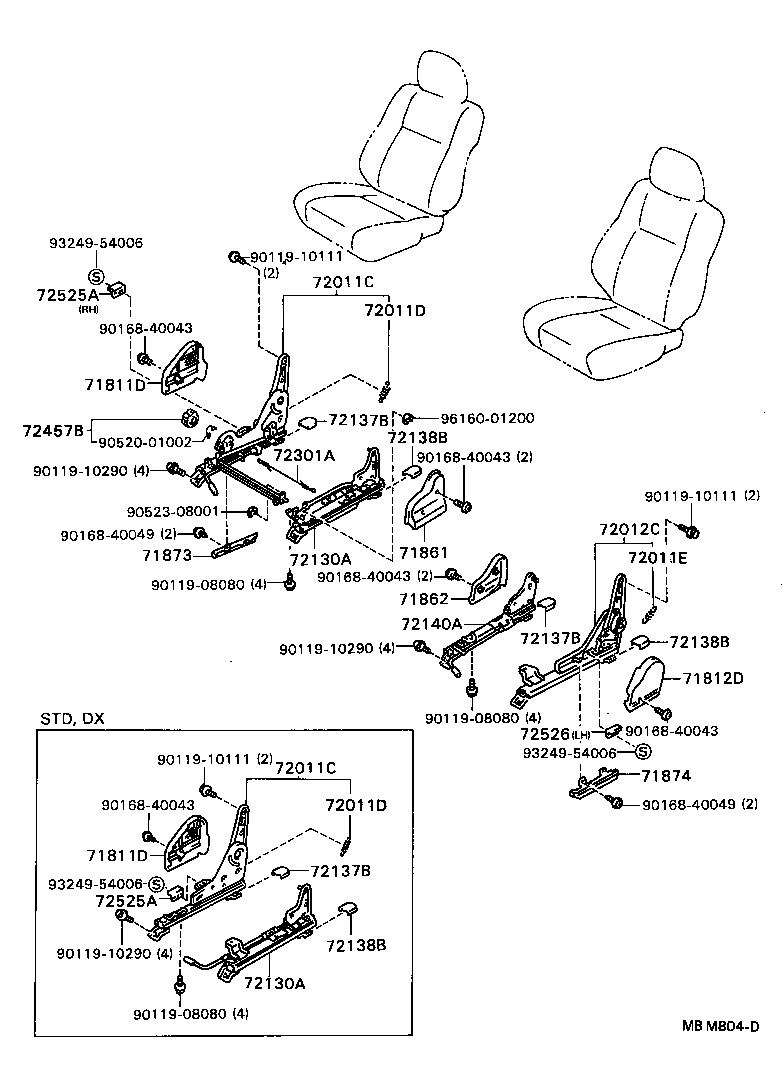

ILLUST NO. 2 OF 2(8712- )AT170,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z ; (9006-
(9006- )ｽ-ﾊﾟ- ﾙ-ﾐ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016003 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71811-2016004 |
AT17#,CT170,ST170..DX,EXS,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71811-2016006 |
AT17#,CT17#,ET176,ST170..DX,EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016003 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71811-2016004 |
AT17#,CT170,ST170..DX,EXS,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71811-2016006 |
AT17#,CT17#,ET176,ST170..DX,EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71812-2011003 |
AT17#,CT17#,ET176,ST17# GRAY,TRIM1# |
1 | ||
| 71812-2011006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2005004 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71861-2005006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71861-2005003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2005006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71862-2005004 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71862-2005003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002006 |
AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71873-2002004 |
AT17#,CT170,ST170..EXS,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71873-2002003 |
AT17#,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71874-2001003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71874-2001004 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20220 |
AT170,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20220 |
AT170,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-25002 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,STD,SXR,X,Z |
1 | ||
| 90506-20046 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,STD,SXR,X,Z |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,STD,SXR,X,Z |
1 | ||
| 90506-25002 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,STD,SXR,X,Z |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-25002 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 90506-20046 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20200 |
AT170,CT170,ST17# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20260 |
AT170,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20260 |
AT170,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20190 |
AT170,CT170,ST17# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20210 |
AT170,CT170,ET176,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-2005004 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 72457-2005003 |
AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 72457-2005006 |
AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AT17#,CT170,ST170..DX,EXS,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 72525-1209016 |
AT17#,CT17#,ET176,ST170..DX,EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AT17#,CT170,ST170..DX,EXS,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 72525-1209016 |
AT17#,CT17#,ET176,ST170..DX,EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AT17#,CT17#,ET176,ST17# GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 72526-1203016 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54006 | ||||
| 96160-01200 | ||||

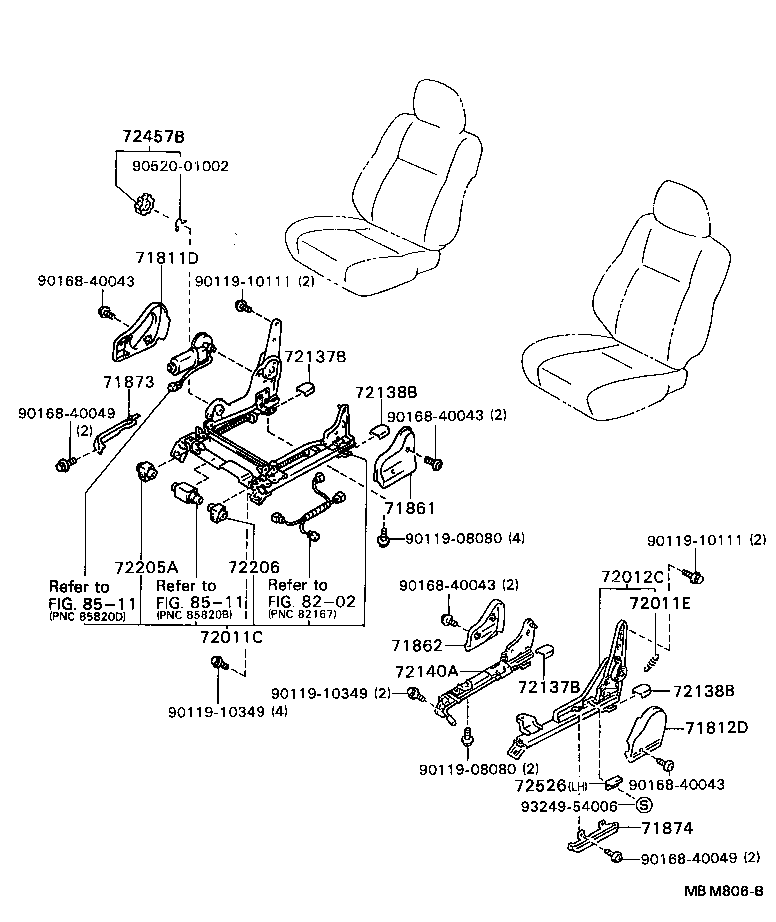

ILLUST NO. 2 OF 2(8712- )EXG,G ; (8812-8906)ST170..EXS
(8812-8906)EX ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016003 |
AT17#,CT17#,ET176,ST17#..DX,EXS,GT,GTR,GX,MX,SELS,STD,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71811-2016004 |
AT17#,CT170,ST170..DX,EXS,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71811-2016006 |
AT17#,CT17#,ET176,ST170..DX,EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71812-2011003 |
AT17#,CT17#,ET176,ST17# GRAY,TRIM1# |
1 | ||
| 71812-2011006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2005004 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71861-2005006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71861-2005003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2005006 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71862-2005004 |
AT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71862-2005003 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002006 |
AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71873-2002004 |
AT17#,CT170,ST170..EXS,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 71873-2002003 |
AT17#,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| 71874-2001003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 71874-2001004 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20220 |
AT170,CT170,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-25002 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 90506-20046 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20200 |
AT170,CT170,ST17# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201006 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 72137-3201003 |
AT17#,CT17#,ET176,ST17# SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201014 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20190 |
AT170,CT170,ST17# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-2005004 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
1 | ||
| 72457-2005003 |
AT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 72457-2005006 |
AT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AT17#,CT17#,ET176,ST17# GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 72526-1203016 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
