AT170-AEPEU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )EXS

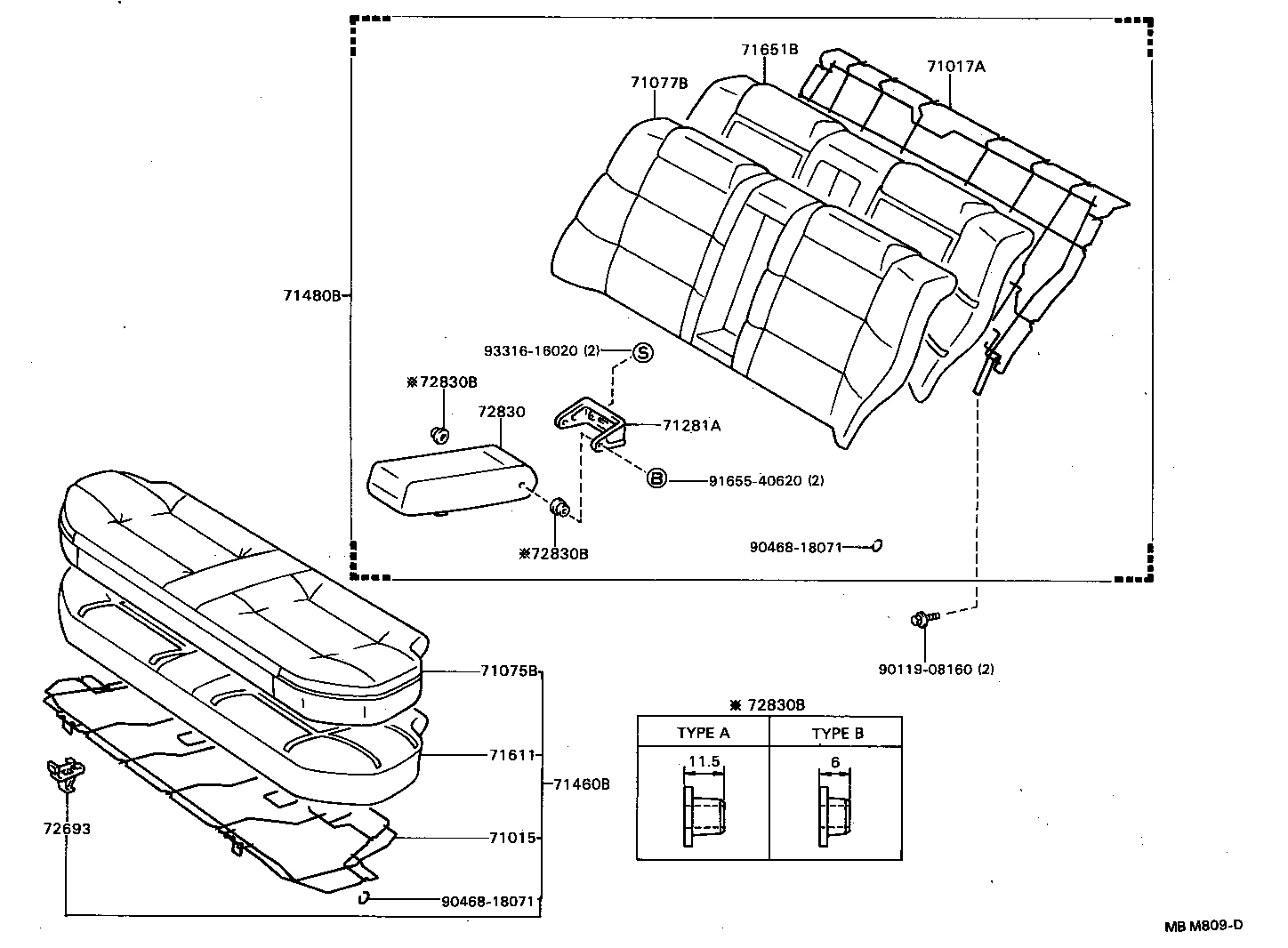

Click highlighted areas on diagram

diagram 71015 71017A 71075B 71077B 71281A 71460B 71480B 71611 71651B 72693 72830 72830B 72830B 72830B 9011908160 9046818071 9046818071 9165540620 9331616020
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-20290

AT170,CT170,ST17#

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-20340

AT170,CT170,ST170..EXS

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2088006

AT170,CT170,ST17#..EXG,EXS,G,X

SABLE,TRIM4#

 1
71065-2088003

AT170,CT170,ST17#..EXG,EXS,G,X

GRAY,TRIM1#

 1
71065-2088004

AT170,CT170,ST17#..EXG,EXS,G,X

BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2D14003

AT170,CT170,ST170..EXS

GRAY,TRIM1#

 1
71077-2D14004

AT170,CT170,ST170..EXS

BLUE,TRIM8#

 1
71077-2D14006

AT170,CT170,ST170..EXS

SABLE,TRIM4#

 1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-12020

AT170,CT170,ST170..EXS

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2082004

AT170,CT170,ST17#..EXG,EXS,G,X

***,BLUE,TRIM8#

 1
71560-2082003

AT170,CT170,ST17#..EXG,EXS,G,X

***,GRAY,TRIM1#

 1
71560-2082006

AT170,CT170,ST17#..EXG,EXS,G,X

***,SABLE,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2D13004

AT170,CT170,ST170..EXS

***,BLUE,TRIM8#

 1
71480-2D13006

AT170,CT170,ST170..EXS

***,SABLE,TRIM4#

 1
71480-2D13003

AT170,CT170,ST170..EXS

***,GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-20440

AT170,CT170,ST17#..EXG,EXS,G,X

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-20480

AT170,CT170,ST170..EXS

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

AT17#,CT170,ST17#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2020003

AT170,CT170,ST170..EXS

GRAY,TRIM1#

 1
72830-2020004

AT170,CT170,ST170..EXS

BLUE,TRIM8#

 1
72830-2020006

AT170,CT170,ST170..EXS

SABLE,TRIM4#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06022

AT170,CT170,ST170..EXS

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06022

AT170,CT170,ST170..EXS

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06022

AT170,CT170,ST170..EXS

 2
Common parts
90119-08160
90468-18071
91655-40620
93316-16020

(8712- )EXG,EXS,GTR,SXR

Click highlighted areas on diagram

diagram 71015 71017 71018 71075B 71077S 71078S 71303C 71304C 71305A 71349C 71460B 71480S 71490S 71611 71651S 71652S 71667A 71880A 71880B 71890A 72067 72068 72069 72069 72601 72601 72603 72604 72646A 72646B 72658A 72658E 72679 72679 72693 72830 72830B 9010508072 9010508072 9010508102 9010508102 9011906207 9046818071 9046818071 9046818071 9162140608 9162140608 9165560616 9165560616 9165560616 9165560825 9165560825 9165640630 9353054010 9353054010
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-20290

AT170,CT170,ST17#

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2088006

AT170,CT170,ST17#..EXG,EXS,G,X

SABLE,TRIM4#

 1
71065-2088003

AT170,CT170,ST17#..EXG,EXS,G,X

GRAY,TRIM1#

 1
71065-2088004

AT170,CT170,ST17#..EXG,EXS,G,X

BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2082004

AT170,CT170,ST17#..EXG,EXS,G,X

***,BLUE,TRIM8#

 1
71560-2082003

AT170,CT170,ST17#..EXG,EXS,G,X

***,GRAY,TRIM1#

 1
71560-2082006

AT170,CT170,ST17#..EXG,EXS,G,X

***,SABLE,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-20440

AT170,CT170,ST17#..EXG,EXS,G,X

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

AT17#,CT170,ST17#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2020003

AT170,CT170,ST170..EXS

GRAY,TRIM1#

 1
72830-2020004

AT170,CT170,ST170..EXS

BLUE,TRIM8#

 1
72830-2020006

AT170,CT170,ST170..EXS

SABLE,TRIM4#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06022

AT170,CT170,ST170..EXS

 2
Common parts
90105-08072
90105-08102
90119-06207
90468-18071
91621-40608
91655-60616
91655-60825
91656-40630
93530-54010
