AT170-AEPEU (1987)
Toyota Corona

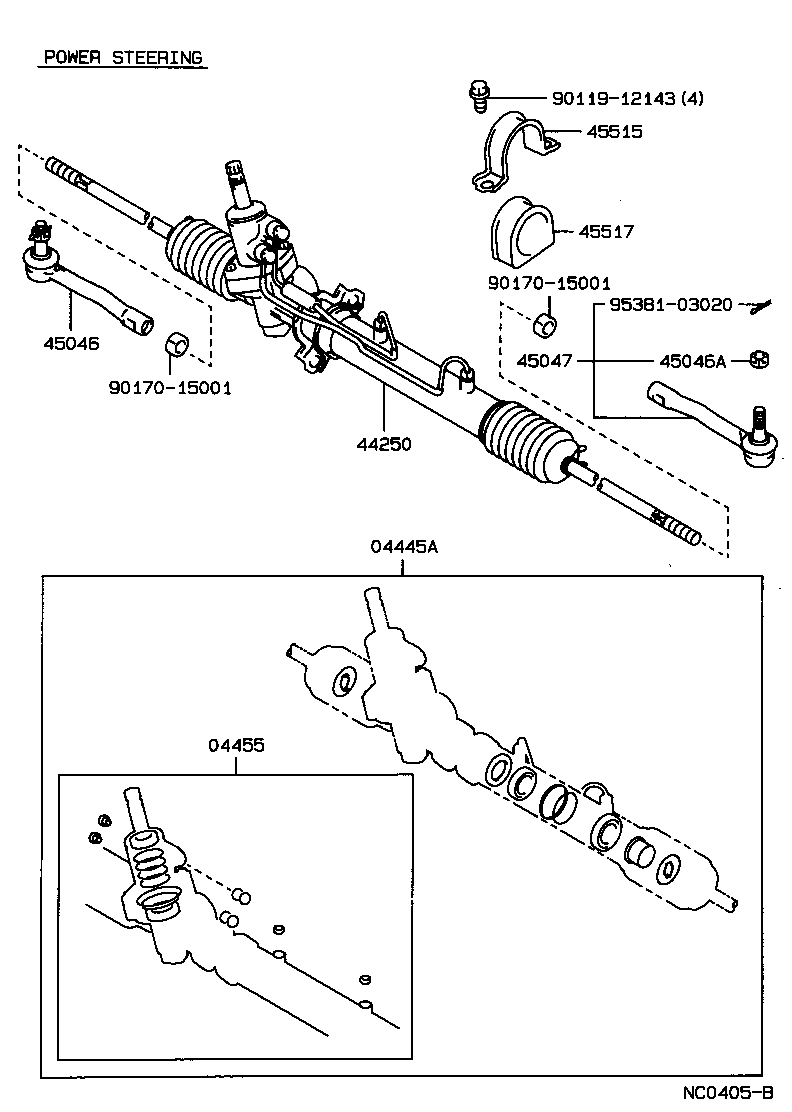

ILLUST NO. 1 OF 2(8712-8911)AT170..EXS,GX,MX ; (8712- )CT17#,ET176,ST17# ; (8911- )AT170..EXS,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20070 |
AT170..EXS,GX,MX |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20060 |
CT170,ET176..DX,EXS,GX,STD;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20170 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29165 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AT170..CBR;AT175,CT17#,ET176,ST17#;AT170..(EXS,GX,SELS)..EFI |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29045 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-20060 |
AT170..EXS,GX,MX,SELS |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-20040 |
AT170,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| Common parts | ||||
| 90119-12143 | ||||
| 90170-15001 | ||||
| 95381-03020 | ||||

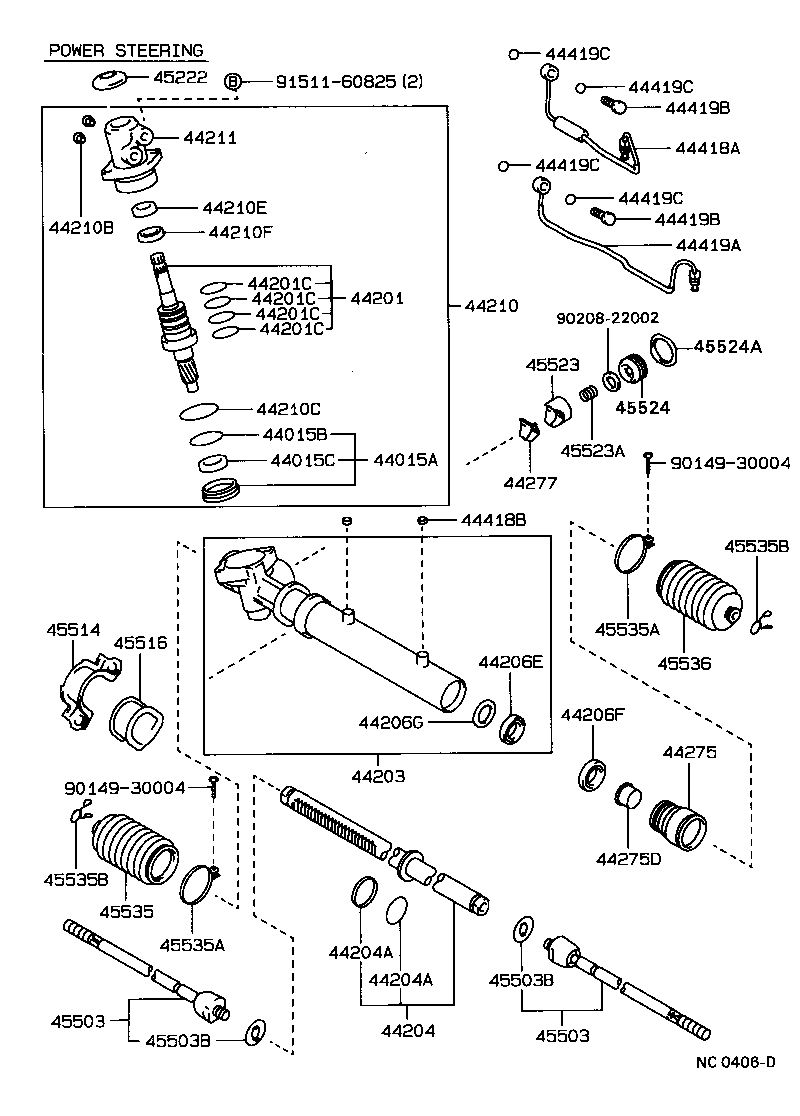

ILLUST NO. 2 OF 2(8712-8911)AT170..EXS,GX,MX ; (8712- )CT17#,ET176,ST17# ; (8911- )AT170..EXS,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-20010 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20090 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-32003 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-20120 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20110 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z 内側 |
1 | ||
| 90562-38002 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z 内側 |
1 | ||
| 90562-38002 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z 外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25018 |
CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25018 |
CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26011 |
CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20130 |
CT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20120 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20050 |
CT176,ET176;AT17#,CT170,ST170..EXS,GX,MX,SELS,X,Z |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 90386-25002 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20130 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20121 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10032 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10032 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
CT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
4 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29165 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29165 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT17#,CT17#,ET176,ST17# 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
AT17#,CT17#,ET176,ST17# 外径=37 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-20040 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-20020 |
AT170,CT17#,ET176,ST17# |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12010 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20040 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-53002 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-53002 |
CT176,ET176;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-20040 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 90208-22002 | ||||
| 91511-60825 | ||||
