AT170-AEMNU (1987)
Toyota Corona

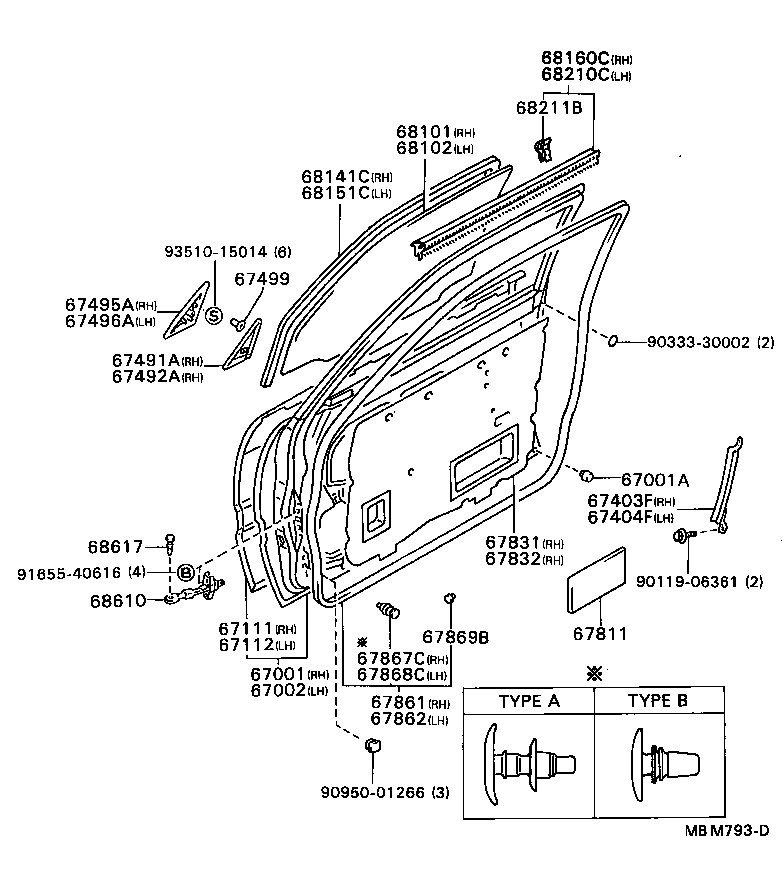

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-20740 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 67001-20750 |
AT17#,CT170,ST170..GX ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09064 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-20710 |
AT17#,CT170,ST170..GX ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67002-20700 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-20270 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-20300 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-20040 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-20040 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20130 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20150 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-20070 |
ET176..DX,GX;AT17#,CT17#,ST17# |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-20040 |
ET176..DX,GX;AT17#,CT17#,ST17# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
AT170,CT170,ST17# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-20250 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z |
1 | ||
| 67831-20250 |
AT170,CT170,ST170..GX ｱﾘ(*PW) |
1 | ||
| 67831-20280 |
AT17#,CT17#,ET176,ST170..DX,GX,STD |
1 | ||
| 67831-20250 |
AT17#,CT170,ST170..GX ｱﾘ(*PW) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-20220 |
AT170,CT170,ST170..GX ｱﾘ(*PW) |
1 | ||
| 67831-20250 |
AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z |
1 | ||
| 67832-20220 |
AT17#,CT170,ST170..GX ｱﾘ(*PW) |
1 | ||
| 67831-20280 |
AT17#,CT17#,ET176,ST170..DX,GX,STD |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-20290 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-20290 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20040 |
AT170,CT17#,ET176,ST17# |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20040 |
AT17#,CT17#,ET176,ST17# ﾀｲﾌﾟ A |
18 | ||
| 67868-30040 |
AT17#,CT17#,ET176,ST17# ﾀｲﾌﾟ B |
1 | ||
| 67868-20040 |
AT170,CT17#,ET176,ST17# |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20020 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-20450 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-20450 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68111-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68111-20500 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68111-20440 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z *TT,厚さ=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-20370 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-20370 |
AT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68112-20420 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68112-20360 |
AT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z *TT,厚さ=3.5 |
1 | ||
| 68112-20420 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z *TT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-20150 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-20030 |
AT17#,CT17#,ET176,ST17# |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89102 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
AT17#,CT17#,ET176,ST17# |
2 | ||
| Common parts | ||||
| 90119-06361 | ||||
| 90333-30002 | ||||
| 90950-01266 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||

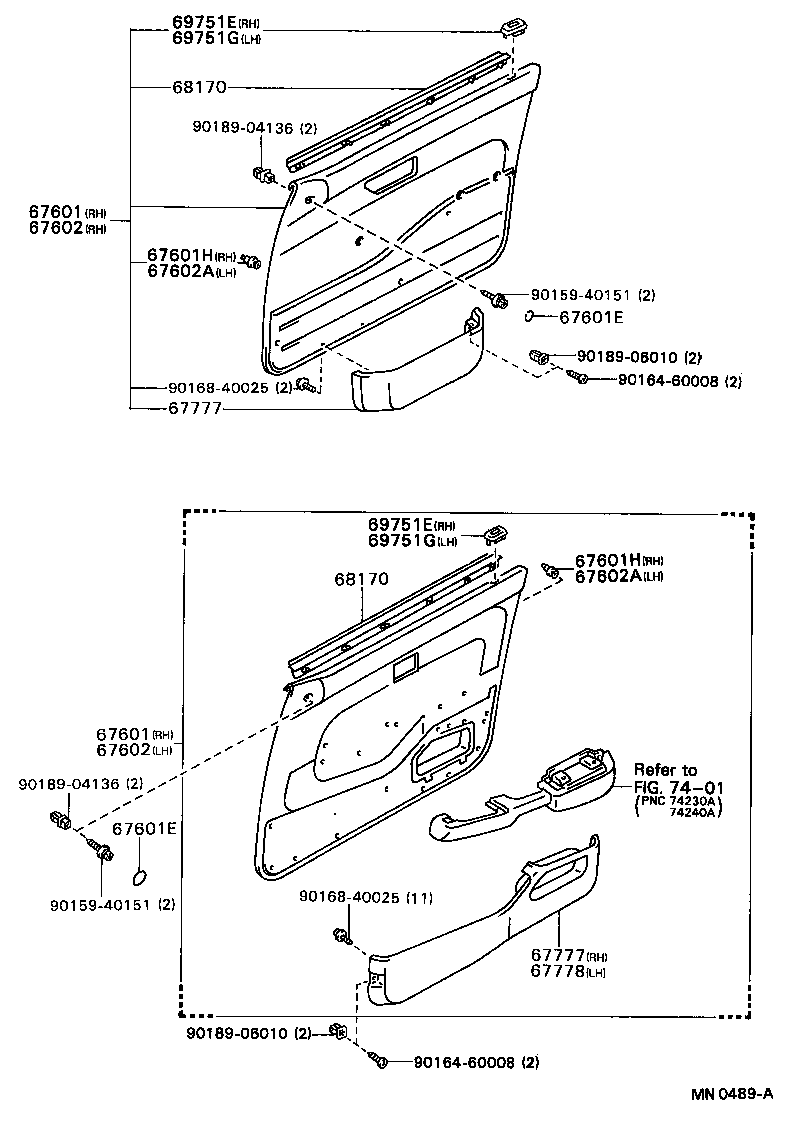

(8712- )EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B64004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B63003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67650-2B63004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67650-2B63006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67650-2B64016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B67006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B64004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B63003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67650-2B63004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67650-2B63006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67650-2B64016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B67006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000504 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 90339-1000503 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
2 | ||
| 90339-1000506 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000504 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 90339-1000503 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
2 | ||
| 90339-1000506 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
AT175..GX;AT170,CT170,ST170..DX,GX,MX,Z |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
AT175..GX;AT170,CT170,ST170..DX,GX,MX,Z |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D88006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67620-2D84003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2D84004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2G01003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67620-2D88004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67620-2D88003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67620-2D84016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D88006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67620-2D84003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2D84004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2G01003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67620-2D88004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67620-2D88003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67620-2D84016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
ST170..Z..CI;AT175,ET176..GX;AT170,CT170,ST170..DX,GX,MX |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
ST170..Z..CI;AT175,ET176..GX;AT170,CT170,ST170..DX,GX,MX |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2011004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z BLUE,TRIM8# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2012004 |
AT175,CT170..GX;AT170,ST170..(DX,GX)..(CBR,CI) BLUE,TRIM8# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2012003 |
ET176..GX;AT17#,CT170,ST170..DX,GX GRAY,TRIM1# |
1 | ||
| 67777-2012006 |
ET176..GX;AT17#,CT170,ST170..DX,GX SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z SABLE,TRIM4# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2011004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z BLUE,TRIM8# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2012004 |
AT175,CT170..GX;AT170,ST170..(DX,GX)..(CBR,CI) BLUE,TRIM8# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2012003 |
ET176..GX;AT17#,CT170,ST170..DX,GX GRAY,TRIM1# |
1 | ||
| 67777-2012006 |
ET176..GX;AT17#,CT170,ST170..DX,GX SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z SABLE,TRIM4# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2005004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67778-2005004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67778-2005006 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z SABLE,TRIM4# |
1 | ||
| 67778-2005003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 67778-2005003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67778-2005006 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67778-2005006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67778-2005006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67778-2005004 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X BLUE,TRIM8# |
1 | ||
| 67778-2005003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67778-2005003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67778-2005004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20330 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20330 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201013 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201013 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40151 | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90189-04136 | ||||
| 90189-06010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 2 OF 2(8712- )EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2B64004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B63003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67650-2B63004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67650-2B63006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67650-2B64003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67650-2B67003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67650-2B64016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67650-2B64004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67650-2B67006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000504 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z BLUE,TRIM8# |
2 | ||
| 90339-1000503 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z GRAY,TRIM1# |
2 | ||
| 90339-1000506 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z SABLE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
AT175..GX;AT170,CT170,ST170..DX,GX,MX,Z |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2D88006 |
AT17#,CT170,ET176,ST170..GX SABLE,TRIM4# |
1 | ||
| 67620-2D84003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2D84004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67620-2G01003 |
AT170,CT170,ST17#..EXG,EXS,G,X GRAY,TRIM1# |
1 | ||
| 67620-2D88004 |
AT17#,CT170,ST170..GX BLUE,TRIM8# |
1 | ||
| 67620-2D88003 |
AT17#,CT170,ET176,ST170..GX GRAY,TRIM1# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01004 |
AT170,CT170,ST17#..EXG,EXS,G,X BLUE,TRIM8# |
1 | ||
| 67620-2D84003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67620-2G01006 |
AT170,CT170,ST17#..EXG,EXS,G,X SABLE,TRIM4# |
1 | ||
| 67620-2D84016 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67620-2D84004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12050 |
AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI) |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-12050 |
AT170,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67771-16080 |
ST170..Z..CI;AT175,ET176..GX;AT170,CT170,ST170..DX,GX,MX |
10 | ||
| 67771-12050 |
AT17#,CT170,ST170..GX ｾﾚｸﾄ ｻﾙ-ﾝ |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2011004 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011003 |
AT170,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z BLUE,TRIM8# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2011003 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,GRAY,TRIM1# |
1 | ||
| 67777-2012004 |
AT175,CT170..GX;AT170,ST170..(DX,GX)..(CBR,CI) BLUE,TRIM8# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,SABLE,TRIM4# |
1 | ||
| 67777-2012003 |
ET176..GX;AT17#,CT170,ST170..DX,GX GRAY,TRIM1# |
1 | ||
| 67777-2012006 |
ET176..GX;AT17#,CT170,ST170..DX,GX SABLE,TRIM4# |
1 | ||
| 67777-2011006 |
AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z SABLE,TRIM4# |
1 | ||
| 67777-2011004 |
AT17#,CT170,ST170..GX ｾﾚｸﾄｻﾙ-ﾝ,BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-20330 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-3201004 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201006 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z SABLE,TRIM4# |
1 | ||
| 69751-32010J0 |
AT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z DARK BLUE,TRIM8# |
1 | ||
| 69751-3201013 |
ET176..GX;AT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40151 | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90189-04136 | ||||
| 90189-06010 | ||||
| Linked diagrams | ||||
| 7401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
