AT170-AEMEU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

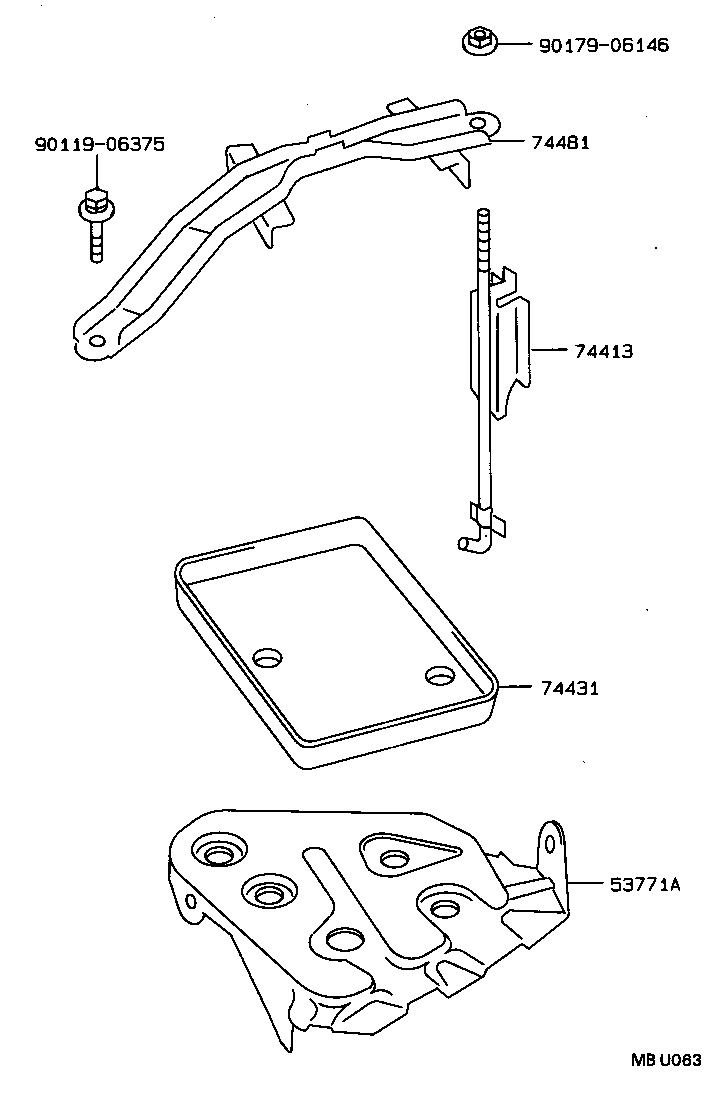

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9011906375 9017906146
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-20040

AT17#,CT17#,ET176,ST17#

 1
74413 - BOLT, BATTERY CLAMP
74407-20060

AT170,ET176..CBR

 1
74431 - TRAY, BATTERY
74431-14020

AT170,ET176..MTM..CBR;ST170..5F..(GX,MX,SELS,Z)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
74431-14010

AT175;AT170,ET176,ST17#..MTM

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20290

AT170,ET176..CBR

 1
Common parts
90119-06375
90179-06146
