AT170-AEMEU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

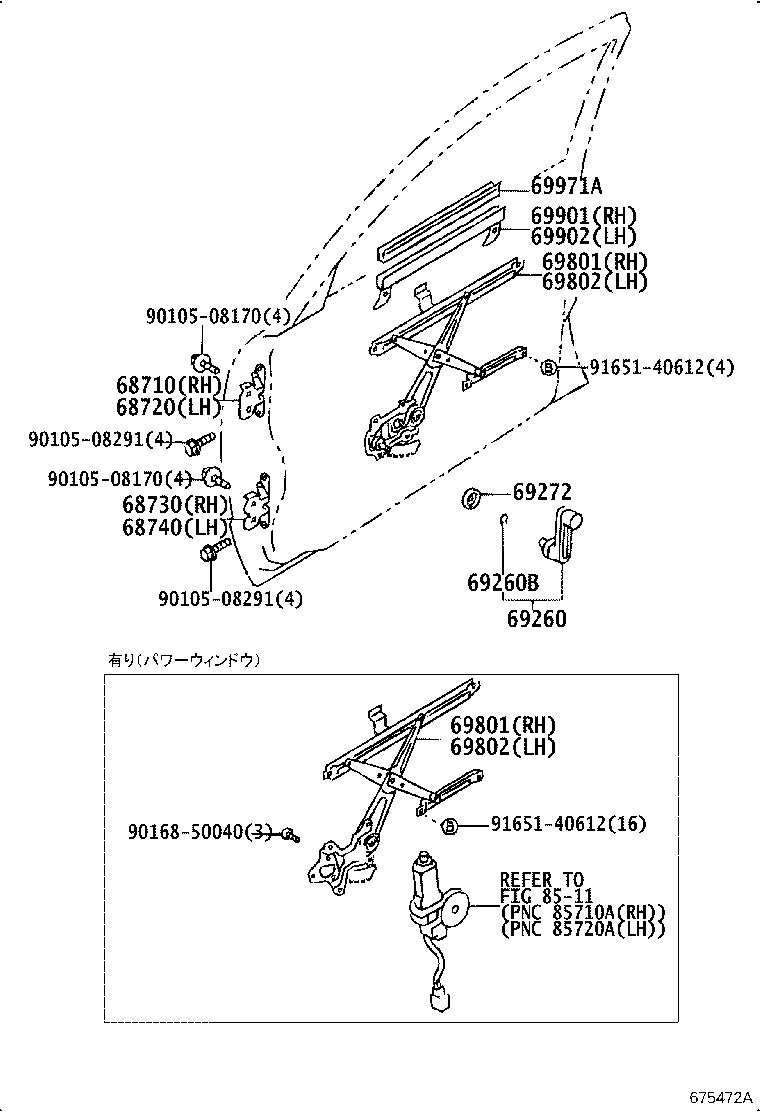

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9010508170 9010508170 9010508291 9010508291 9016850040 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

AT17#,CT17#,ET176,ST17#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

AT17#,CT17#,ET176,ST17#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-16010

AT17#,CT17#,ET176,ST17#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-16010

AT17#,CT17#,ET176,ST17#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20150

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20150

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20150

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20150

AT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20130

AT17#,CT17#,ET176,ST17#

W=9.4

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-20060

AT17#,CT17#,ET176,ST17#

W=9.4

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-20010

AT17#,CT17#,ET176,ST17#

 2
Common parts
90105-08170
90105-08291
90168-50040
91651-40612
Linked diagrams
8511
