AT170-AEMEU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )SED

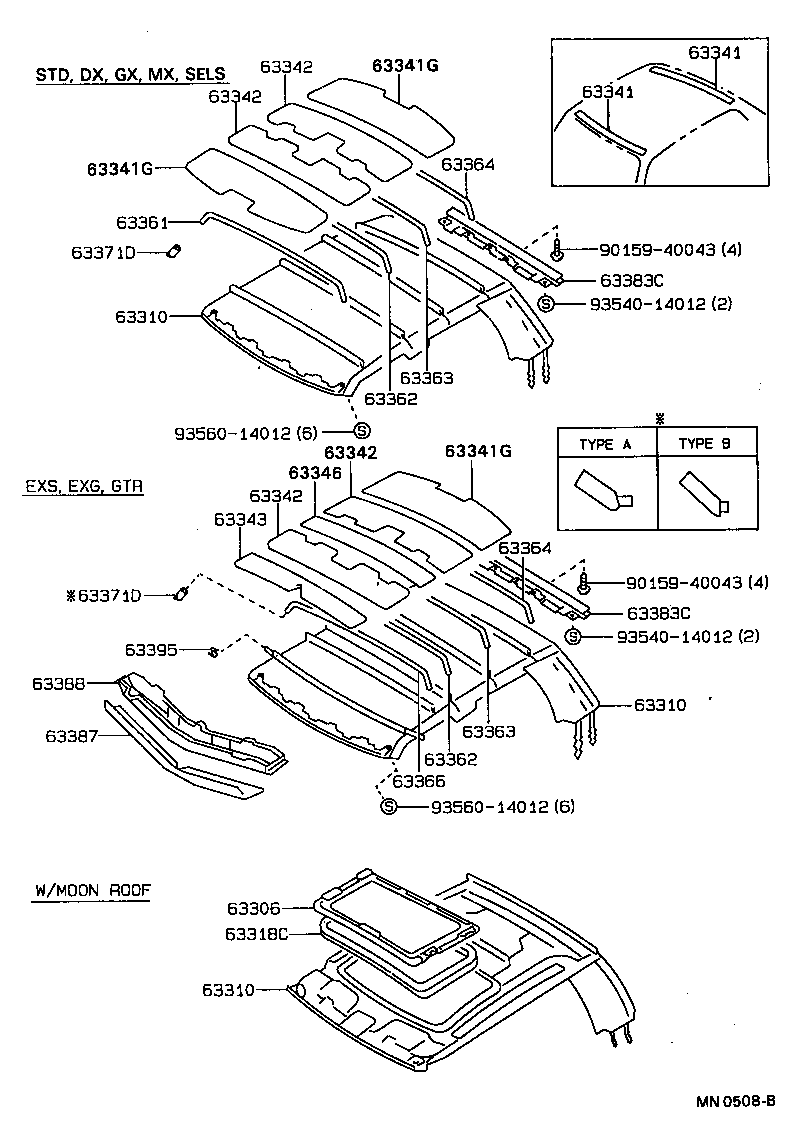

Click highlighted areas on diagram

diagram 63306 63310 63310 63310 63318C 63341 63341 63341G 63341G 63341G 63342 63342 63342 63342 63343 63346 63361 63362 63362 63363 63363 63364 63364 63366 63371D 63371D 63383C 63383C 63387 63388 63395 9015940043 9015940043 9354014012 9354014012 9356014012 9356014012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2071003

AT175..MX;AT170,ST171..EXS,SXR

GRAY,TRIM1#

 1
63310-2071004

AT175..MX;AT170..EXS

BLUE,TRIM8#

 1
63310-2071006

AT175..MX;AT170..EXS

SABLE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2071003

AT175..MX;AT170,ST171..EXS,SXR

GRAY,TRIM1#

 1
63310-2071004

AT175..MX;AT170..EXS

BLUE,TRIM8#

 1
63310-2071006

AT175..MX;AT170..EXS

SABLE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2071003

AT175..MX;AT170,ST171..EXS,SXR

GRAY,TRIM1#

 1
63310-2071004

AT175..MX;AT170..EXS

BLUE,TRIM8#

 1
63310-2071006

AT175..MX;AT170..EXS

SABLE,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-20160

AT170,CT170,ST17#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-20160

AT170,CT170,ST17#

 2
63341G - PAD, ROOF SILENCER
63341-20170

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

FRONT

 1
63341-32020

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

REAR

 1
63341G - PAD, ROOF SILENCER
63341-20170

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

FRONT

 1
63341-32020

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

REAR

 1
63341G - PAD, ROOF SILENCER
63341-20170

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

FRONT

 1
63341-32020

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

REAR

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-32010

AT17#,CT170,ST17#

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-32010

AT17#,CT170,ST17#

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-32010

AT17#,CT170,ST17#

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-32010

AT17#,CT170,ST17#

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-20140

AT17#,CT170,ST17#

L=1028

 1
63361-20130

AT17#,CT170,ST17#

L=1031

 1
63361-20150

AT17#,CT170,ST17#

L=1034

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-20130

AT17#,CT170,ST17#

L=1023

 1
63362-20150

AT17#,CT170,ST17#

L=1026

 1
63362-20140

AT17#,CT170,ST17#

L=1020

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-20130

AT17#,CT170,ST17#

L=1023

 1
63362-20150

AT17#,CT170,ST17#

L=1026

 1
63362-20140

AT17#,CT170,ST17#

L=1020

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-20050

AT17#,CT170,ST17#

L=1017

 1
63363-20070

AT17#,CT170,ST17#

L=1020

 1
63363-20060

AT17#,CT170,ST17#

L=1014

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-20050

AT17#,CT170,ST17#

L=1017

 1
63363-20070

AT17#,CT170,ST17#

L=1020

 1
63363-20060

AT17#,CT170,ST17#

L=1014

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-20040

AT17#,CT170,ST17#

L=1011

 1
63364-20060

AT17#,CT170,ST17#

L=1014

 1
63364-20050

AT17#,CT170,ST17#

L=1008

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-20040

AT17#,CT170,ST17#

L=1011

 1
63364-20060

AT17#,CT170,ST17#

L=1014

 1
63364-20050

AT17#,CT170,ST17#

L=1008

 1
63371D - RETAINER, ROOF HEADLINING SUPPORT
63371-20020

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

 8
63371D - RETAINER, ROOF HEADLINING SUPPORT
63371-20020

CT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR

 8
63383C - RETAINER, ROOF HEADLINING TRIM, REAR
63383-20100

AT17#,CT170,ST17#..SED

 1
63383-20130

AT17#,CT170,ST17#..SED

 1
63383C - RETAINER, ROOF HEADLINING TRIM, REAR
63383-20100

AT17#,CT170,ST17#..SED

 1
63383-20130

AT17#,CT170,ST17#..SED

 1
Common parts
90159-40043
93540-14012
93560-14012
