AT170-AEMEU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )4AFE,5AF#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

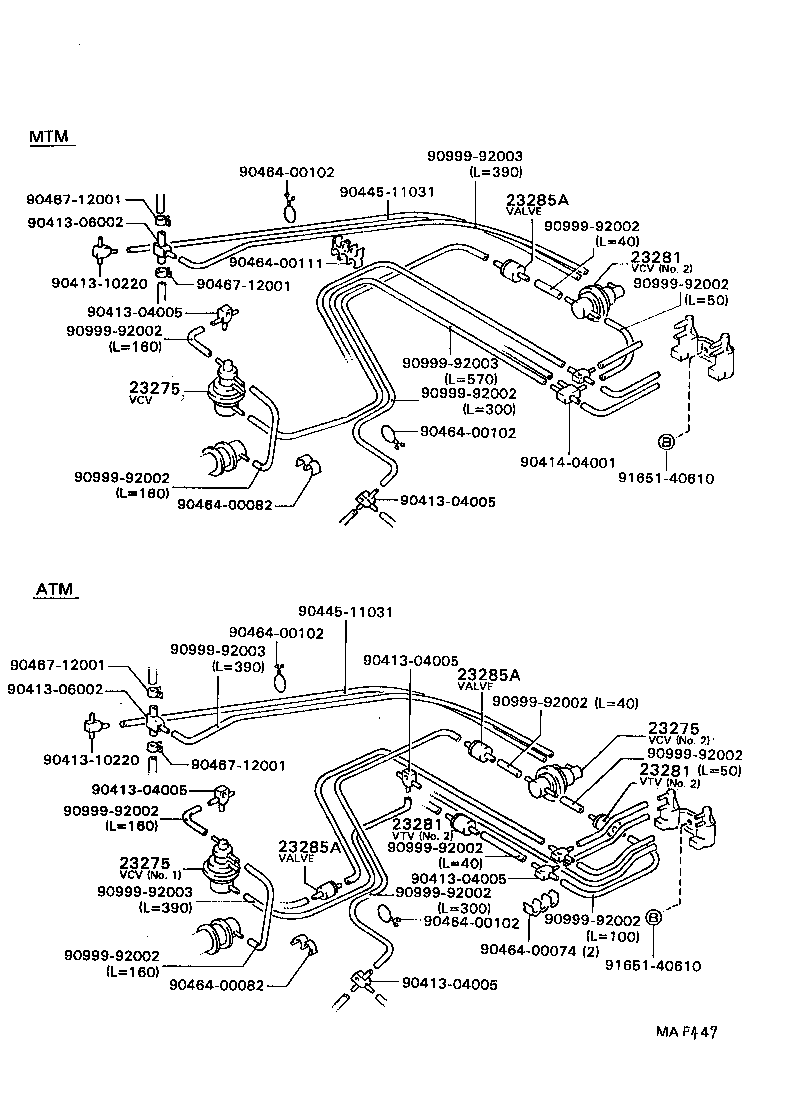

ILLUST NO. 2 OF 2(8712-8911)5AF

Click highlighted areas on diagram

diagram 23275 23275 23275 23281 23281 23281 23285A 23285A 23285A 9041304005 9041304005 9041304005 9041304005 9041304005 9041304005 9041306002 9041306002 9041310220 9041310220 9041404001 9044511031 9044511031 9046400074 9046400082 9046400082 9046400102 9046400102 9046400102 9046400102 9046400111 9046712001 9046712001 9046712001 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9165140610 9165140610
Part # Description Qty Price
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03184

5AF..AT170..MTM

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03184

5AF..AT170..MTM

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03184

5AF..AT170..MTM

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AT170

 1
90925-03183

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AT170

 1
90925-03183

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AT170

 1
90925-03183

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90917-10049

5AF..AT170

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90917-10049

5AF..AT170

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90917-10049

5AF..AT170

 2
Common parts
90413-04005
90413-06002
90413-10220
90414-04001
90445-11031
90464-00074
90464-00082
90464-00102
90464-00111
90467-12001
90999-92002
90999-92003
91651-40610

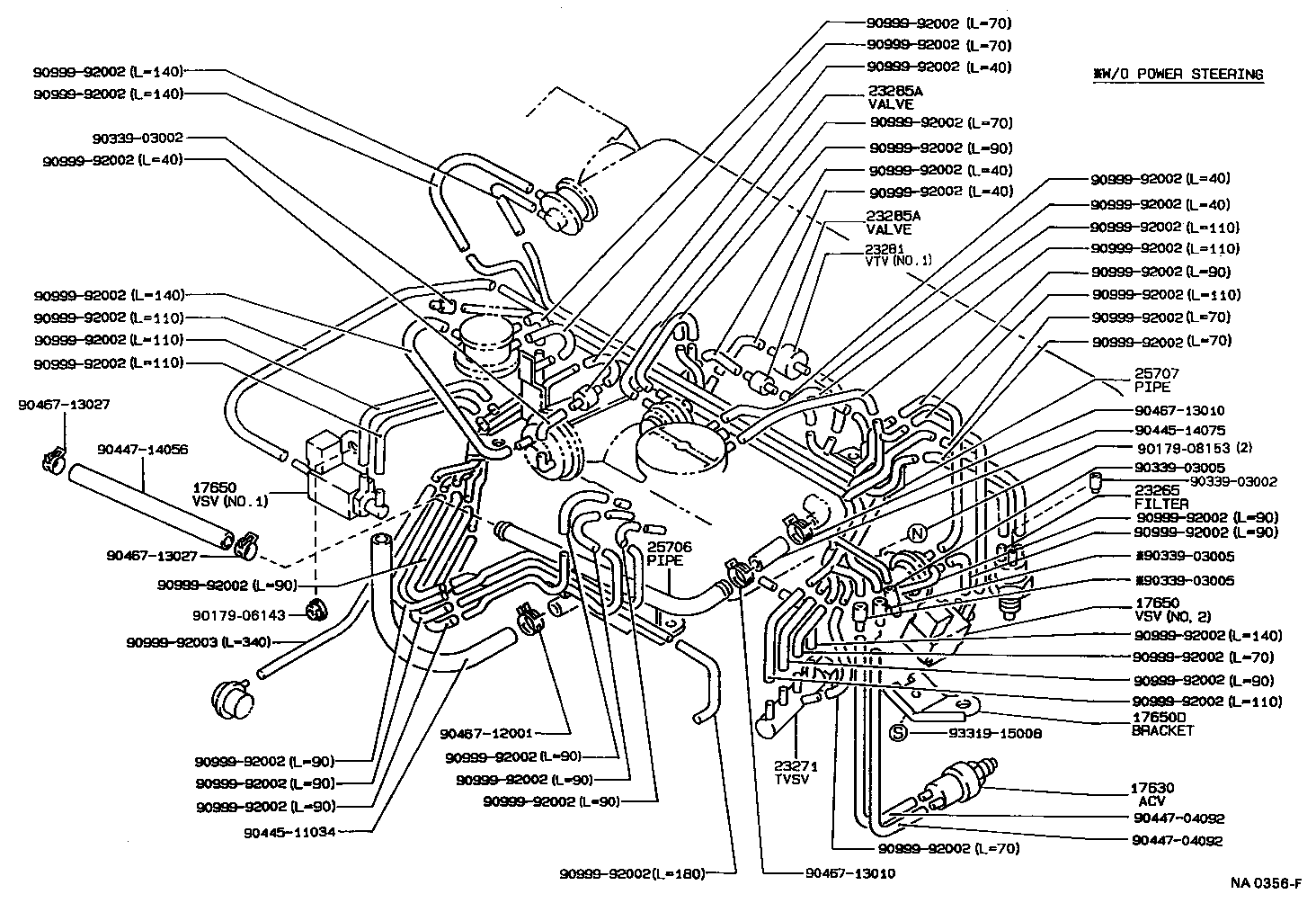

ILLUST NO. 1 OF 2(8712-8911)5AF

Click highlighted areas on diagram

diagram 17630 17650 17650 17650D 23265 23271 23281 23285A 23285A 25706 25707 9017906143 9017908153 9033903002 9033903002 9033903005 9033903005 9033903005 9044511034 9044514075 9044704092 9044704092 9044714056 9046712001 9046713010 9046713010 9046713027 9046713027 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9331915008
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15021

5AF..AT170..EXS,GX,MX

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026

5AF..AT170

NO.1

 1
90910-12055

5AF..AT170

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12026

5AF..AT170

NO.1

 1
90910-12055

5AF..AT170

NO.2

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-15010

5AF..AT170

 1
23265 - FILTER, GAS, NO.1
90917-11023

5AF..AT170

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082

5AF..AT170

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01101

5AF..AT170

 1
90925-03183

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90917-10049

5AF..AT170

 2
23285A - VALVE, CHECK, NO.1
90917-10049

5AF..AT170..MTM

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
90917-10049

5AF..AT170

 2
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16340

5AF..AT170

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16121

5AF..AT170

 1
Common parts
90179-06143
90179-08153
90339-03002
90339-03005
90445-11034
90445-14075
90447-04092
90447-14056
90467-12001
90467-13010
90467-13027
90999-92002
90999-92003
93319-15008
