AT170-AEKRU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT17#,CT170,ST17#

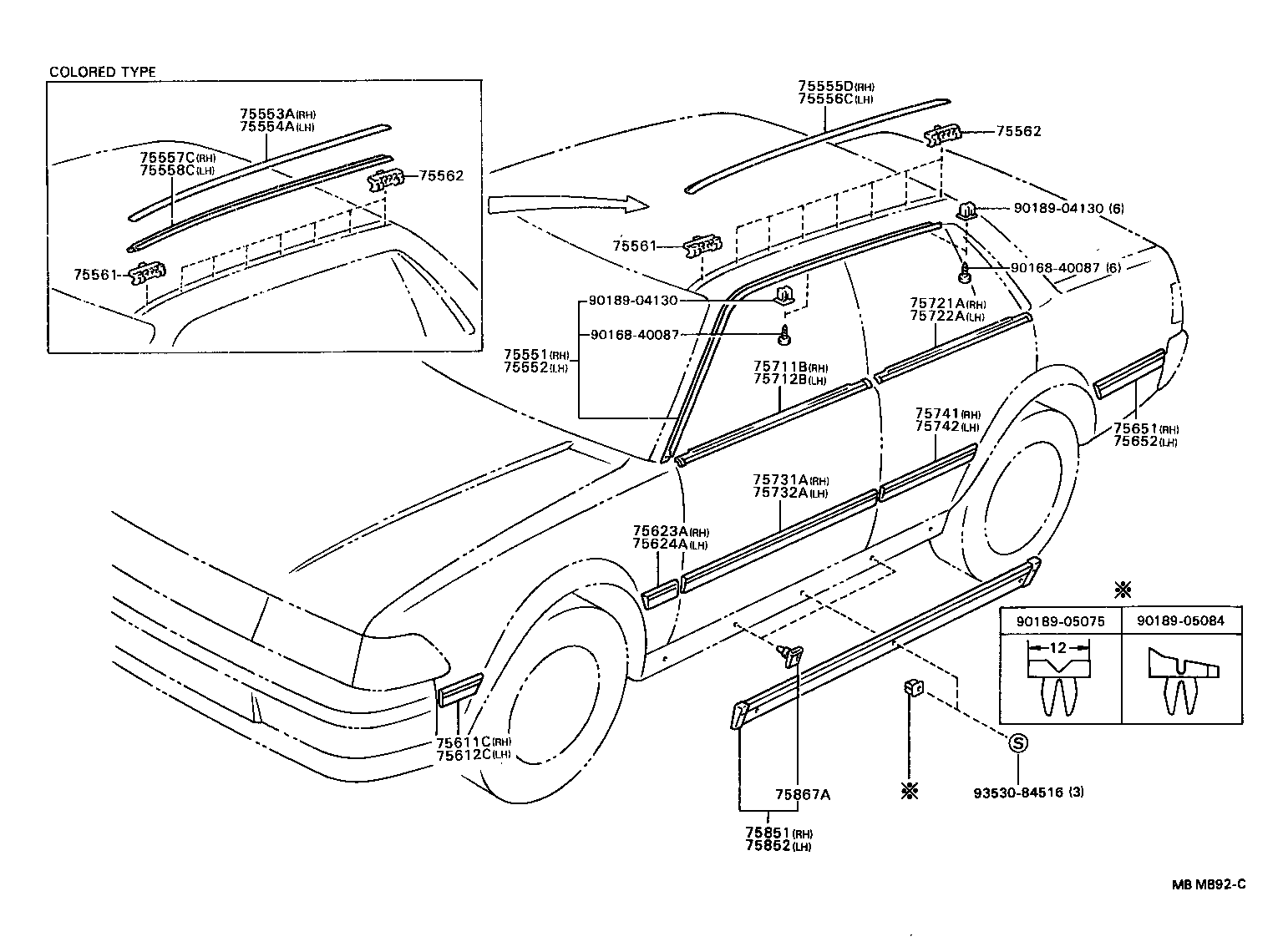

Click highlighted areas on diagram

diagram 75551 75552 75553A 75554A 75555D 75556C 75557C 75558C 75561 75561 75562 75562 75611C 75612C 75623A 75624A 75651 75652 75711B 75712B 75721A 75722A 75731A 75732A 75741 75742 75851 75852 75867A 9016840087 9016840087 9018904130 9018904130 9018905075 9018905084 9353084516
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20280

AT17#,CT170,ST17#..SED

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20280

AT17#,CT170,ST17#..SED

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-20030

AT17#,CT170,ST170..DX,GX,STD

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-20030

AT17#,CT170,ST170..DX,GX,STD

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-20050

AT17#,CT17#,ET176,ST17#

ﾌﾞﾙｰ

 1
75561-20070

AT17#,CT17#,ET176,ST17#

GRAY

 1
75561-20040

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｳﾝ

 2
75561-20060

AT17#,CT17#,ET176,ST17#

GREEN

 1
75561-20080

AT17#,CT17#,ET176,ST17#

ﾚｯﾄﾞ

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-20050

AT17#,CT17#,ET176,ST17#

ﾌﾞﾙｰ

 1
75561-20070

AT17#,CT17#,ET176,ST17#

GRAY

 1
75561-20040

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｳﾝ

 2
75561-20060

AT17#,CT17#,ET176,ST17#

GREEN

 1
75561-20080

AT17#,CT17#,ET176,ST17#

ﾚｯﾄﾞ

 1
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-20050

AT17#,CT17#,ET176,ST17#

VIOLET

 1
75562-20030

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｯｸ

 1
75562-20060

AT17#,CT17#,ET176,ST17#

ORANGE

 1
75562-20040

AT17#,CT17#,ET176,ST17#

ｲｴﾛｰ

 1
75562-20020

AT17#,CT170,ST17#

NATURAL

 18
75562 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75562-20050

AT17#,CT17#,ET176,ST17#

VIOLET

 1
75562-20030

AT17#,CT17#,ET176,ST17#

ﾌﾞﾗｯｸ

 1
75562-20060

AT17#,CT17#,ET176,ST17#

ORANGE

 1
75562-20040

AT17#,CT17#,ET176,ST17#

ｲｴﾛｰ

 1
75562-20020

AT17#,CT170,ST17#

NATURAL

 18
75711B - MOULDING, FRONT DOOR BELT, RH
75711-20230

ET176..DX,GX;AT17#,CT17#,ST17#

 1
75712B - MOULDING, FRONT DOOR BELT, LH
75712-20160

ET176..DX,GX;AT17#,CT17#,ST17#

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-20180

ET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-20180

ET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN

 1
Common parts
90168-40087
90189-04130
90189-05075
90189-05084
93530-84516
