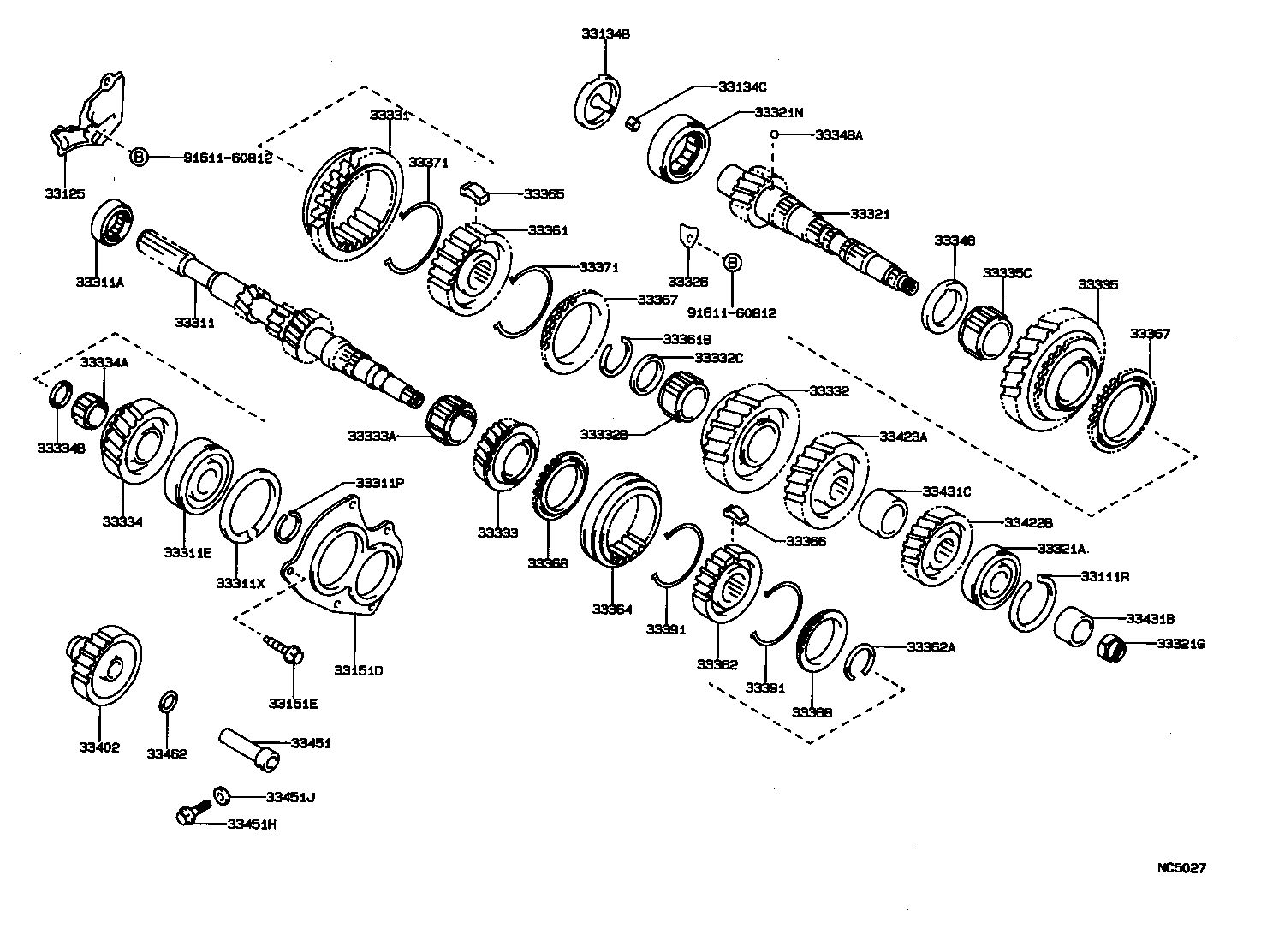

AT170-AEKRU (1987)
Toyota Corona
(8712-9104)4F ; (9104- )ET176..4F
C40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90520-57002 |
AT170,ET176..MTM |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-12010 |
AT170,ET176..MTM |
1 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12021 |
AT170,ET176..MTM |
1 | ||
| 33134C - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT) | ||||
| 90254-10001 |
AT170,CT17#,ET176,ST17#..MTM |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12020 |
AT170,ET176..MTM |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 91611-60820 |
AT170,ET176..MTM |
5 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-12051 |
AT170,ET176..4F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-25021 |
AT170,ET176..MTM |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-25048 |
AT170,ET176..MTM |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-22009 |
AT170,ET176..MTM 厚さ=2.47−2.52,ﾏｰｸ D |
1 | ||
| 90520-22011 |
AT170,ET176..MTM 厚さ=2.59−2.64,ﾏｰｸ F |
1 | ||
| 90520-22006 |
AT170,ET176..MTM 厚さ=2.29−2.34,ﾏｰｸ A |
1 | ||
| 90520-22007 |
AT170,ET176..MTM 厚さ=2.35−2.40,ﾏｰｸ B |
1 | ||
| 90520-22010 |
AT170,ET176..MTM 厚さ=2.53−2.58,ﾏｰｸ E |
1 | ||
| 90520-22008 |
AT170,ET176..MTM 厚さ=2.41−2.46,ﾏｰｸ C |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-64002 |
AT170,ET176..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-12051 |
AT170..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25029 |
AT170,ET176..MTM |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18005 |
AT170,ET176..MTM |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-33005 |
AT170,ET176..MTM |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-12010 |
AT170,ET176..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12020 |
AT170,ET176..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-12010 |
AT170,ET176..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32014 |
AT170,ET176..MTM |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-32008 |
AT170,ET176..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12020 |
AT170,ET176..MTM |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-31002 |
AT170,ET176..MTM |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-12011 |
AT170,ET176..MTM |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-29002 |
AT170,ET176..MTM |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-29001 |
AT170,ET176..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-12010 |
AT170,ET176..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38007 |
AT170,ET176..MTM |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12010 |
AT170,ET176..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90360-05012 |
AT170,ET176..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12030 |
AT170,ET176..MTM |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29019 |
AT170,ET176..MTM 厚さ=2.56−2.61,ﾏｰｸ B |
1 | ||
| 90520-29021 |
AT170,ET176..MTM 厚さ=2.68−2.73,ﾏｰｸ D |
1 | ||
| 90520-29020 |
AT170,ET176..MTM 厚さ=2.62−2.67,ﾏｰｸ C |
1 | ||
| 90520-29018 |
AT170,ET176..MTM 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-29023 |
AT170,ET176..MTM 厚さ=2.80−2.85,ﾏｰｸ F |
1 | ||
| 90520-29022 |
AT170,ET176..MTM 厚さ=2.74−2.79,ﾏｰｸ E |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12020 |
AT170,ET176..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-27050 |
AT170,ET176..MTM 厚さ=2.54−2.59,ﾏｰｸ 4 |
1 | ||
| 90520-27048 |
AT170,ET176..MTM 厚さ=2.42−2.47,ﾏｰｸ 2 |
1 | ||
| 90520-27051 |
AT170,ET176..MTM 厚さ=2.60−2.65,ﾏｰｸ 5 |
1 | ||
| 90520-27049 |
AT170,ET176..MTM 厚さ=2.48−2.53,ﾏｰｸ 3 |
1 | ||
| 90520-27046 |
AT170,ET176..MTM 厚さ=2.30−2.35,ﾏｰｸ 0 |
1 | ||
| 90520-27047 |
AT170,ET176..MTM 厚さ=2.36−2.41,ﾏｰｸ 1 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12010 |
AT170,ET176..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
AT170,ET176..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12020 |
AT170,ET176..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,ET176..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12031 |
AT170,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,ET176..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12020 |
AT170,ET176..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,ET176..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
AT170,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,ET176..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
AT170,ET176..MTM |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-12021 |
AT170,ET176..MTM |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12010 |
AT170,ET176..MTM |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12010 |
AT170,ET176..MTM |
1 | ||
| 33431B - SPACER, OUTPUT SHAFT | ||||
| 33431-12020 |
AT170,ET176..4F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12010 |
AT170,ET176..MTM |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12021 |
AT170,ET176..MTM |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90109-08097 |
AT170,ET176..MTM |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AT17#,ET176..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-12010 |
AT170,ET176..MTM |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
