AT170-AEKNU (1987)

Toyota Corona

Production Dec 1987 - Nov 1989
Engine 5AF
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT17#,CT170,ST17#

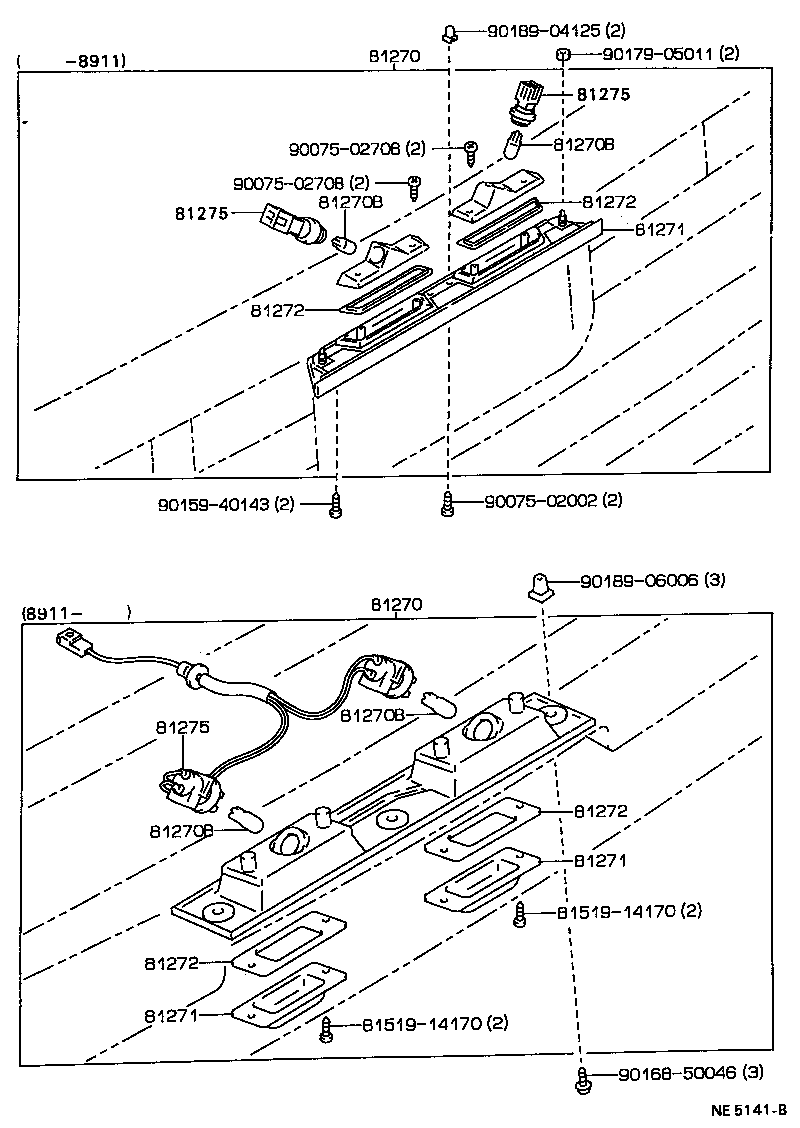

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81271 81272 81272 81272 81272 81275 81275 81275 8151914170 8151914170 9007502002 9007502708 9007502708 9015940143 9016850046 9017905011 9018904125 9018906006
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-20380

AT17#,CT170,ST17#..SED

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-20380

AT17#,CT170,ST17#..SED

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST17#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST17#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST17#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT17#,CT17#,ET176,ST17#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-20380

AT17#,CT170,ST17#..SED

 1
81271 - LENS, LICENSE PLATE LAMP
81271-20380

AT17#,CT170,ST17#..SED

 1
81271 - LENS, LICENSE PLATE LAMP
81271-20380

AT17#,CT170,ST17#..SED

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-20380

AT17#,CT170,ST17#..SED

右側

 1
81277-20380

AT17#,CT170,ST17#..SED

左側

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-20380

AT17#,CT170,ST17#..SED

右側

 1
81277-20380

AT17#,CT170,ST17#..SED

左側

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-20380

AT17#,CT170,ST17#..SED

右側

 1
81277-20380

AT17#,CT170,ST17#..SED

左側

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81276-20380

AT17#,CT170,ST17#..SED

右側

 1
81277-20380

AT17#,CT170,ST17#..SED

左側

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

AT17#,CT170,ST17#

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

AT17#,CT170,ST17#

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

AT17#,CT170,ST17#

 2
Common parts
81519-14170
90075-02002
90075-02708
90159-40143
90168-50046
90179-05011
90189-04125
90189-06006
