AT170-AEKNK (1989)
Toyota Corona

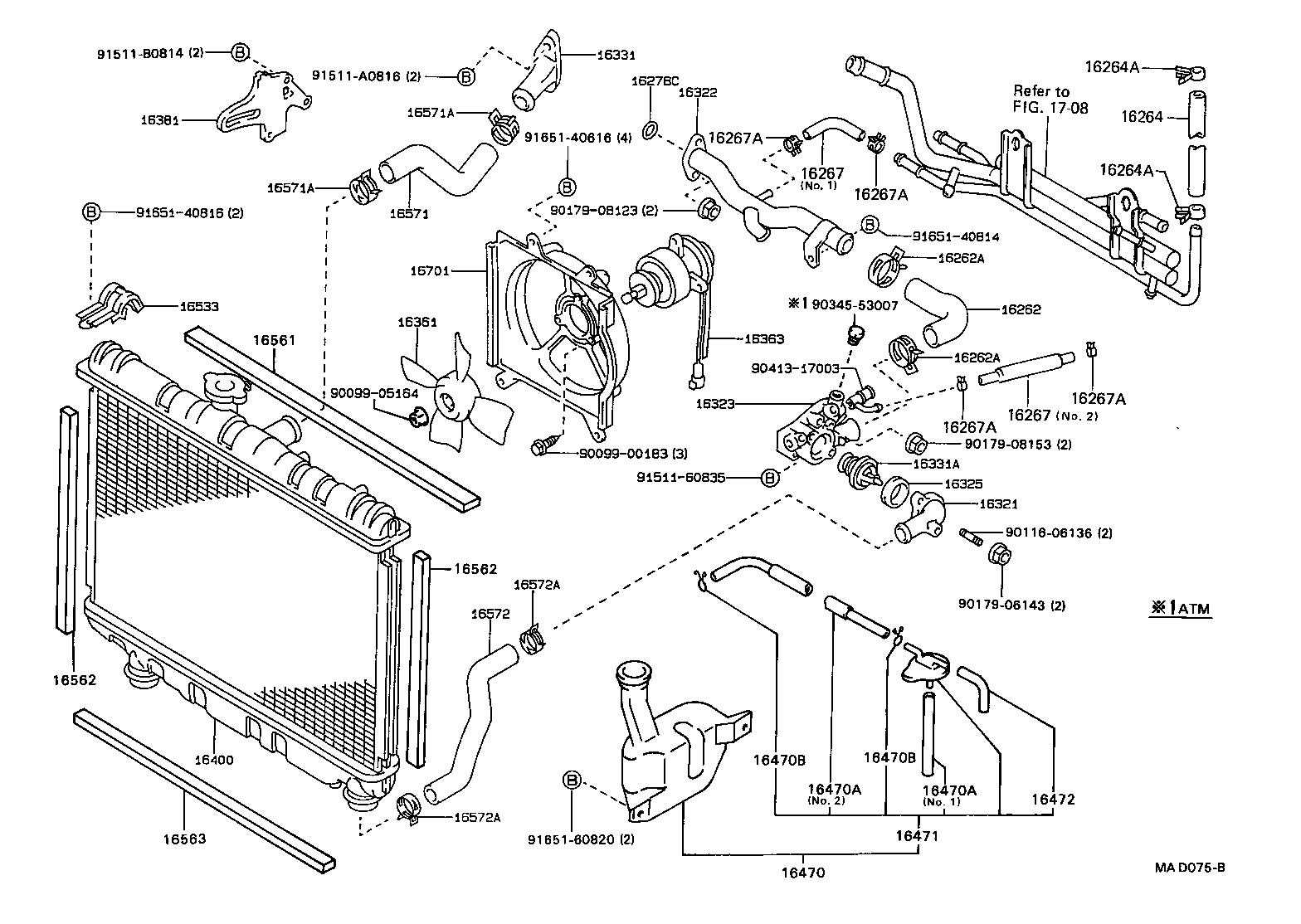

ILLUST NO. 1 OF 2(8911- )5AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15030 |
5AF#..AT170..4F..GX |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
5AF#..AT170..4F..GX |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-36001 |
5AF#..AT170..4F..GX |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-16050 |
5AFE..AT170 |
1 | ||
| 16264-16050 |
5AFE..AT170 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
4AFE,5AFE..AT17# |
2 | ||
| 90467-13001 |
4AFE,5AFE..AT17# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
4AFE,5AFE..AT17# |
2 | ||
| 90467-13001 |
4AFE,5AFE..AT17# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-16050 |
5AFE..AT170 NO.1 |
1 | ||
| 16267-16040 |
5AFE..AT170 NO.1 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16264-16050 |
5AFE..AT170 NO.1 |
1 | ||
| 16267-16040 |
5AFE..AT170 NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5AFE..AT170 |
4 | ||
| 96135-41300 |
5AFE..AT170 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5AFE..AT170 |
4 | ||
| 96135-41300 |
5AFE..AT170 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5AFE..AT170 |
4 | ||
| 96135-41300 |
5AFE..AT170 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5AFE..AT170 |
4 | ||
| 96135-41300 |
5AFE..AT170 |
4 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
5AF#..AT170..4F..GX |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15020 |
5AF#..AT170..4F..GX |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15020 |
4AFE,5AF..AT17# |
1 | ||
| 16322-15040 |
4AFE,5AFE..AT17# |
1 | ||
| 16322-15041 |
4AFE,5AFE..AT17# |
1 | ||
| 16322-15020 |
4AFE,5AFE..AT17# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15060 |
5AF..AT170 |
1 | ||
| 16323-15080 |
5AFE..AT170..MTM |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AFE,5AF..AT17# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
5AF..AT170..MTM;4AFE,5AFE..AT17# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AFE,5AF..AT17# *WAX 82−95 |
1 | ||
| 16361 - FAN | ||||
| 16361-15080 |
5AF#..AT170..MTM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-10010 |
5AF..AT170..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15060 |
4AFE,5AF#..AT17# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15360 |
5AF#..AT170..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74090 |
5AFE..AT170 |
1 | ||
| 16470-15050 |
5AF..AT170 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33466 |
5AFE..AT170 *H,L=210,NO.2 |
1 | ||
| 90099-33534 |
5AF..AT170 長さ=1000,NO.1 |
1 | ||
| 90445-12078 |
5AFE..AT170 長さ=600,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33466 |
5AFE..AT170 *H,L=210,NO.2 |
1 | ||
| 90099-33534 |
5AF..AT170 長さ=1000,NO.1 |
1 | ||
| 90445-12078 |
5AFE..AT170 長さ=600,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,5AF#..AT17# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,5AF#..AT17# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15060 |
5AF..AT170 |
1 | ||
| 16405-74060 |
5AFE..AT170 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
5AF..AT170 |
1 | ||
| 85338-74040 |
5AFE..AT170 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15110 |
4AFE,5AF#..AT17# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-74010 |
4AFE,5AF..AT17# |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-74010 |
5AF..AT170 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-74010 |
5AF..AT170 |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-74010 |
4AFE,5AF..AT17# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15150 |
5AF#..AT170 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,5AF#..AT17# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,5AF#..AT17# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15200 |
4AFE,5AF#..AT17# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,5AF#..AT17# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,5AF#..AT17# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15220 |
5AF#..AT170..MTM |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90116-06136 | ||||
| 90179-06143 | ||||
| 90179-08123 | ||||
| 90179-08153 | ||||
| 90345-53007 | ||||
| 90413-17003 | ||||
| 91511-60835 | ||||
| 91511-A0816 | ||||
| 91511-B0814 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
